ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1801- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 55900 9356855014 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-10610

ZGX10..D,G

 1
55900-10620

ZGX10..E,G

CANADA SPEC

 1
55900-10600

ZGX10..E

 1
55900-10630

ZGX10..D

CANADA SPEC

 1
Common parts
93568-55014

ILLUST NO. 3 OF 3(1801- )

Click highlighted areas on diagram

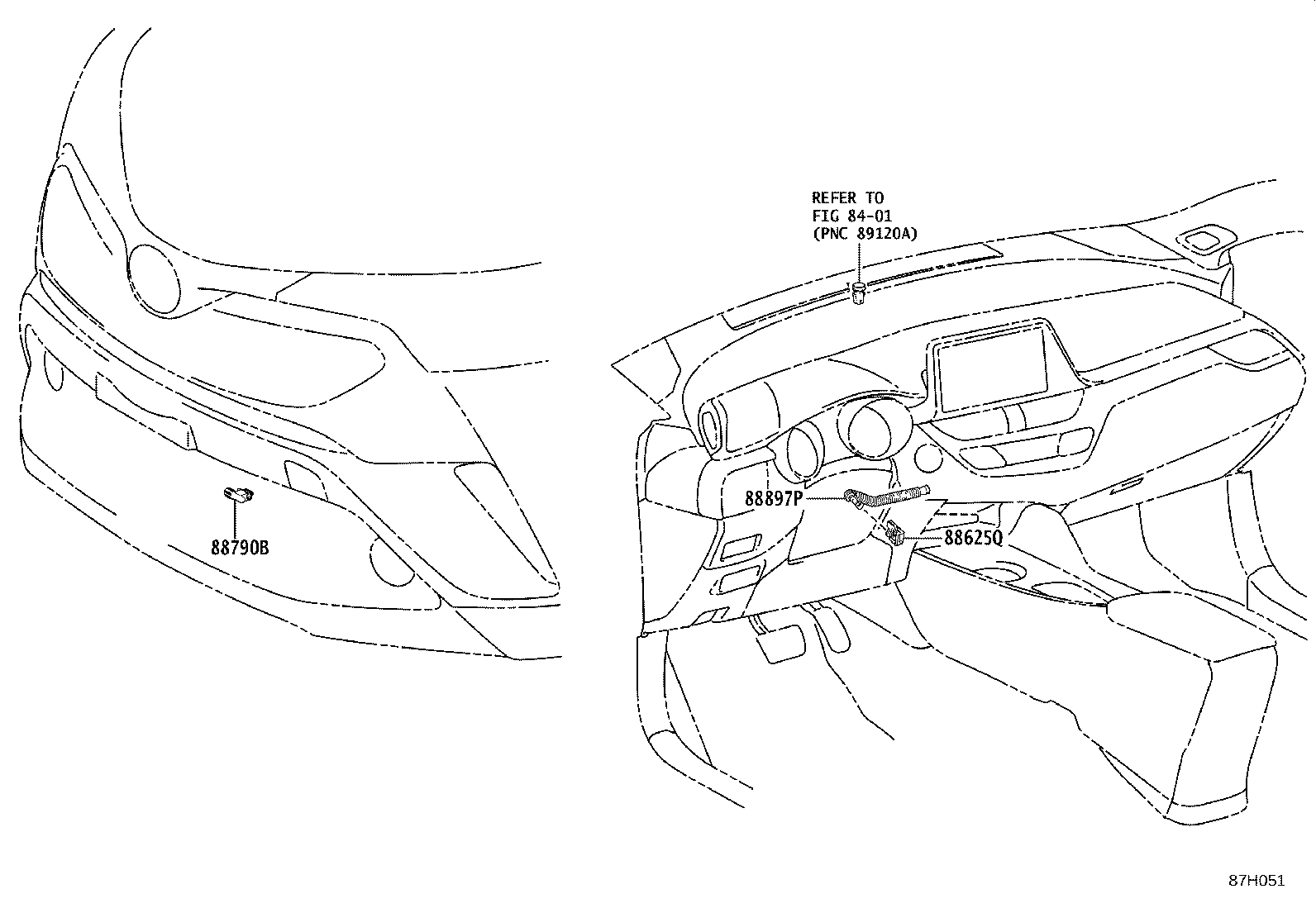

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZGX10

 1
88790B - THERMISTOR ASSY
88790-28100

ZGX10

 1
88897P - ASPIRATOR
88505-10020

ZGX10

 1
Linked diagrams
8401

ILLUST NO. 2 OF 3(1910- )

Click highlighted areas on diagram

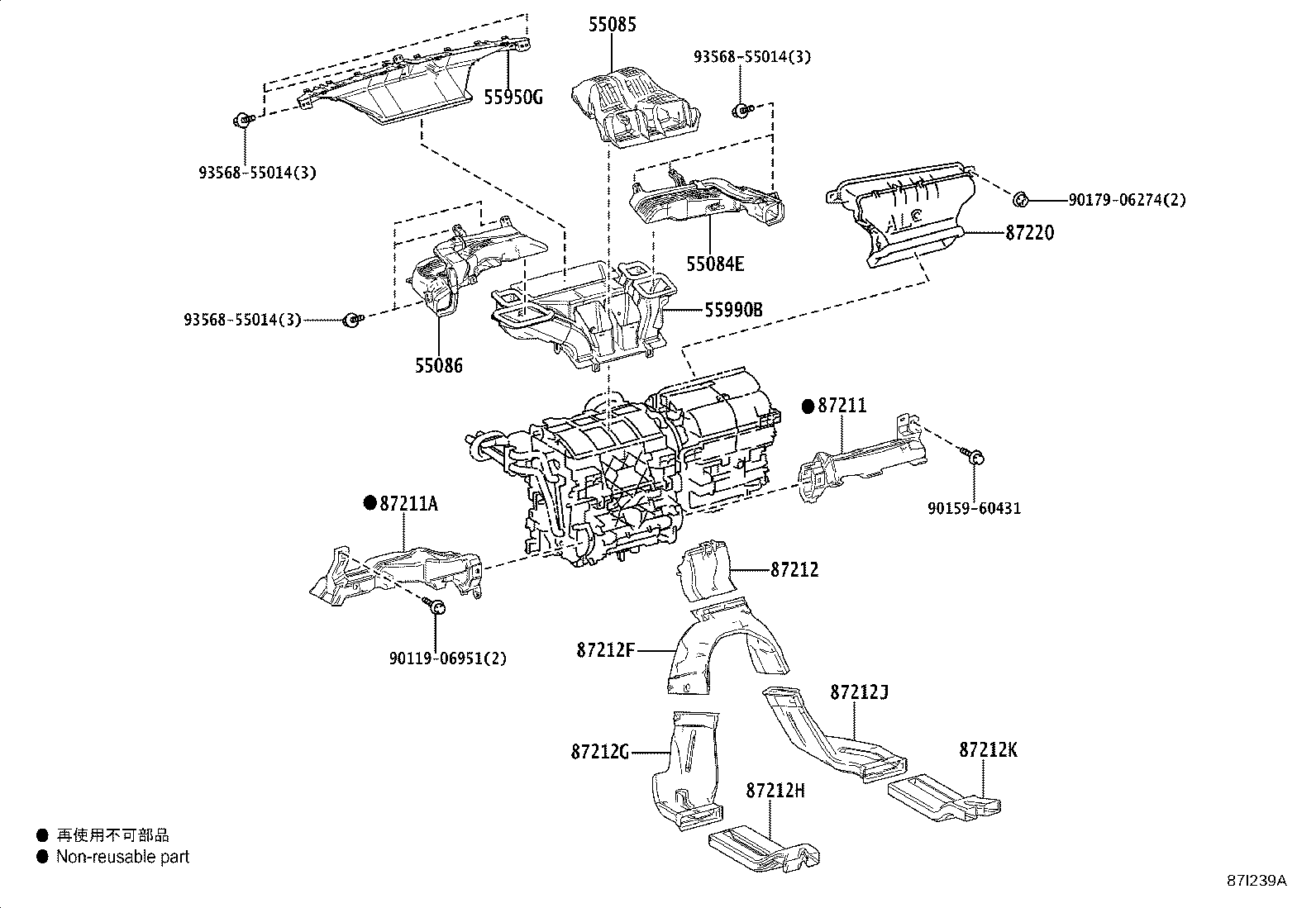

AIR DUCT

diagram 55084E 55085 55086 55950G 55990B 87211 87211A 87212 87212F 87212G 87212H 87212J 87212K 87220 9011906951 9015960431 9017906274 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55086-10110

ZGX10

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-10070

ZGX10

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55084-10040

ZGX10

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-10070

ZGX10

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-10020

ZGX10

 1
87211 - DUCT, AIR, NO.1
87211-47200

ZGX10

 1
87211A - DUCT, AIR, NO.2
87211-10140

ZGX10

 1
87212 - DUCT, AIR, REAR NO.1
87413-10060

ZGX10

 1
87212F - DUCT, AIR, REAR NO.2
87215-47030

ZGX10

 1
87212G - DUCT, AIR, REAR NO.3
87213-47050

ZGX10

 1
87212H - DUCT, AIR, REAR NO.4
87217-10060

ZGX10

 1
87212J - DUCT, AIR, REAR NO.5
87212-47040

ZGX10

 1
87212K - DUCT, AIR, REAR NO.6
87216-10010

ZGX10

 1
87220 - DUCT ASSY, AIR
87220-10080

ZGX10

 1
Common parts
90119-06951
90159-60431
90179-06274
93568-55014
