ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

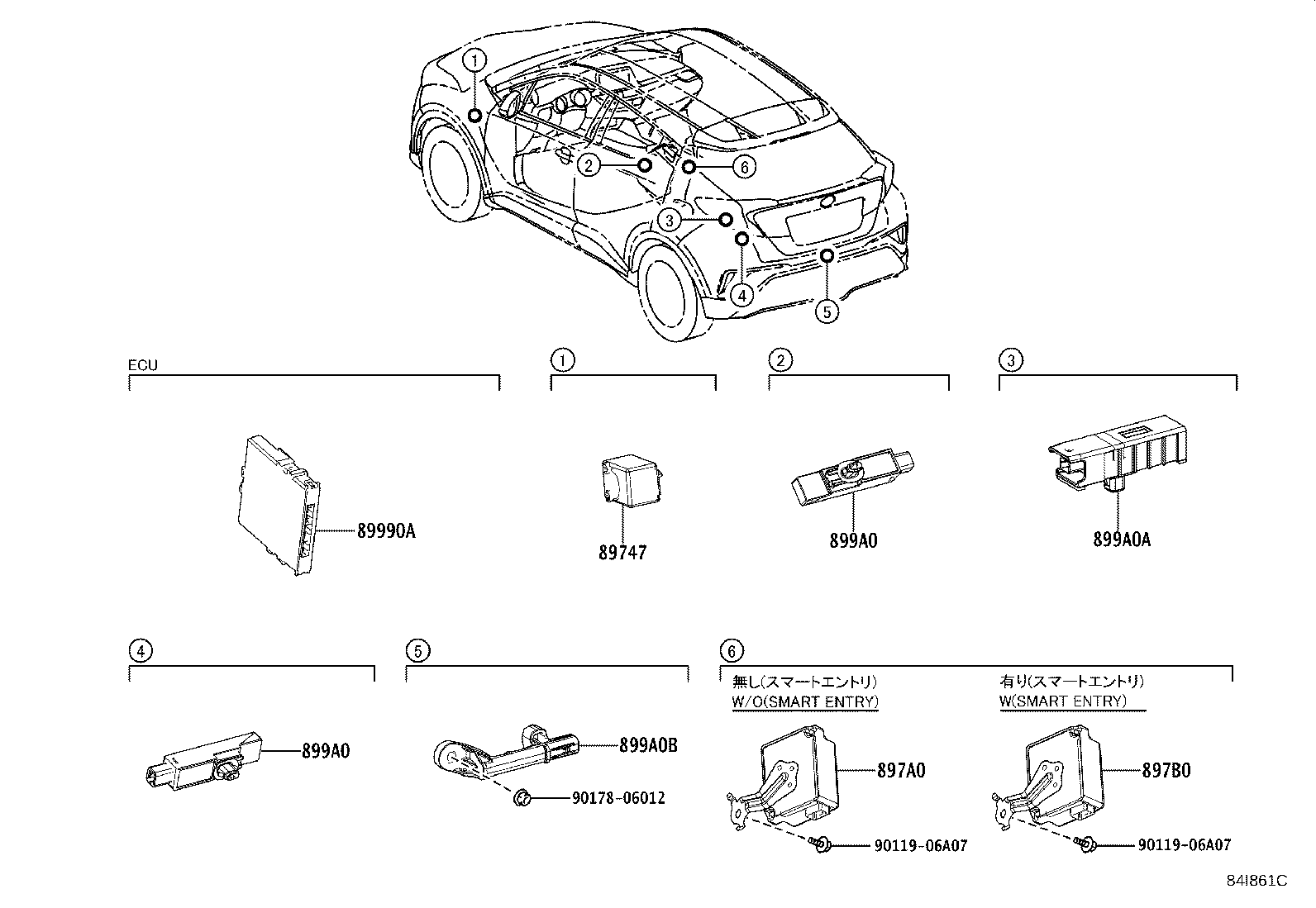

Click highlighted areas on diagram

diagram 89747 897A0 897B0 89990A 899A0 899A0 899A0A 899A0B 9011906A07 9011906A07 9017806012
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ZGX10

 1
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897A0-10041

ZGX10..D

 1
897B0 - RECEIVER ASSY, ELECTRICAL KEY & TPMS
897B0-10030

ZGX10..E,G

 1
89990A - COMPUTER ASSY, SMART KEY
89990-10062

ZGX10..E,G

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

ZGX10..E,G

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

ZGX10..E,G

 2
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
89997-30100

ZGX10..E,G

 1
Common parts
90119-06A07
90178-06012
