ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

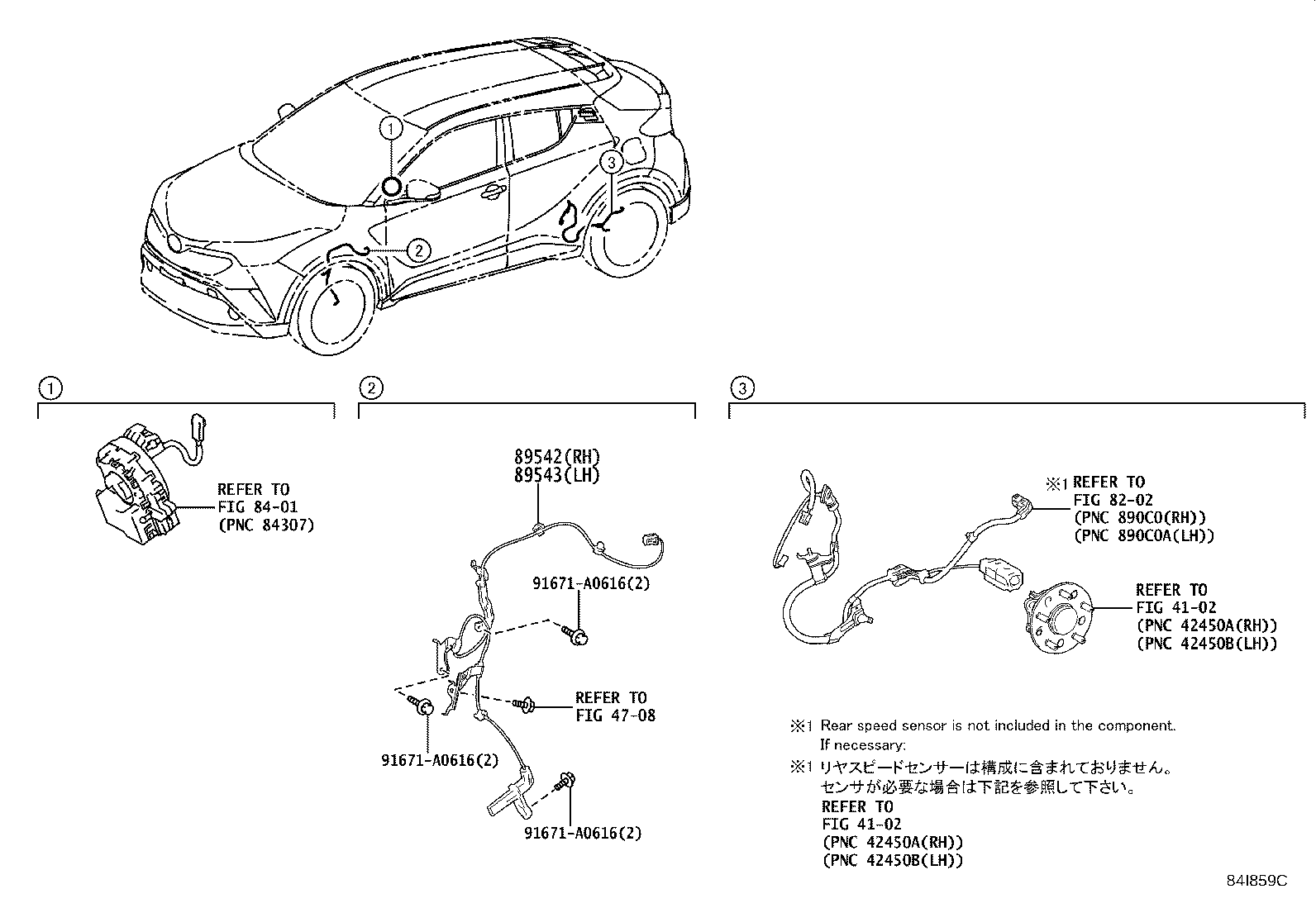

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-12130 |
ZGX10 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-12130 |
ZGX10 |
1 | ||
| Common parts | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4708 | ||||
| 8202 | ||||
| 8401 | ||||
