ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

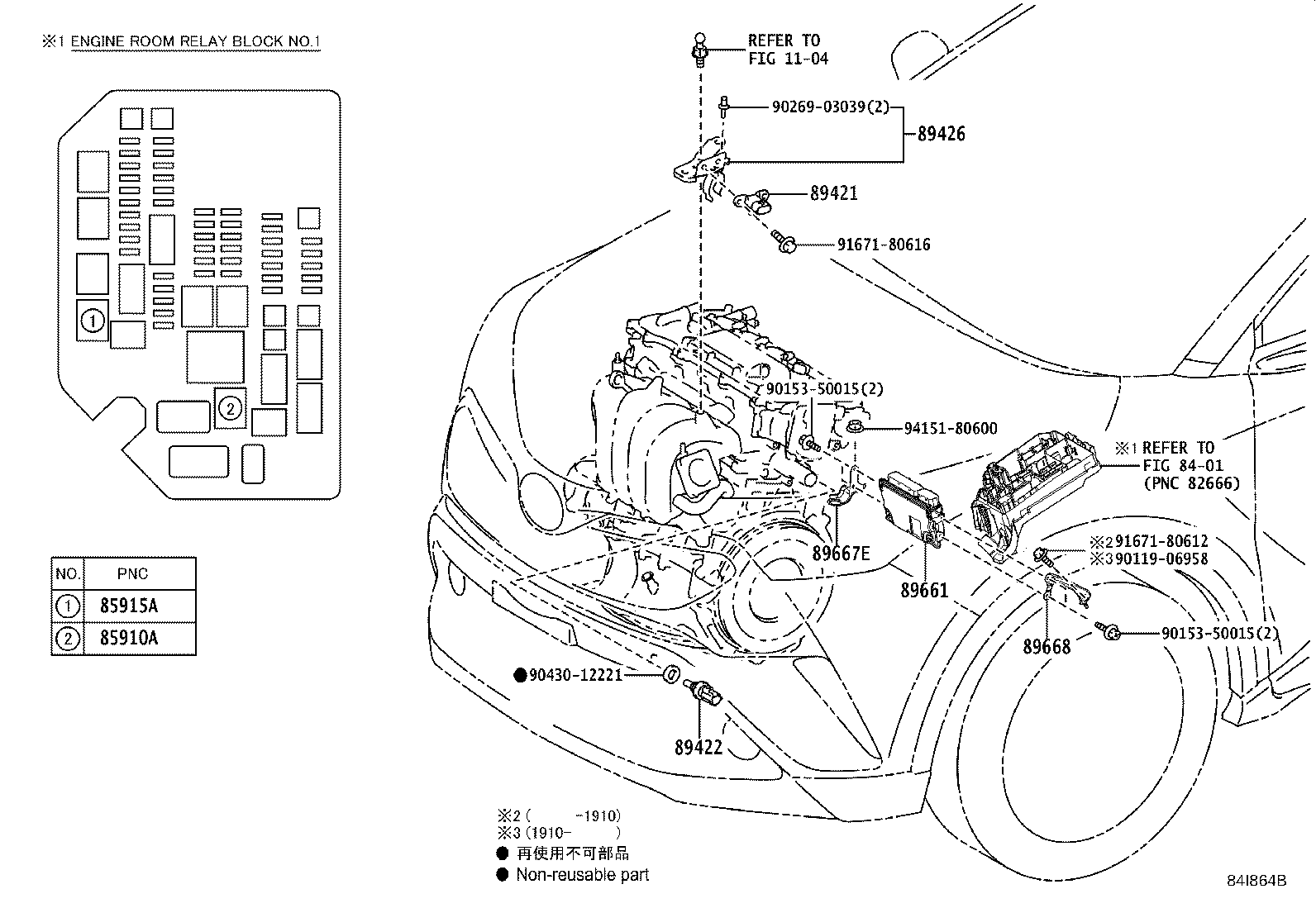

Click highlighted areas on diagram

diagram 1104 8401 85910A 85915A 89421 89422 89426 89661 89667E 89668 9011906958 9015350015 9015350015 9026903039 9043012221 9167180612 9167180616 9415180600
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

ZGX10

 1
85915A - RELAY, MAIN
90987-02027

ZGX10

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZGX10

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZGX10

 1
89426 - BRACKET, VACUUM SENSOR
89426-13020

ZGX10

 1
89661 - COMPUTER, ENGINE CONTROL
89661-10440

ZGX10

DENSO,MARK 89661-10410

 1
89661-10310

ZGX10

DENSO,MARK 89661-10410

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-12360

ZGX10

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12290

ZGX10

 1
Common parts
90119-06958
90153-50015
90269-03039
90430-12221
91671-80612
91671-80616
94151-80600
Linked diagrams
1104
8401
