ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
ILLUST NO. 6 OF 9(1801- )

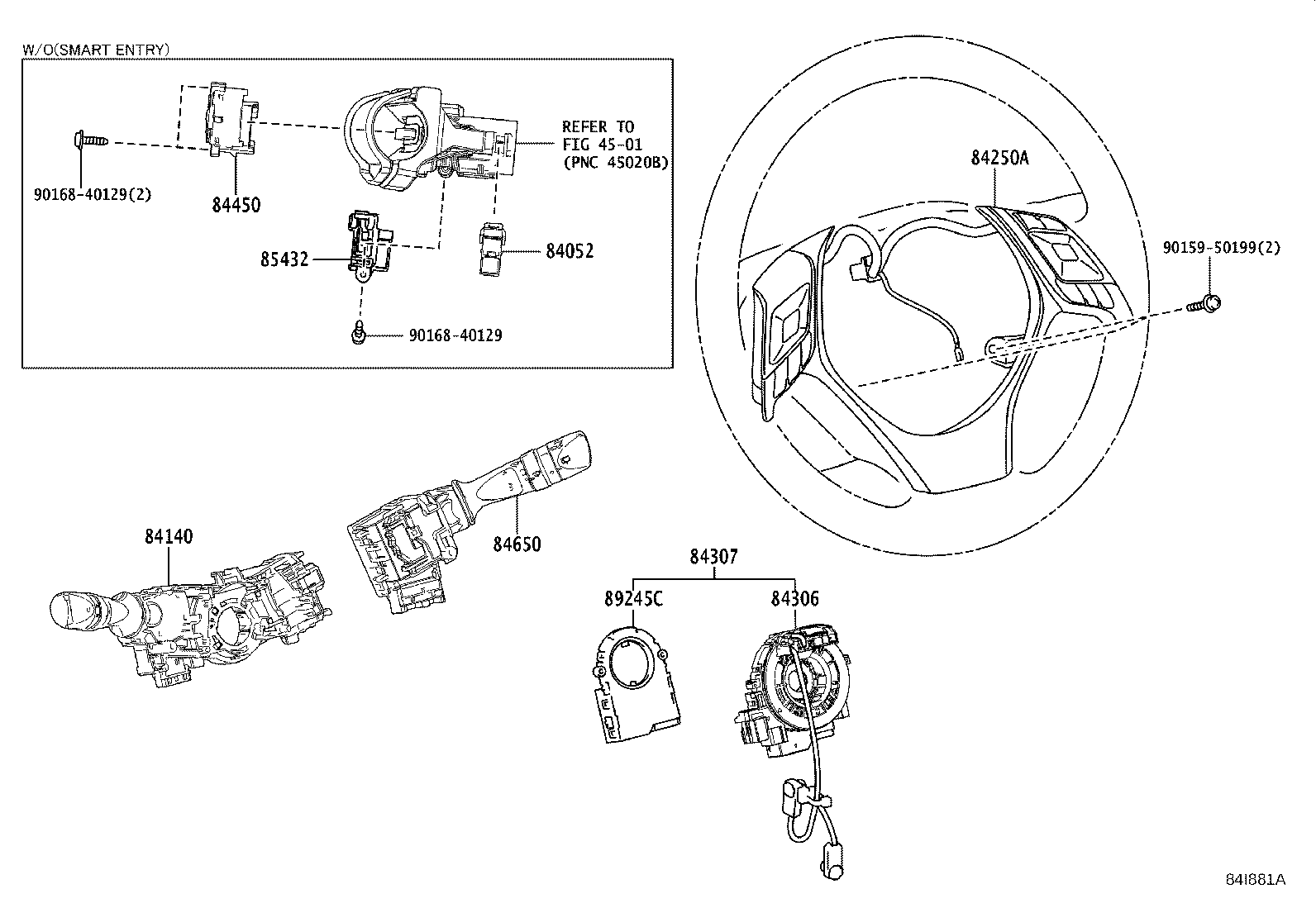

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZGX10..D |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10220 |
ZGX10..D,G CANADA SPEC |
1 | ||
| 84140-62020 |
ZGX10..D,G |
1 | ||
| 84140-42140 |
ZGX10..E |
1 | ||
| 84140-10230 |
ZGX10..E CANADA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-10050 |
ZGX10 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-10020 |
ZGX10 |
1 | ||
| 84308-10030 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-10020 |
ZGX10 |
1 | ||
| 84307-10030 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12320 |
ZGX10..D |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A860 |
ZGX10 CANADA SPEC |
1 | ||
| 84652-42160 |
ZGX10 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
ZGX10..D |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-10010 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 9(1801- )

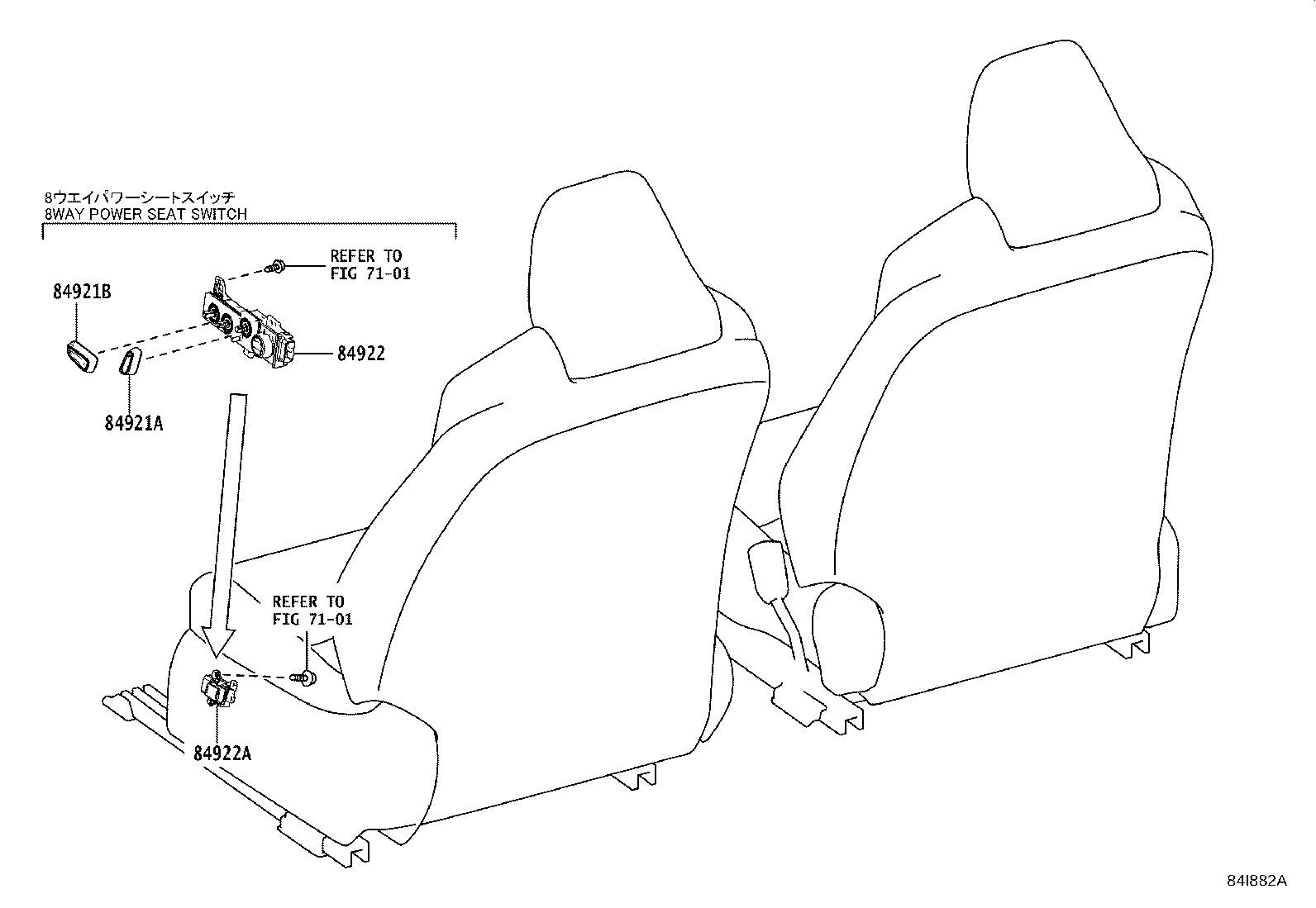

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33210C0 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-47010 |
ZGX10..G SEAT HEATER-WITH |
1 | ||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 8 OF 9(1801- )

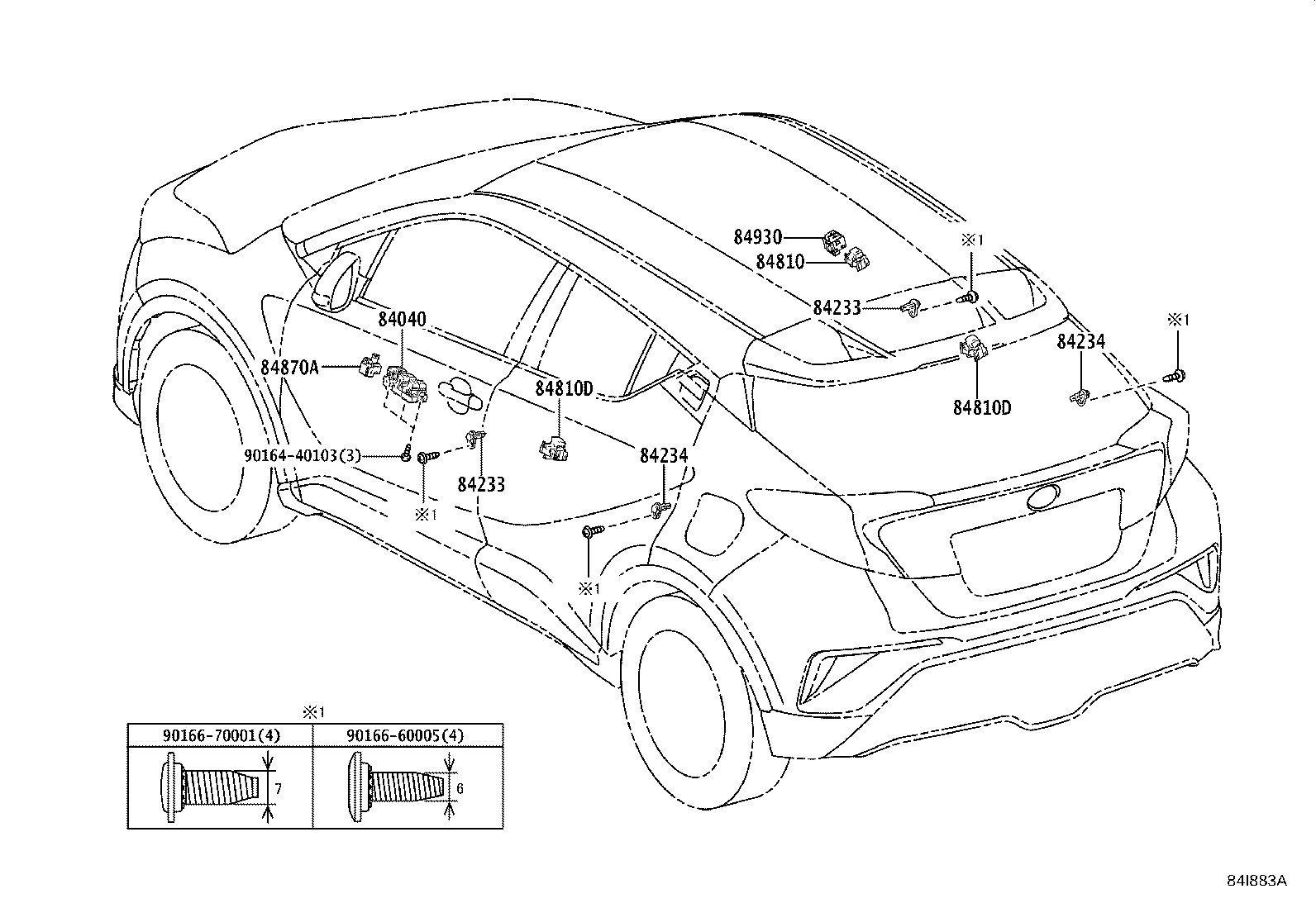

DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12210 |
ZGX10..E |
1 | ||
| 84040-10040 |
ZGX10..D,G |
1 | ||
| 84040-47090 |
ZGX10..D,G |
1 | ||
| 84040-12240 |
ZGX10..E |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
ZGX10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30380 |
ZGX10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZGX10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZGX10 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
ZGX10..E |
1 | ||
| 84810-26040 |
ZGX10..D,G |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
ZGX10..E |
2 | ||
| 84810-26040 |
ZGX10..D,G |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
ZGX10..E |
2 | ||
| 84810-26040 |
ZGX10..D,G |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12150 |
ZGX10..D |
1 | ||
| 84872-12190 |
ZGX10..E,G |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12270 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
ILLUST NO. 1 OF 9(1801- )

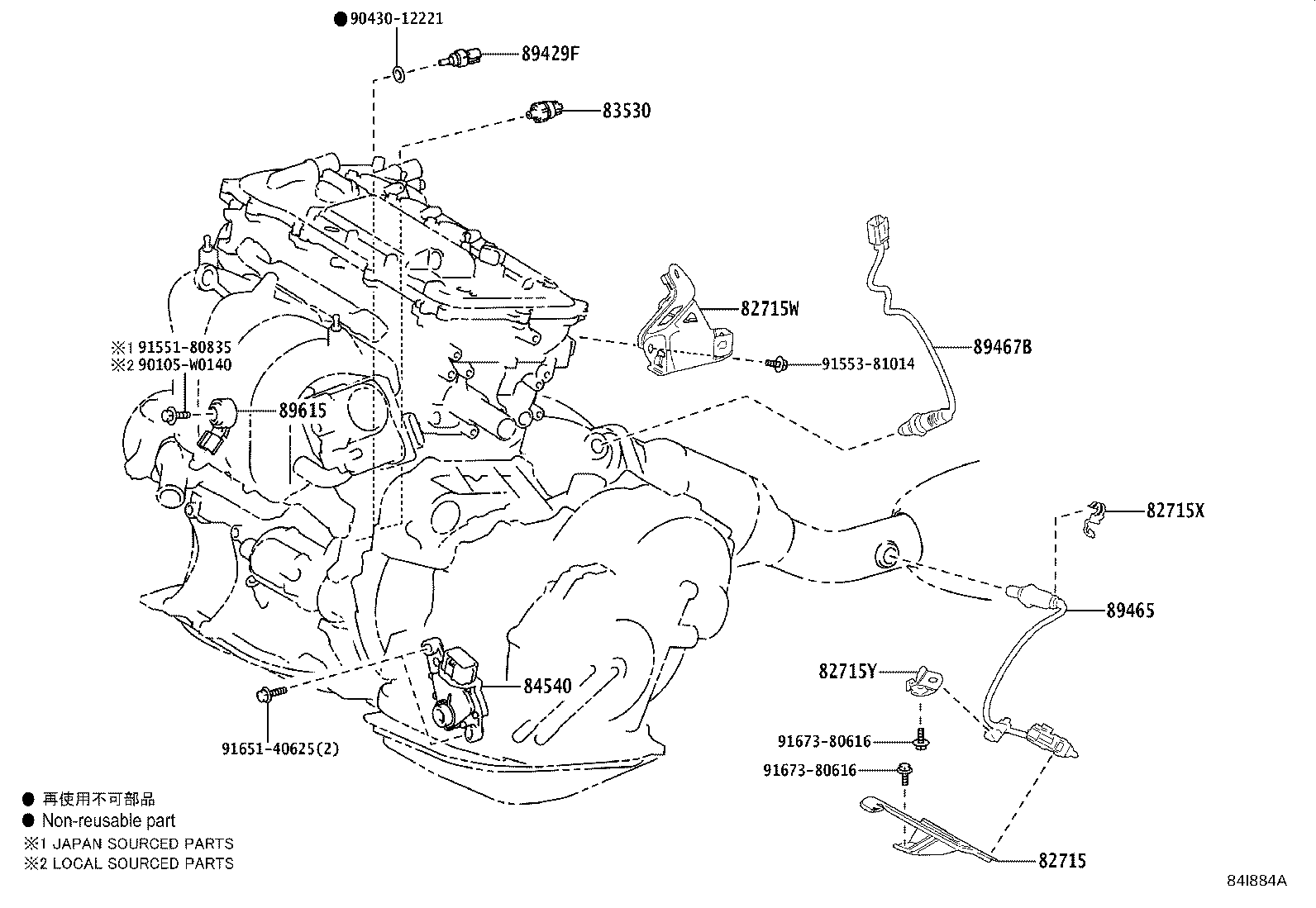

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-10330 |
ZGX10 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-F4200 |
ZGX10 |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-44510 |
ZGX10 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-47690 |
ZGX10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZGX10 DENSO |
1 | ||
| 83530-60020 |
ZGX10 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-28030 |
ZGX10 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZGX10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10080 |
ZGX10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12260 |
ZGX10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90105-W0140 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||
| 91673-80616 | ||||
ILLUST NO. 9 OF 9(1801- )

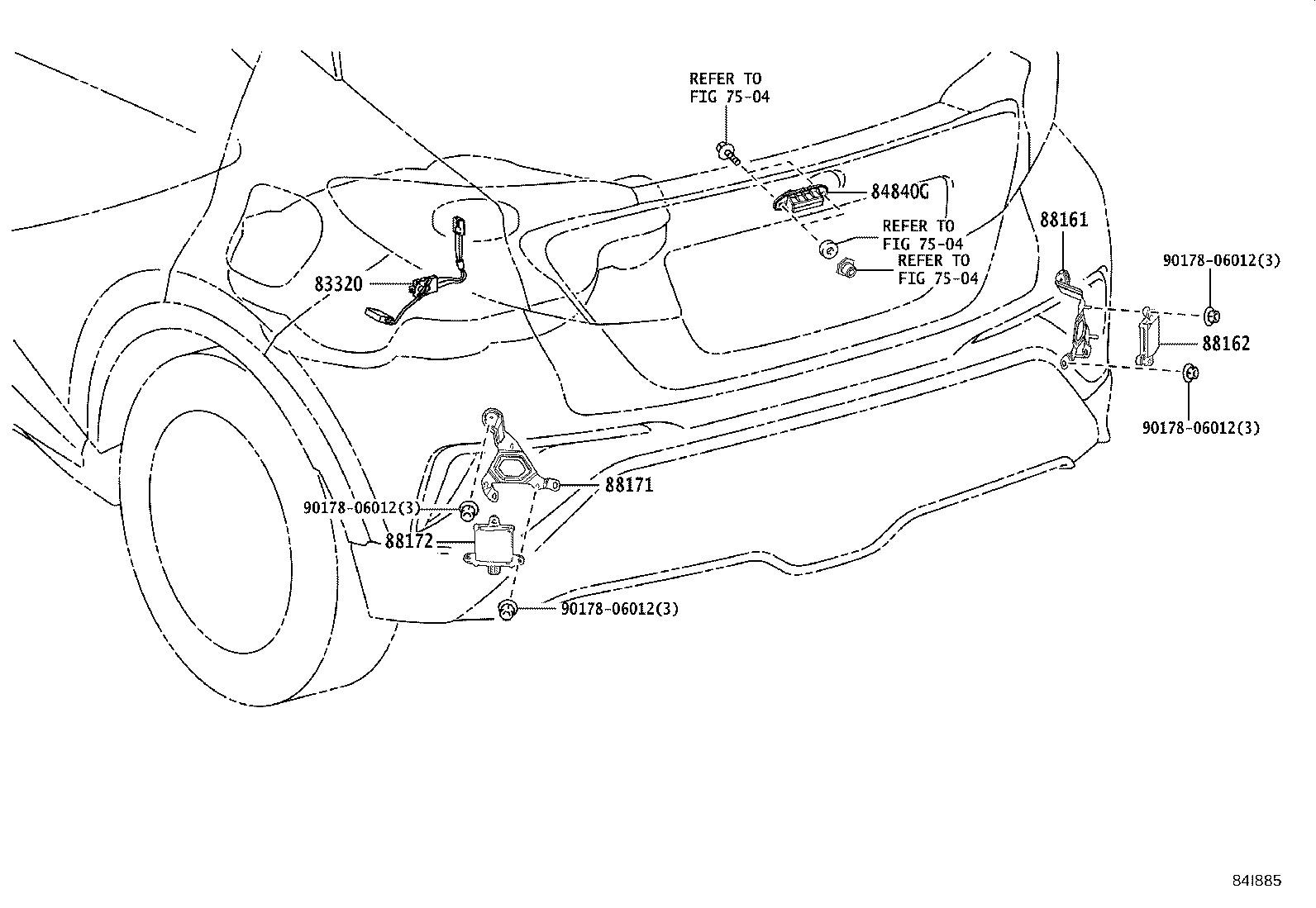

FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
ZGX10 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
ZGX10..D |
1 | ||
| 84840-47040 |
ZGX10..E,G |
1 | ||
| 88161 - BRACKET, BLIND SPOT MONITOR, RH | ||||
| 88161-10020 |
ZGX10..E,G |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-F4030 |
ZGX10..E,G |
1 | ||
| 88162-F4031 |
ZGX10..E,G |
1 | ||
| 88171 - BRACKET, BLIND SPOT MONITOR, LH | ||||
| 88171-10020 |
ZGX10..E,G |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-F4030 |
ZGX10..E,G |
1 | ||
| 88162-F4031 |
ZGX10..E,G |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 7504 | ||||
ILLUST NO. 2 OF 9(1801- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-F4010 |
ZGX10 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-10010 |
ZGX10 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-K0010 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-06951 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 9(1801- )

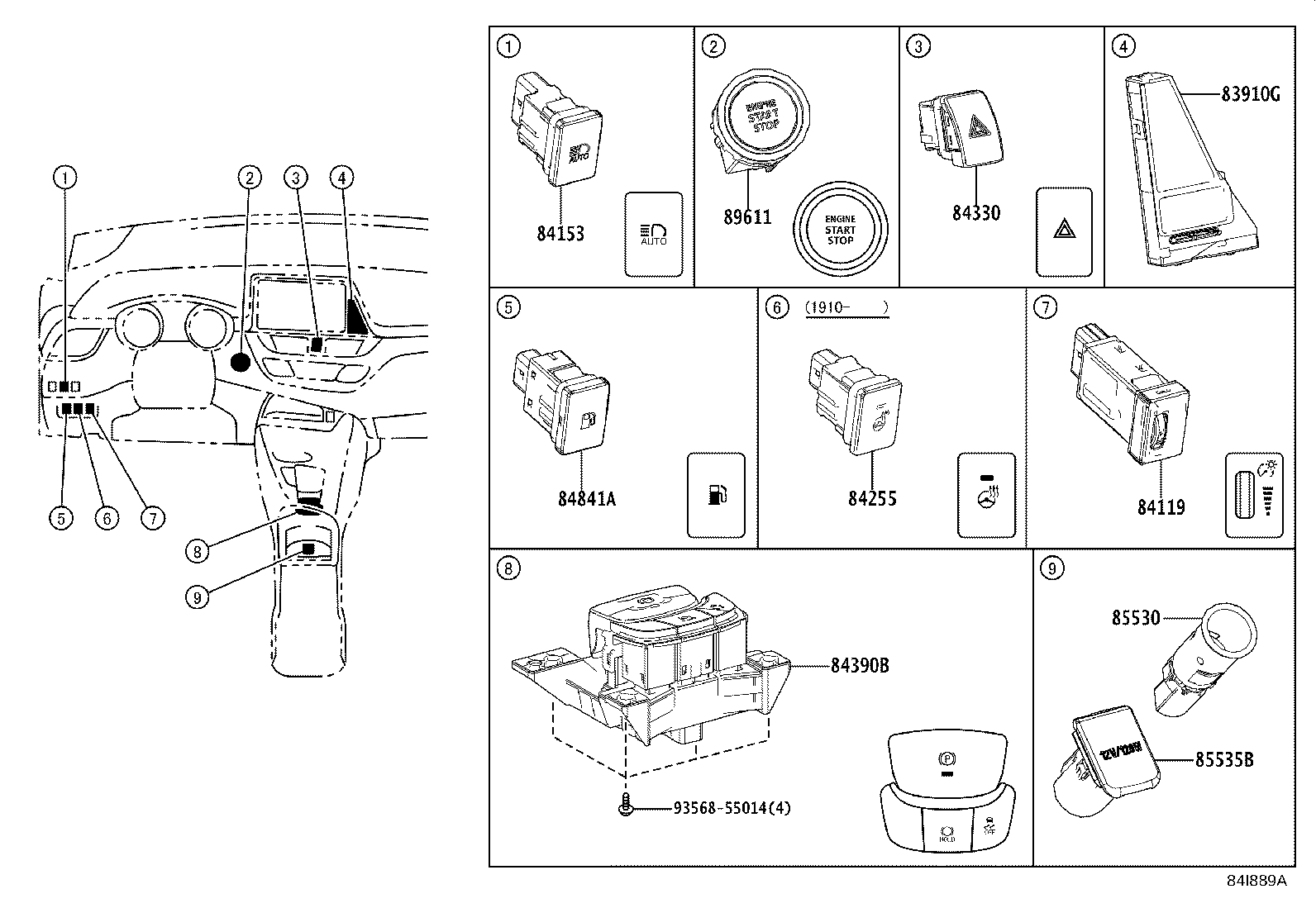

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-10270 |
ZGX10 CANADA SPEC |
1 | ||
| 83910-10260 |
ZGX10 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42021 |
ZGX10 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-20010 |
ZGX10 |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-10010 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10200 |
ZGX10 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-10170 |
ZGX10..D |
1 | ||
| 84390-10150 |
ZGX10..E,G |
1 | ||
| 84390-10171 |
ZGX10..D |
1 | ||
| 84390-10151 |
ZGX10..E,G |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-10020 |
ZGX10 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZGX10 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12090C2 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 85535-12090C2 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 85535-12090C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
ZGX10..E,G |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 9(1801- )

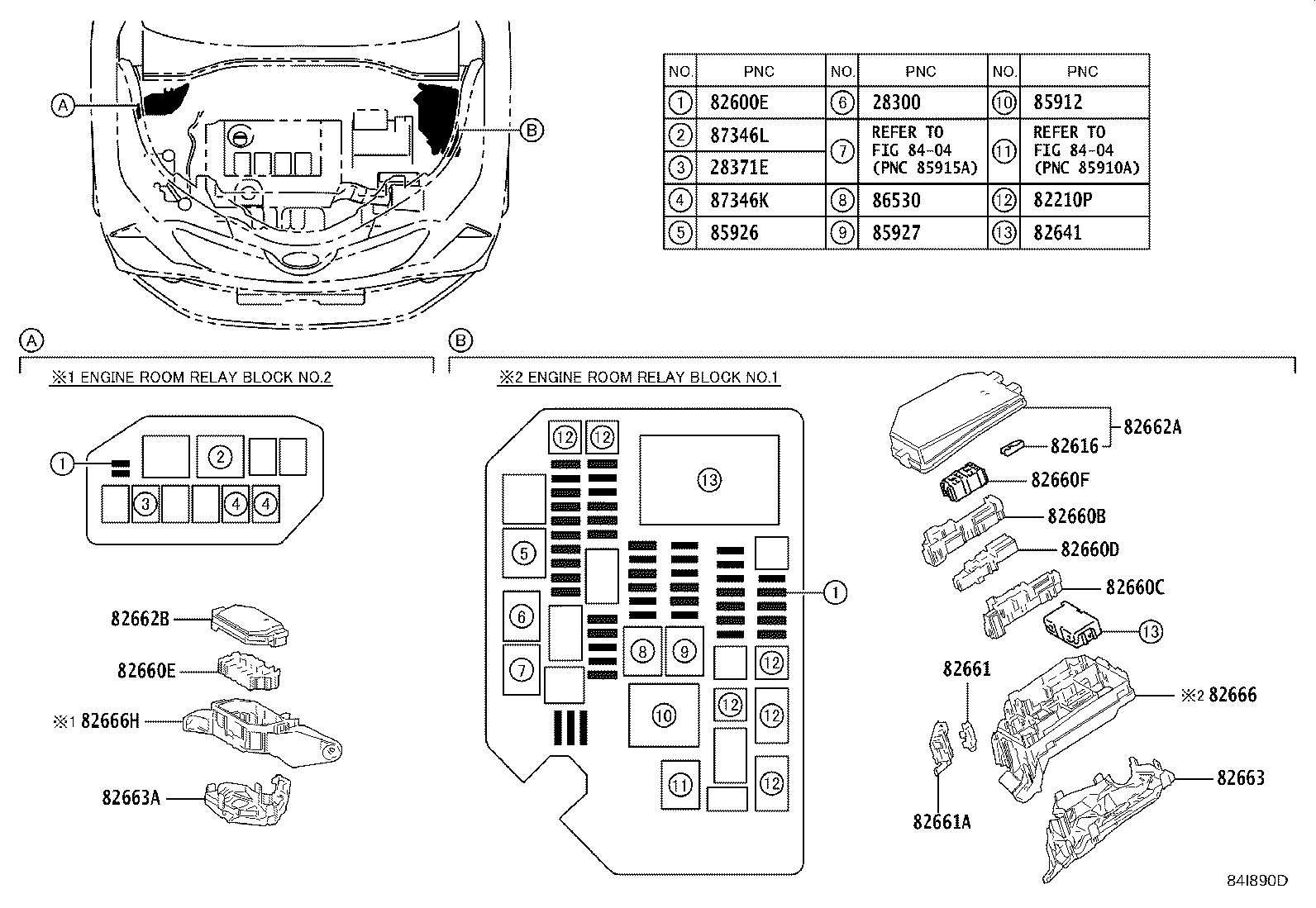

ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
3ZRFAE..ZGX10 |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
3ZRFAE..ZGX10..G CANADA SPEC |
1 | ||
| 90987-02027 |
3ZRFAE..ZGX10..E |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
ZGX10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08302 |
ZGX10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08308 |
ZGX10 40A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
ZGX10 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08300 |
ZGX10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ZGX10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
ZGX10 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ZGX10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ZGX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZGX10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZGX10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ZGX10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZGX10 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ZGX10 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZGX10 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZGX10 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-F4030 |
ZGX10 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-F4010 |
ZGX10 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-F4020 |
ZGX10 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47100 |
ZGX10 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-F4040 |
ZGX10 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-F4020 |
ZGX10 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-F4010 |
ZGX10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-10460 |
ZGX10..D,G |
1 | ||
| 82662-10520 |
ZGX10..E |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-10470 |
ZGX10 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-F4010 |
ZGX10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZGX10 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-10040 |
ZGX10 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZGX10 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ZGX10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZGX10 MARK 90987-02027 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZGX10 |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF 9(1910- )

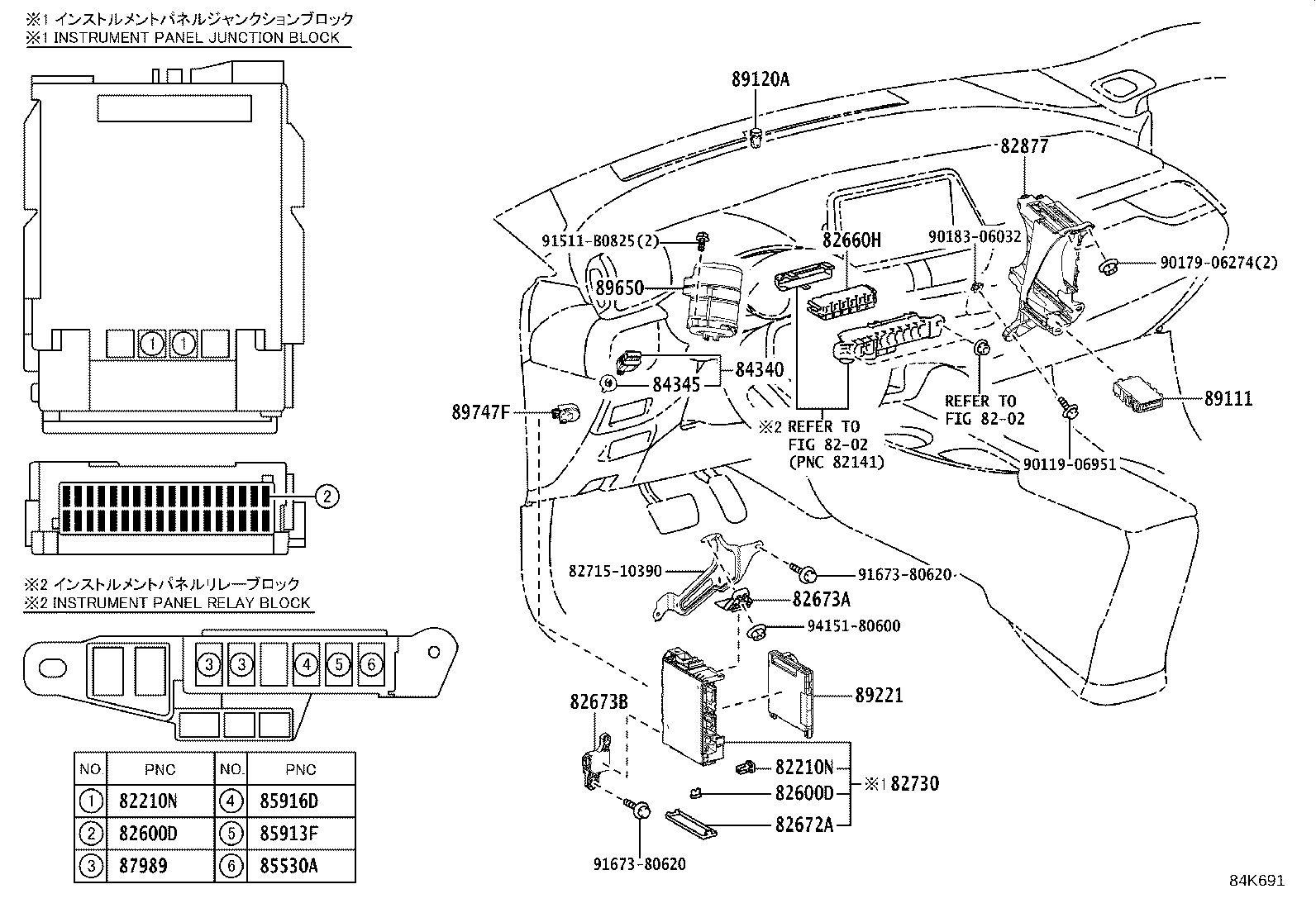

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZGX10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZGX10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZGX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZGX10 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZGX10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZGX10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZGX10 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ZGX10 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZGX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZGX10 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZGX10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZGX10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZGX10 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ZGX10 7.5A,MINI FUSE,BROWN |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-10140 |
ZGX10 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-10020 |
ZGX10 |
1 | ||
| 82672-10021 |
ZGX10 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-10020 |
ZGX10 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12350 |
ZGX10 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-10021 |
ZGX10 |
1 | ||
| 82730-10020 |
ZGX10 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47040 |
ZGX10 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
ZGX10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZGX10 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ZGX10 |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZGX10..E |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90987-04004 |
ZGX10..E,G |
2 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-10050 |
ZGX10 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZGX10 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-10300 |
ZGX10..D |
1 | ||
| 89220-10360 |
ZGX10..D CANADA SPEC |
1 | ||
| 89220-10310 |
ZGX10..E,G |
1 | ||
| 89220-10340 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 89220-10320 |
ZGX10..D HAWAII SPEC |
1 | ||
| 89220-10330 |
ZGX10..E,G HAWAII SPEC |
1 | ||
| 89220-10350 |
ZGX10..E,G PUERTO RICO SPEC |
1 | ||
| 89220-10380 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 89220-10370 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 89220-10390 |
ZGX10..E,G USA POSSESSIONS SPEC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-10110 |
ZGX10 JTEKT/DENSO |
1 | ||
| 89650-10200 |
ZGX10 JTEKT/DENSO |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZGX10..E,G |
1 | ||
| Common parts | ||||
| 82715-10390 | ||||
| 90119-06951 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91511-B0825 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
