ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)

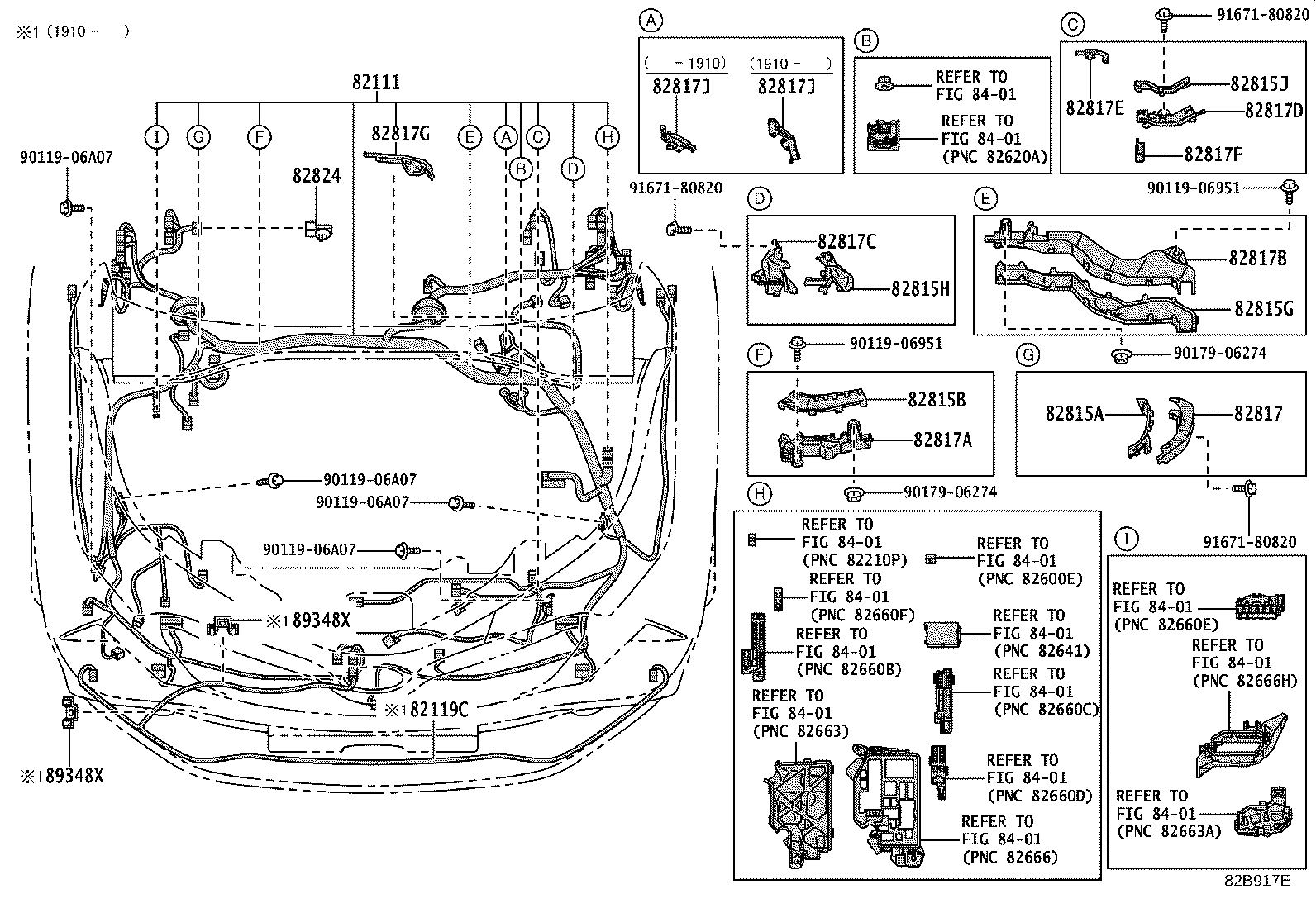

ILLUST NO. 1 OF 9(1801- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-10J20 |
ZGX10..D,G CANADA SPEC |
1 | ||
| 82111-10J11 |
ZGX10..E CANADA SPEC |
1 | ||
| 82111-10J30 |
ZGX10..E |
1 | ||
| 82111-10J31 |
ZGX10..E |
1 | ||
| 82111-10J40 |
ZGX10..D,G |
1 | ||
| 82111-10J21 |
ZGX10..D,G CANADA SPEC |
1 | ||
| 82111-10J10 |
ZGX10..E CANADA SPEC |
1 | ||
| 82111-10J41 |
ZGX10..D,G |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-10060 |
ZGX10..E |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12L00 |
ZGX10 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12L10 |
ZGX10 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12L20 |
ZGX10 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-12L30 |
ZGX10 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12L40 |
ZGX10 |
1 | ||
| 82815-F4280 |
ZGX10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12Y70 |
ZGX10 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12Y80 |
ZGX10 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12Y90 |
ZGX10 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12Z00 |
ZGX10 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4310 |
ZGX10 |
1 | ||
| 82817-12Z20 |
ZGX10 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4320 |
ZGX10 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-F4470 |
ZGX10 |
1 | ||
| 82817-12Z50 |
ZGX10 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-F4520 |
ZGX10 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12W30 |
ZGX10 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12W30 |
ZGX10 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12530 |
ZGX10 |
1 | ||
| 89348X - CLIP, ULTRASONIC SENSOR, FRONT | ||||
| 89348-50050 |
ZGX10..E |
2 | ||
| 89348X - CLIP, ULTRASONIC SENSOR, FRONT | ||||
| 89348-50050 |
ZGX10..E |
2 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A07 | ||||
| 90179-06274 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

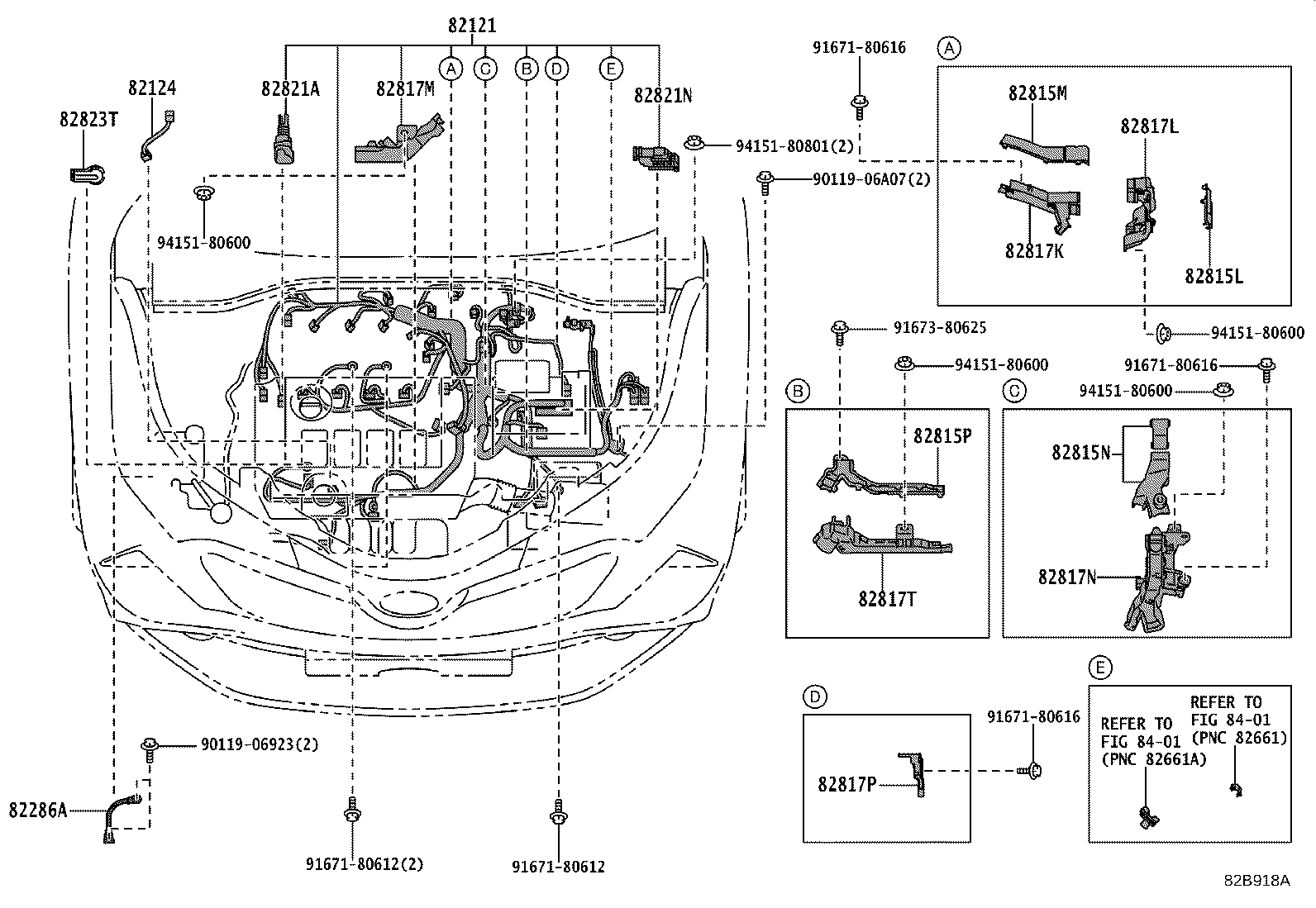

ILLUST NO. 2 OF 9(1801- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-10B10 |
ZGX10 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZGX10 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-10020 |
ZGX10 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-42060 |
ZGX10 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-42070 |
ZGX10 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-F4020 |
ZGX10 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-F4040 |
ZGX10 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-42610 |
ZGX10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-48F20 |
ZGX10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-48K90 |
ZGX10 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-F4020 |
ZGX10 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-F4040 |
ZGX10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-F4050 |
ZGX10 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-F4010 |
ZGX10 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-12C20 |
ZGX10 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-06A07 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91673-80625 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

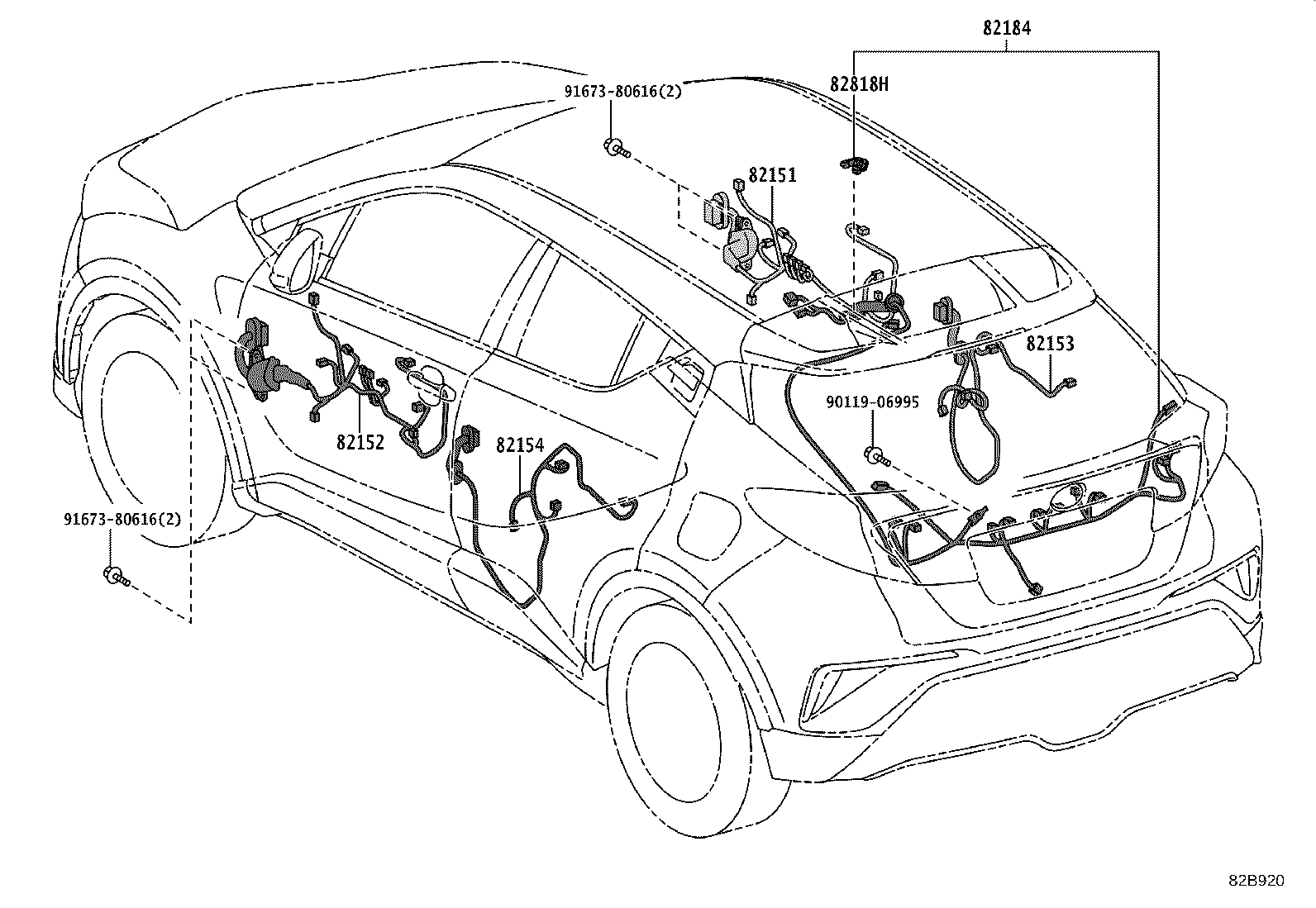

ILLUST NO. 4 OF 9(1801- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-10550 |
ZGX10..G |
1 | ||
| 82151-10541 |
ZGX10..D |
1 | ||
| 82151-10561 |
ZGX10..E |
1 | ||
| 82151-10540 |
ZGX10..D |
1 | ||
| 82151-10551 |
ZGX10..G |
1 | ||
| 82151-10560 |
ZGX10..E |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-10541 |
ZGX10..D |
1 | ||
| 82152-10550 |
ZGX10..G |
1 | ||
| 82152-10561 |
ZGX10..E |
1 | ||
| 82152-10540 |
ZGX10..D |
1 | ||
| 82152-10551 |
ZGX10..G |
1 | ||
| 82152-10560 |
ZGX10..E |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-10100 |
ZGX10 |
1 | ||
| 82153-10101 |
ZGX10 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-10101 |
ZGX10 |
1 | ||
| 82154-10100 |
ZGX10 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-10250 |
ZGX10 |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-10350 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 91673-80616 | ||||

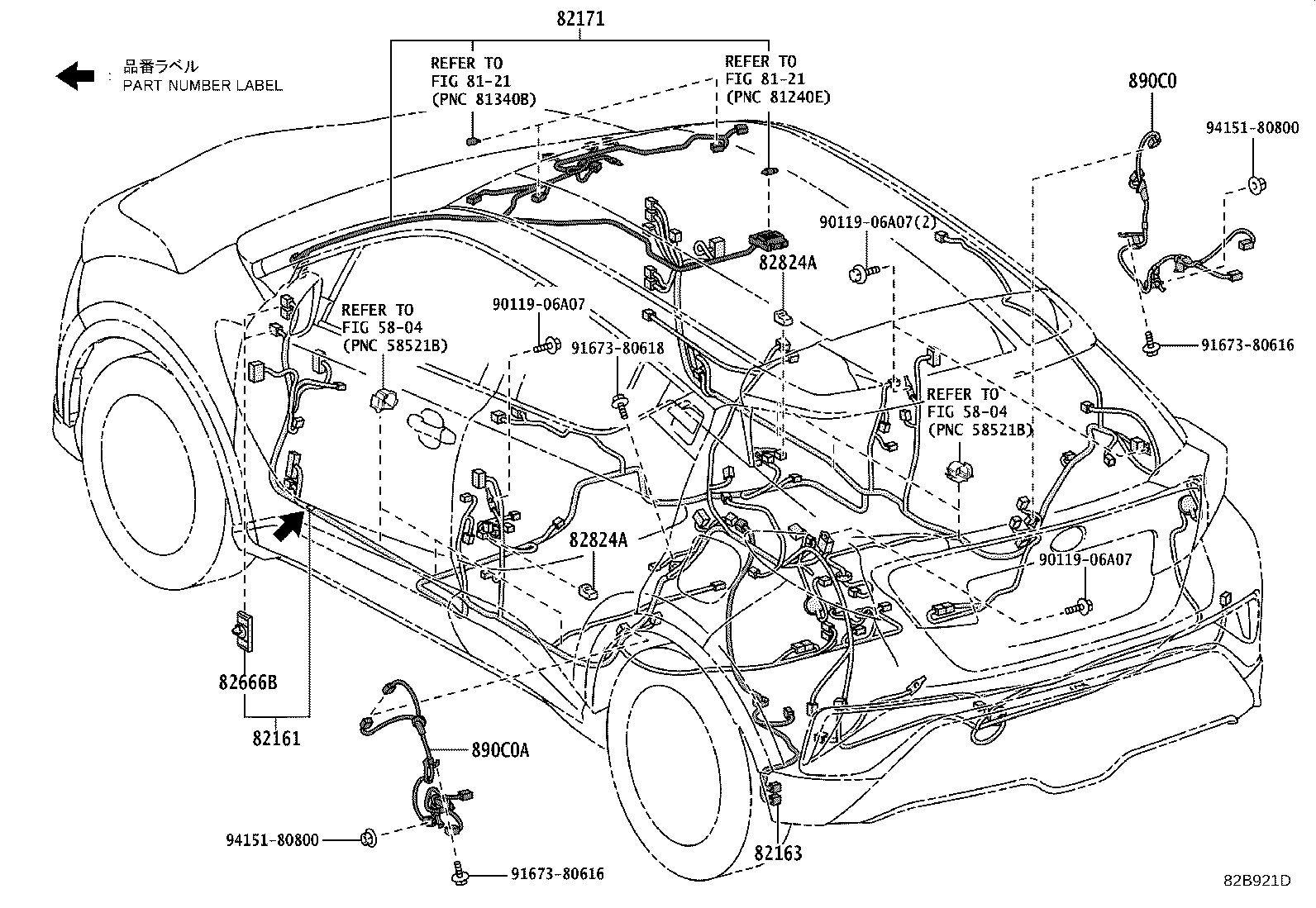

ILLUST NO. 5 OF 9(1801- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-10E30 |
ZGX10..G HAWAII SPEC |
1 | ||
| 82161-10E10 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82161-10E20 |
ZGX10..D |
1 | ||
| 82161-10E10 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82161-10E30 |
ZGX10..G CANADA SPEC |
1 | ||
| 82161-10E40 |
ZGX10..E CANADA SPEC |
1 | ||
| 82161-10E10 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82161-10E40 |
ZGX10..E PUERTO RICO SPEC |
1 | ||
| 82161-10E30 |
ZGX10..G PUERTO RICO SPEC |
1 | ||
| 82161-10E30 |
ZGX10..G USA POSSESSIONS SPEC |
1 | ||
| 82161-10E60 |
ZGX10..E CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E40 |
ZGX10..E USA POSSESSIONS SPEC |
1 | ||
| 82161-10E40 |
ZGX10..E HAWAII SPEC |
1 | ||
| 82161-10E50 |
ZGX10..G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E50 |
ZGX10..G |
1 | ||
| 82161-10E60 |
ZGX10..E HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E10 |
ZGX10..D CANADA SPEC |
1 | ||
| 82161-10E11 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82161-10E11 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82161-10E60 |
ZGX10..E |
1 | ||
| 82161-10E21 |
ZGX10..D |
1 | ||
| 82161-10E11 |
ZGX10..D CANADA SPEC |
1 | ||
| 82161-10E60 |
ZGX10..E PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E50 |
ZGX10..G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E41 |
ZGX10..E PUERTO RICO SPEC |
1 | ||
| 82161-10E31 |
ZGX10..G CANADA SPEC |
1 | ||
| 82161-10E51 |
ZGX10..G |
1 | ||
| 82161-10E41 |
ZGX10..E HAWAII SPEC |
1 | ||
| 82161-10E31 |
ZGX10..G USA POSSESSIONS SPEC |
1 | ||
| 82161-10E50 |
ZGX10..G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E31 |
ZGX10..G PUERTO RICO SPEC |
1 | ||
| 82161-10E41 |
ZGX10..E USA POSSESSIONS SPEC |
1 | ||
| 82161-10E51 |
ZGX10..G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E61 |
ZGX10..E |
1 | ||
| 82161-10E51 |
ZGX10..G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E41 |
ZGX10..E CANADA SPEC |
1 | ||
| 82161-10E31 |
ZGX10..G HAWAII SPEC |
1 | ||
| 82161-10E11 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82161-10E61 |
ZGX10..E HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E61 |
ZGX10..E CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E61 |
ZGX10..E PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82161-10E51 |
ZGX10..G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-10080 |
ZGX10..D,G |
1 | ||
| 82163-10090 |
ZGX10..E |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-10560 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82171-10610 |
ZGX10..E,G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82171-10560 |
ZGX10..D CANADA SPEC |
1 | ||
| 82171-10580 |
ZGX10..E,G PUERTO RICO SPEC |
1 | ||
| 82171-10580 |
ZGX10..E,G HAWAII SPEC |
1 | ||
| 82171-10570 |
ZGX10..D |
1 | ||
| 82171-10580 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 82171-10560 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82171-10560 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82171-10581 |
ZGX10..E,G HAWAII SPEC |
1 | ||
| 82171-10580 |
ZGX10..E,G USA POSSESSIONS SPEC |
1 | ||
| 82171-10610 |
ZGX10..E,G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82171-10581 |
ZGX10..E,G PUERTO RICO SPEC |
1 | ||
| 82171-10571 |
ZGX10..D |
1 | ||
| 82171-10561 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82171-10561 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82171-10581 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 82171-10610 |
ZGX10..E,G |
1 | ||
| 82171-10561 |
ZGX10..D CANADA SPEC |
1 | ||
| 82171-10610 |
ZGX10..E,G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82171-10561 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82171-10611 |
ZGX10..E,G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82171-10581 |
ZGX10..E,G USA POSSESSIONS SPEC |
1 | ||
| 82171-10611 |
ZGX10..E,G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82171-10611 |
ZGX10..E,G |
1 | ||
| 82171-10611 |
ZGX10..E,G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
ZGX10 |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
ZGX10..D,G |
2 | ||
| 90980-12373 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) |
1 | ||
| 90980-12373 |
ZGX10..G CANADA SPEC&SEAT HEATER-WITH |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
ZGX10..D,G |
2 | ||
| 90980-12373 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) |
1 | ||
| 90980-12373 |
ZGX10..G CANADA SPEC&SEAT HEATER-WITH |
2 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-10030 |
ZGX10 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-10040 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 91673-80616 | ||||
| 91673-80618 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||

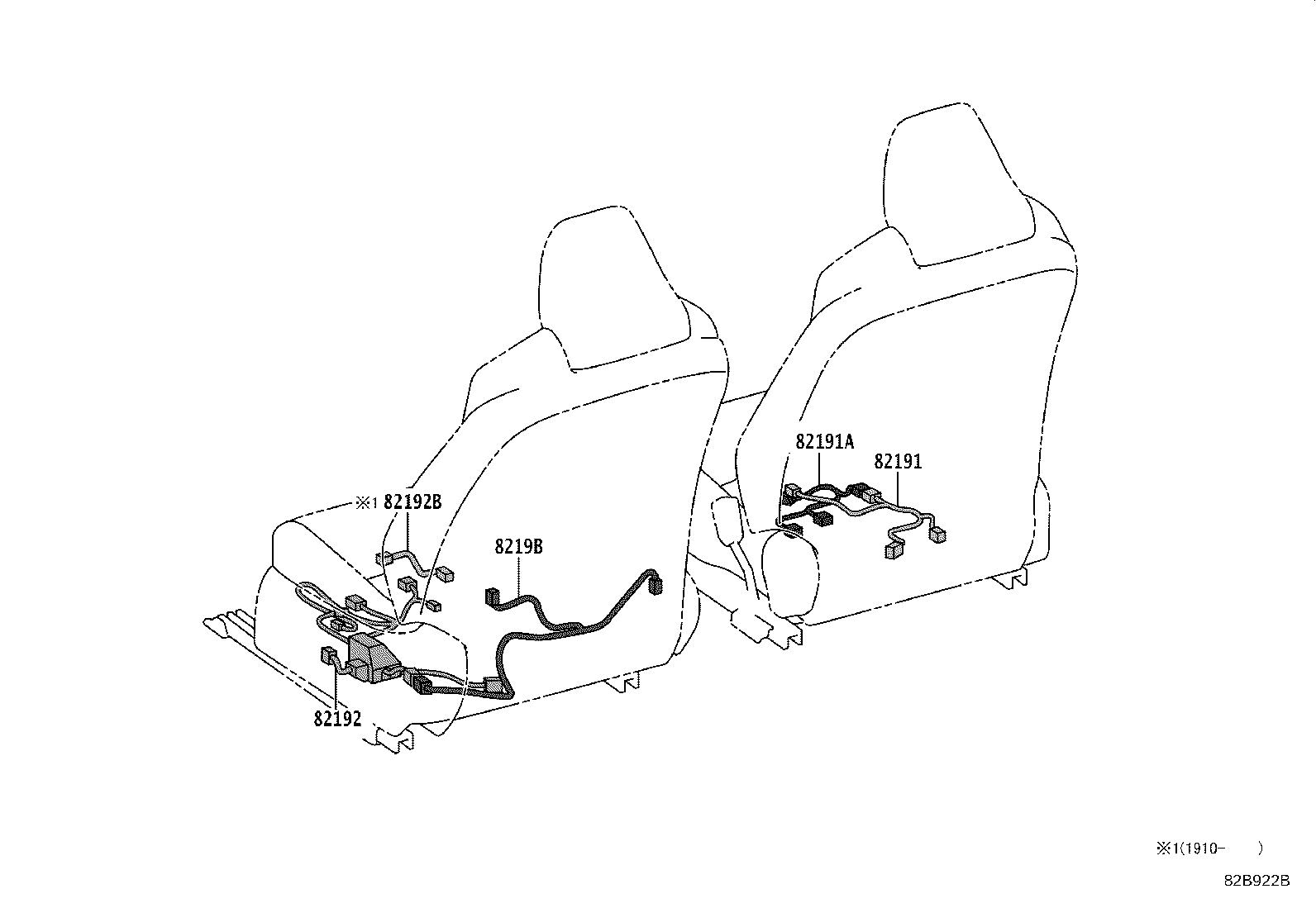

ILLUST NO. 6 OF 9(1801- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-10030 |
ZGX10..E |
1 | ||
| 82191-10030 |
ZGX10..G CANADA SPEC&SEAT HEATER-WITH |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-10040 |
ZGX10 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-10030 |
ZGX10..E |
1 | ||
| 82192-10020 |
ZGX10..G CANADA SPEC&SEAT HEATER-WITH |
1 | ||
| 82192B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 82192-11080 |
ZGX10..E |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-47050 |
ZGX10..G CANADA SPEC&SEAT HEATER-WITH |
1 | ||
| 8219B-47060 |
ZGX10..E |
1 | ||

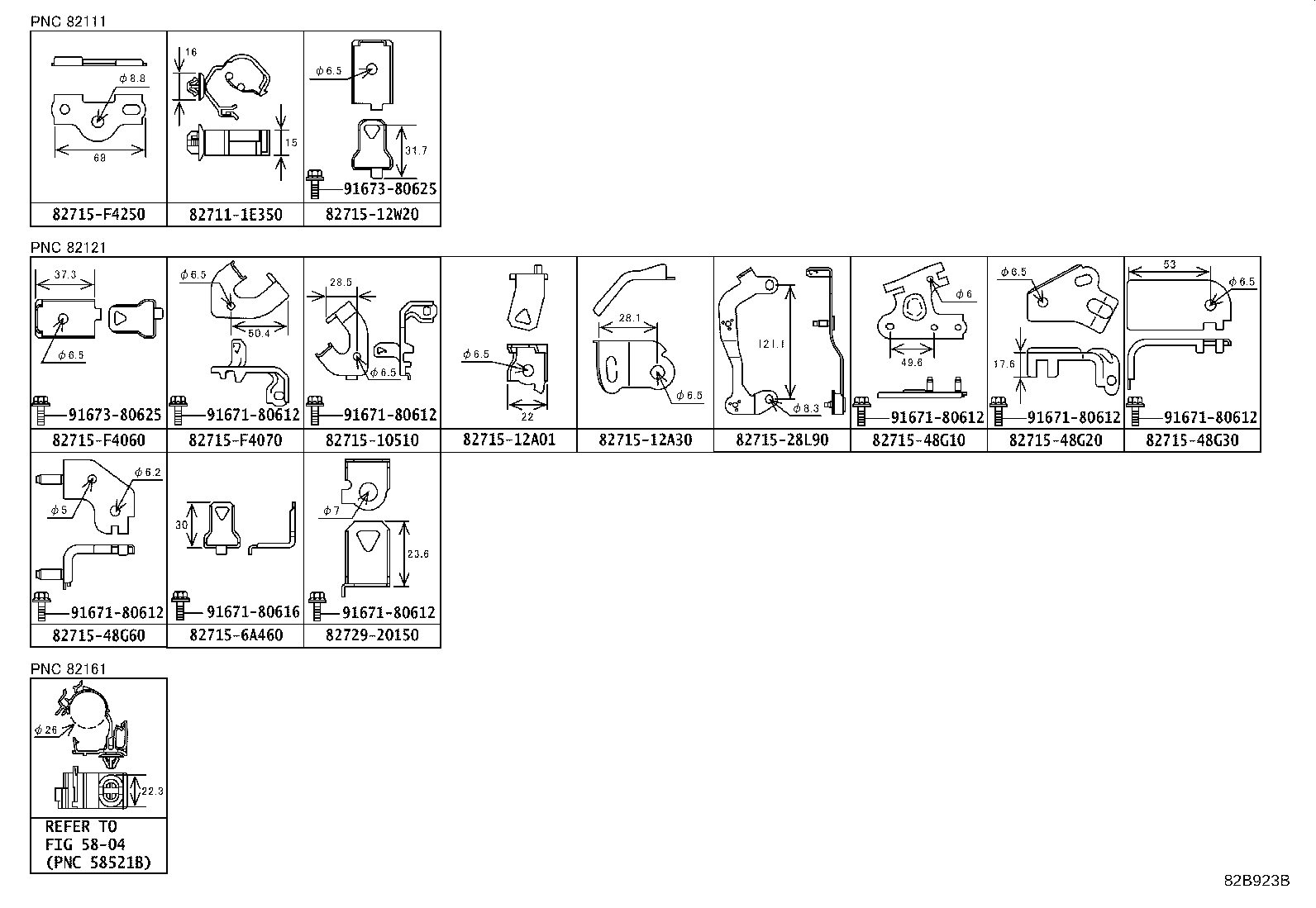

ILLUST NO. 7 OF 9(1801- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-10510 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12W20 | ||||
| 82715-28L90 | ||||
| 82715-48G10 | ||||
| 82715-48G20 | ||||
| 82715-48G30 | ||||
| 82715-48G60 | ||||
| 82715-6A460 | ||||
| 82715-F4060 | ||||
| 82715-F4070 | ||||
| 82715-F4250 | ||||
| 82729-20150 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91673-80625 | ||||
| Linked diagrams | ||||
| 5804 | ||||

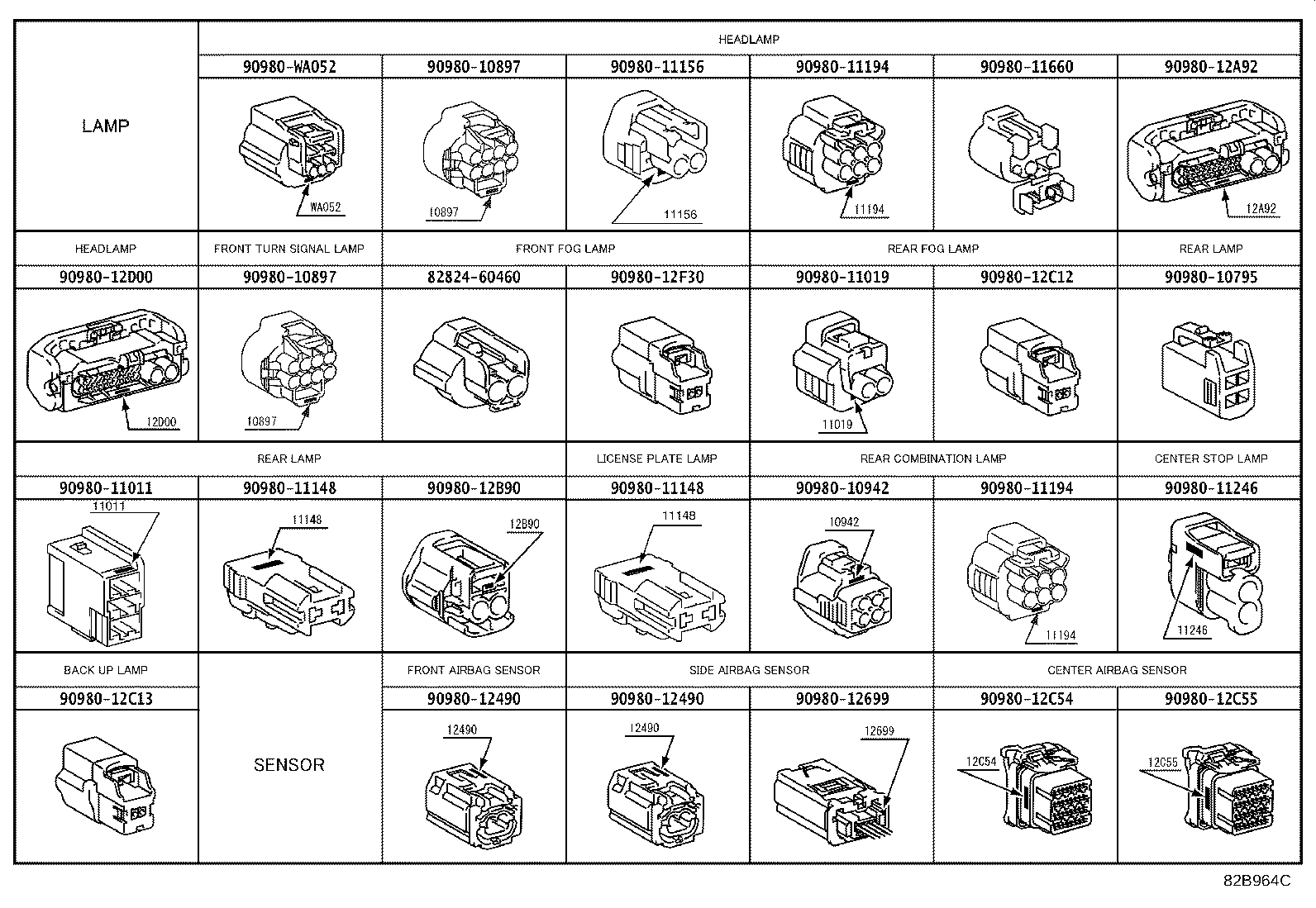

ILLUST NO. 8 OF 9(1801- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11660 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
| 90980-12B90 | ||||
| 90980-12C12 | ||||
| 90980-12C13 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12D00 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||

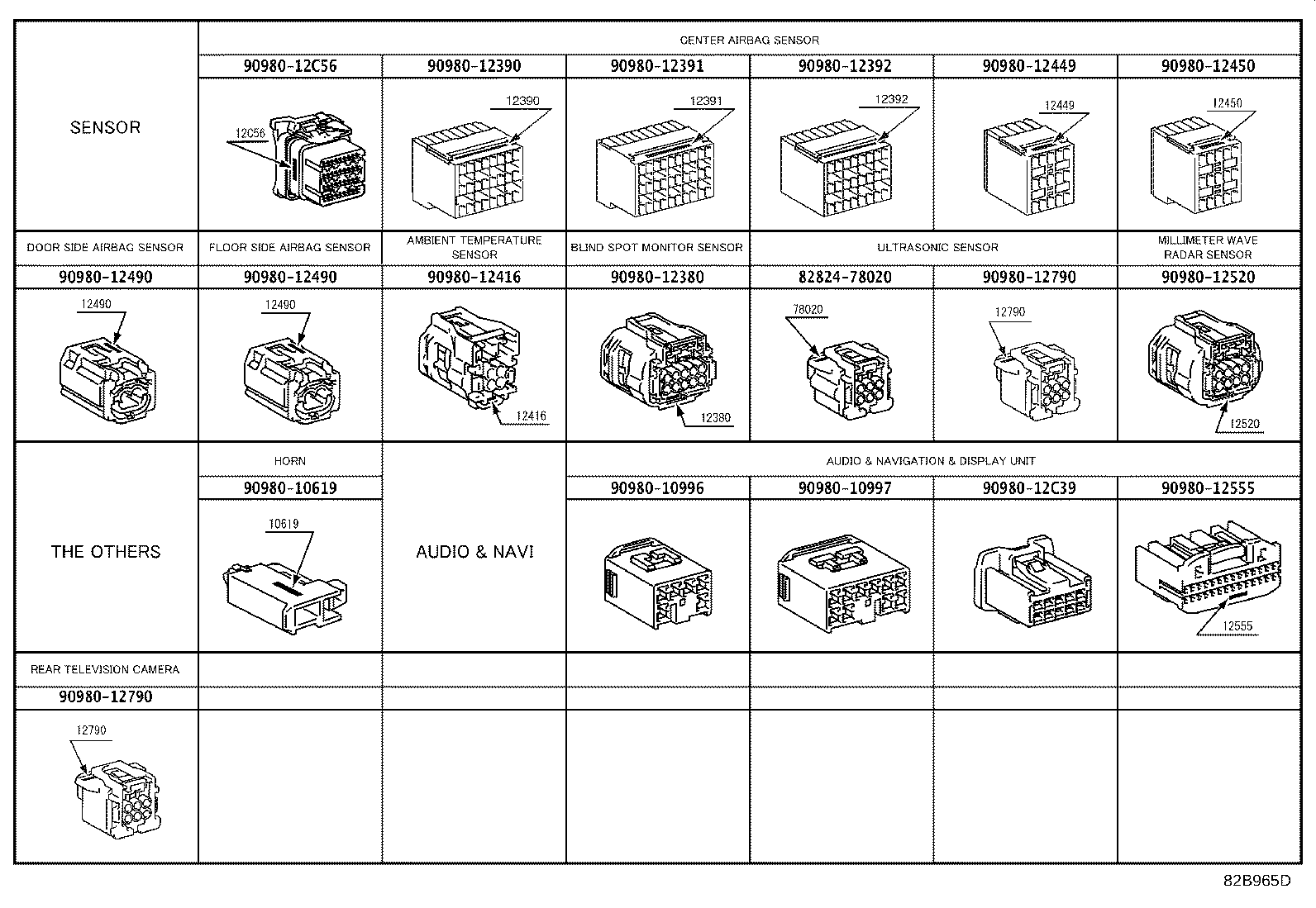

ILLUST NO. 9 OF 9(1801- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
| 90980-12C56 | ||||

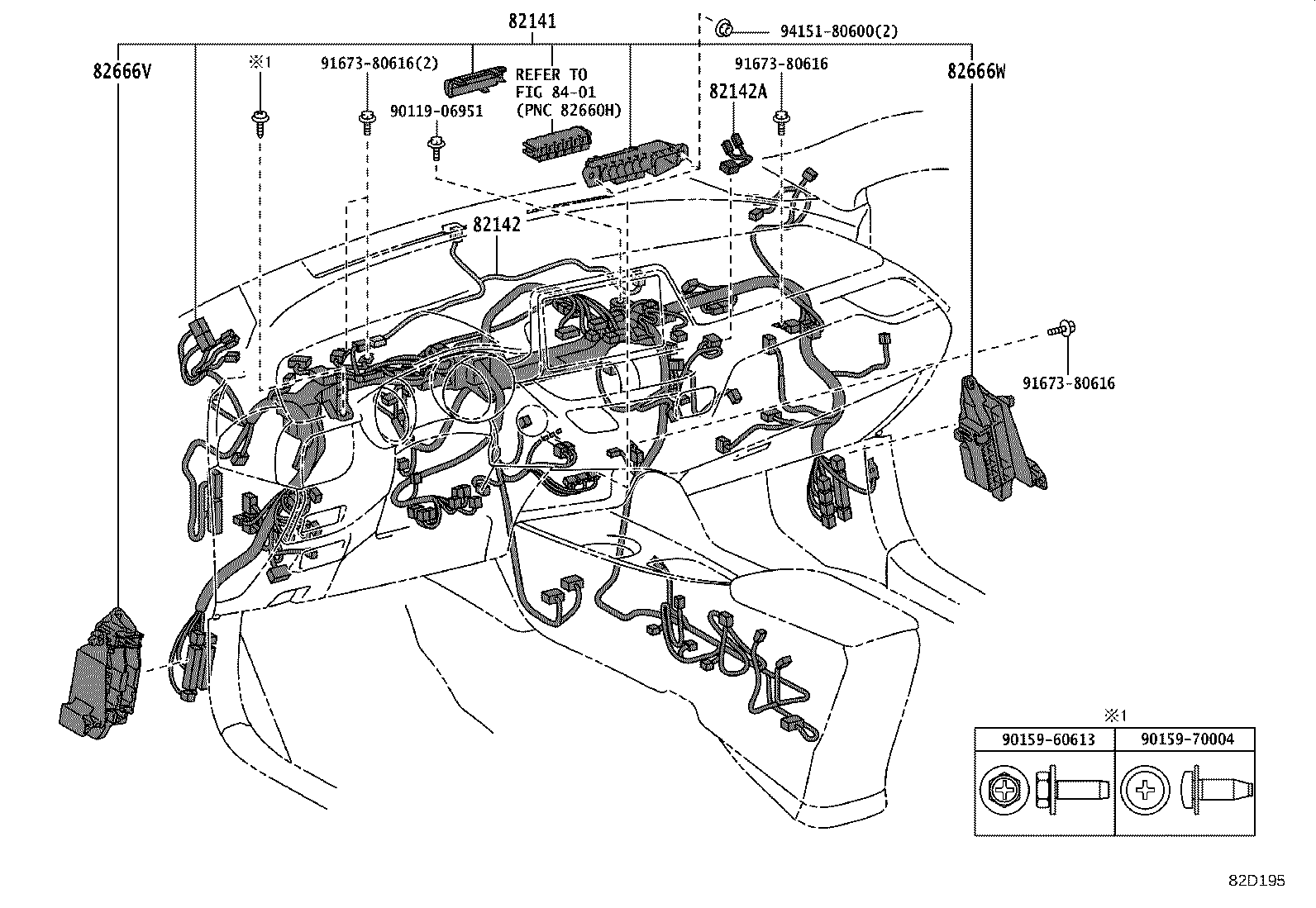

ILLUST NO. 3 OF 9(1910- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-10E00 |
ZGX10..E,G USA POSSESSIONS SPEC |
1 | ||
| 82141-10E00 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 82141-10D60 |
ZGX10..D CANADA SPEC |
1 | ||
| 82141-10D70 |
ZGX10..D |
1 | ||
| 82141-10D60 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82141-10E00 |
ZGX10..E,G PUERTO RICO SPEC |
1 | ||
| 82141-10E30 |
ZGX10..E,G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10E10 |
ZGX10..E,G |
1 | ||
| 82141-10D60 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82141-10D61 |
ZGX10..D PUERTO RICO SPEC |
1 | ||
| 82141-10E00 |
ZGX10..E,G HAWAII SPEC |
1 | ||
| 82141-10E30 |
ZGX10..E,G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10E30 |
ZGX10..E,G AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10D60 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82141-10E31 |
ZGX10..E,G AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10E31 |
ZGX10..E,G HAWAII SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10E01 |
ZGX10..E,G USA POSSESSIONS SPEC |
1 | ||
| 82141-10D61 |
ZGX10..D USA POSSESSIONS SPEC |
1 | ||
| 82141-10E01 |
ZGX10..E,G PUERTO RICO SPEC |
1 | ||
| 82141-10E11 |
ZGX10..E,G |
1 | ||
| 82141-10M70 |
ZGX10..E,G CANADA SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10D61 |
ZGX10..D CANADA SPEC |
1 | ||
| 82141-10E31 |
ZGX10..E,G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82141-10D61 |
ZGX10..D HAWAII SPEC |
1 | ||
| 82141-10D71 |
ZGX10..D |
1 | ||
| 82141-10E01 |
ZGX10..E,G HAWAII SPEC |
1 | ||
| 82141-10M60 |
ZGX10..E,G CANADA SPEC |
1 | ||
| 82141-10E30 |
ZGX10..E,G PUERTO RICO SPEC&AUDIO-*DA & HD RADIO,FOR NORTH AMERICA |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-10070 |
ZGX10 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-10010 |
ZGX10 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-10050 |
ZGX10 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-10060 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
