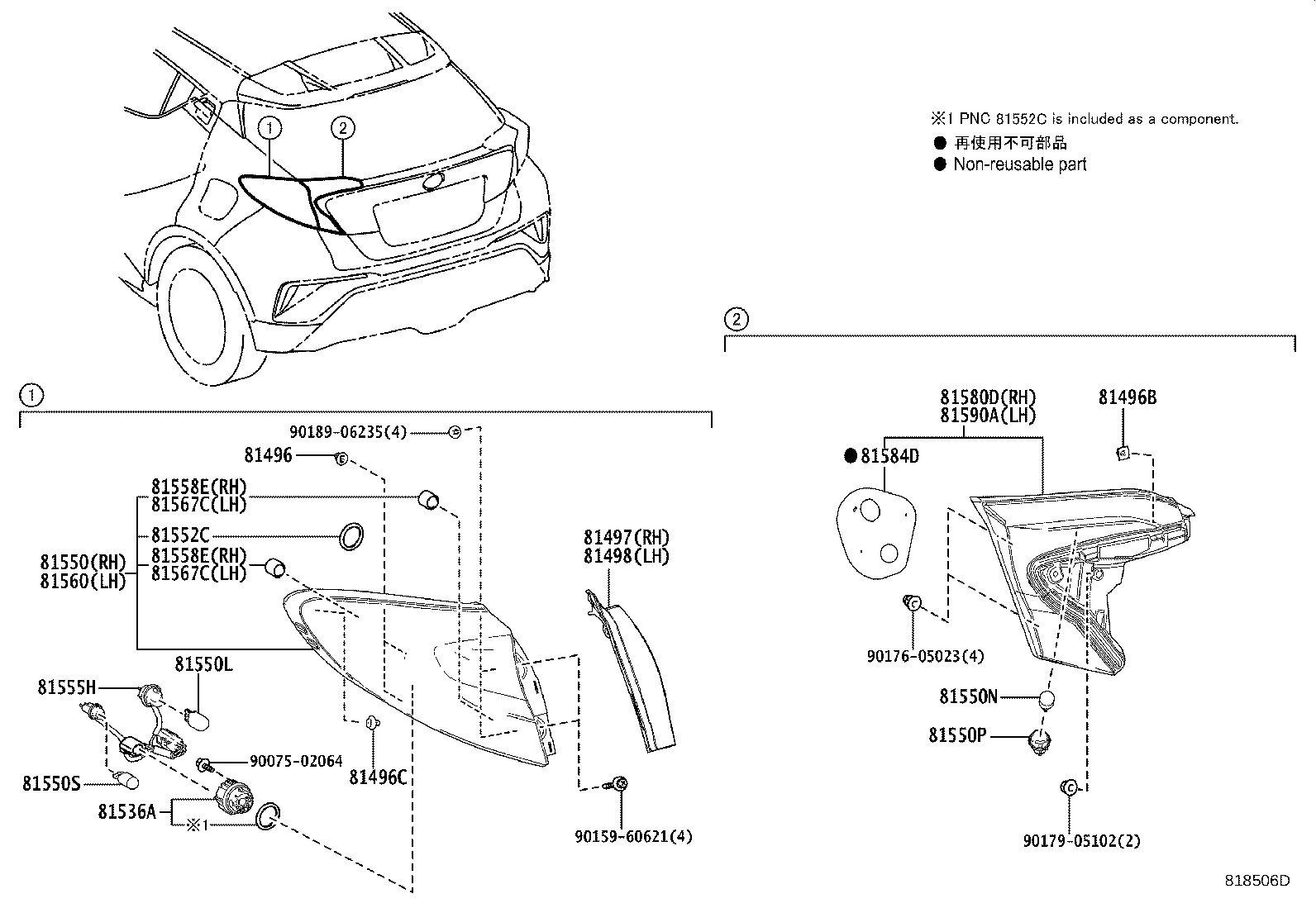

Toyota C-hr (jpp) ZGX10 REAR COMBINATION LAMP

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020	ZGX10	10/2019 - 12/2999	4
81496B - GUIDE, REAR LAMP
76817-26040	ZGX10	10/2019 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010	ZGX10	10/2019 - 12/2999	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-10010	ZGX10	10/2019 - 12/2999	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-10010	ZGX10	10/2019 - 12/2999	1
81536A - LED, REAR COMBINATION LAMP
81536-52C80	ZGX10	10/2019 - 12/2999	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81551-10401	ZGX10	11/2020 - 12/2999	1
81551-10400	ZGX10	10/2019 - 11/2020	1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	ZGX10 12V 21W,AMBER	10/2019 - 12/2999	2
81550N - BULB, BACK UP LAMP
90981-11059	ZGX10 12V 16W	10/2019 - 12/2999	2
81550P - SOCKET, BACK UP LAMP
90075-60001	ZGX10	10/2019 - 12/2999	2
81550S - BULB, REAR SIDE MARKER LAMP
90981-11069	ZGX10 12V 5W	10/2019 - 12/2999	2
81552C - GASKET, REAR COMBINATION LAMP
90075-68010	ZGX10	10/2019 - 12/2999	2
81555H - SOCKET & WIRE, REAR COMBINATION LAMP
81555-10400	ZGX10	10/2019 - 12/2999	2
81558E - COVER, REAR COMBINATION LAMP, RH
90075-15512	ZGX10	10/2019 - 12/2999	2
81558E - COVER, REAR COMBINATION LAMP, RH
90075-15512	ZGX10	10/2019 - 12/2999	2
81560 - LAMP ASSY, REAR COMBINATION, LH
81561-10401	ZGX10	11/2020 - 12/2999	1
81561-10400	ZGX10	10/2019 - 11/2020	1
81567C - COVER, REAR COMBINATION LAMP, LH
90075-15512	ZGX10	10/2019 - 12/2999	2
81567C - COVER, REAR COMBINATION LAMP, LH
90075-15512	ZGX10	10/2019 - 12/2999	2
81580D - LAMP ASSY, REAR, RH
81581-10011	ZGX10	10/2019 - 11/2020	1
81581-10050	ZGX10	11/2020 - 12/2999	1
81584D - GASKET, REAR LAMP
81584-10010	ZGX10	10/2019 - 12/2999	2
81590A - LAMP ASSY, REAR, LH
81591-10050	ZGX10	11/2020 - 12/2999	1
81591-10011	ZGX10	10/2019 - 11/2020	1
Common parts
90075-02064
90159-60621
90176-05023
90179-05102
90189-06235

ZGX10L-AHXGPA (2019)

(1801- )
