ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

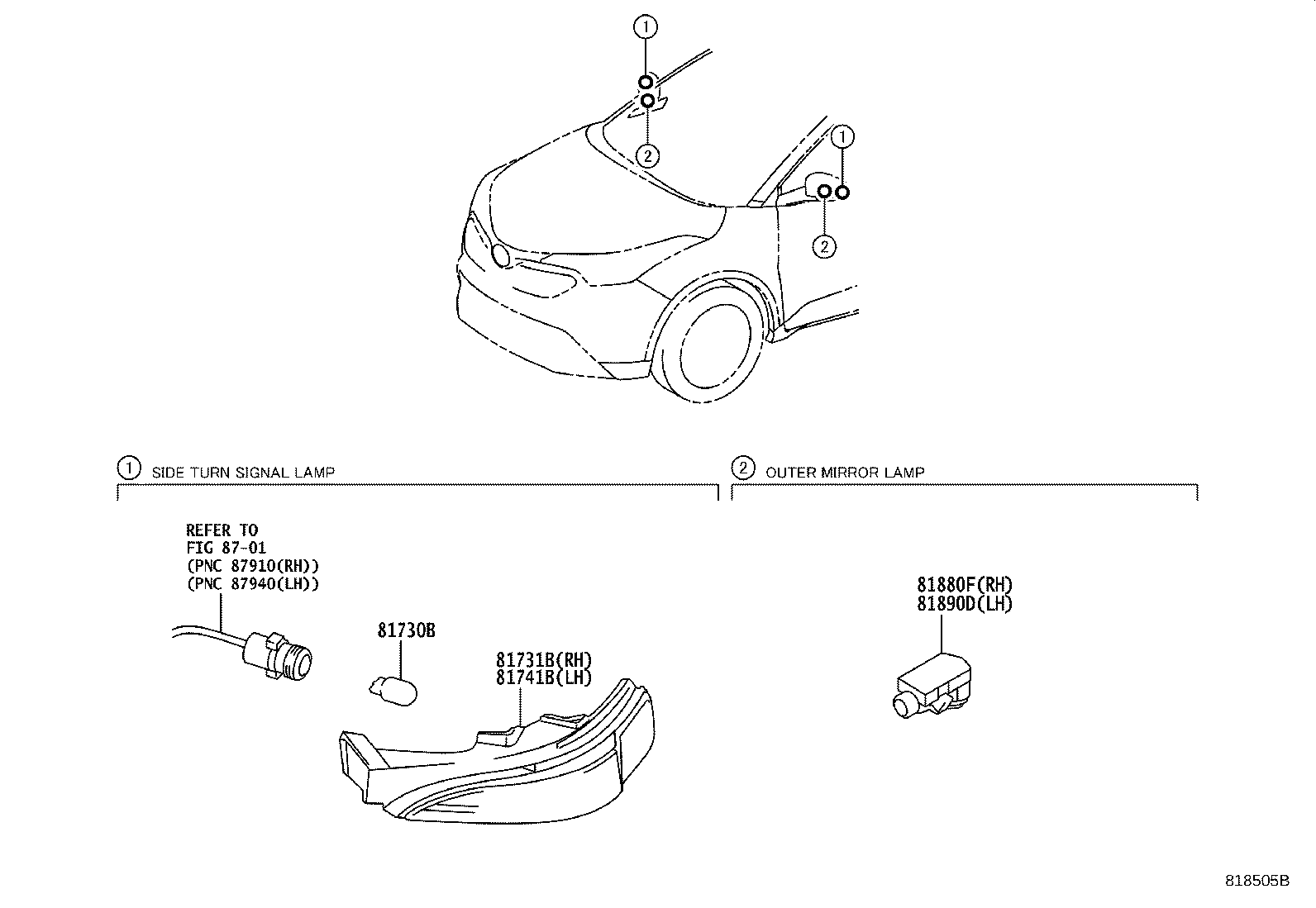

Click highlighted areas on diagram

diagram 81730B 81731B 81741B 81880F 81890D
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-WF011

ZGX10

12V 5W

 2
81731B - LENS & BODY, SIDE TURN SIGNAL LAMP, RH
81731-02120

ZGX10

 1
81741B - LENS & BODY, SIDE TURN SIGNAL LAMP, LH
81741-02040

ZGX10

 1
81880F - LAMP ASSY, OUTER MIRROR, RH
81880-F4012

ZGX10..E,G

TYPE A:REFER 87-01

 1
81890D - LAMP ASSY, OUTER MIRROR, LH
81890-F4012

ZGX10..E,G

TYPE A:REFER 87-01

 1
