ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )E
Click highlighted areas on diagram

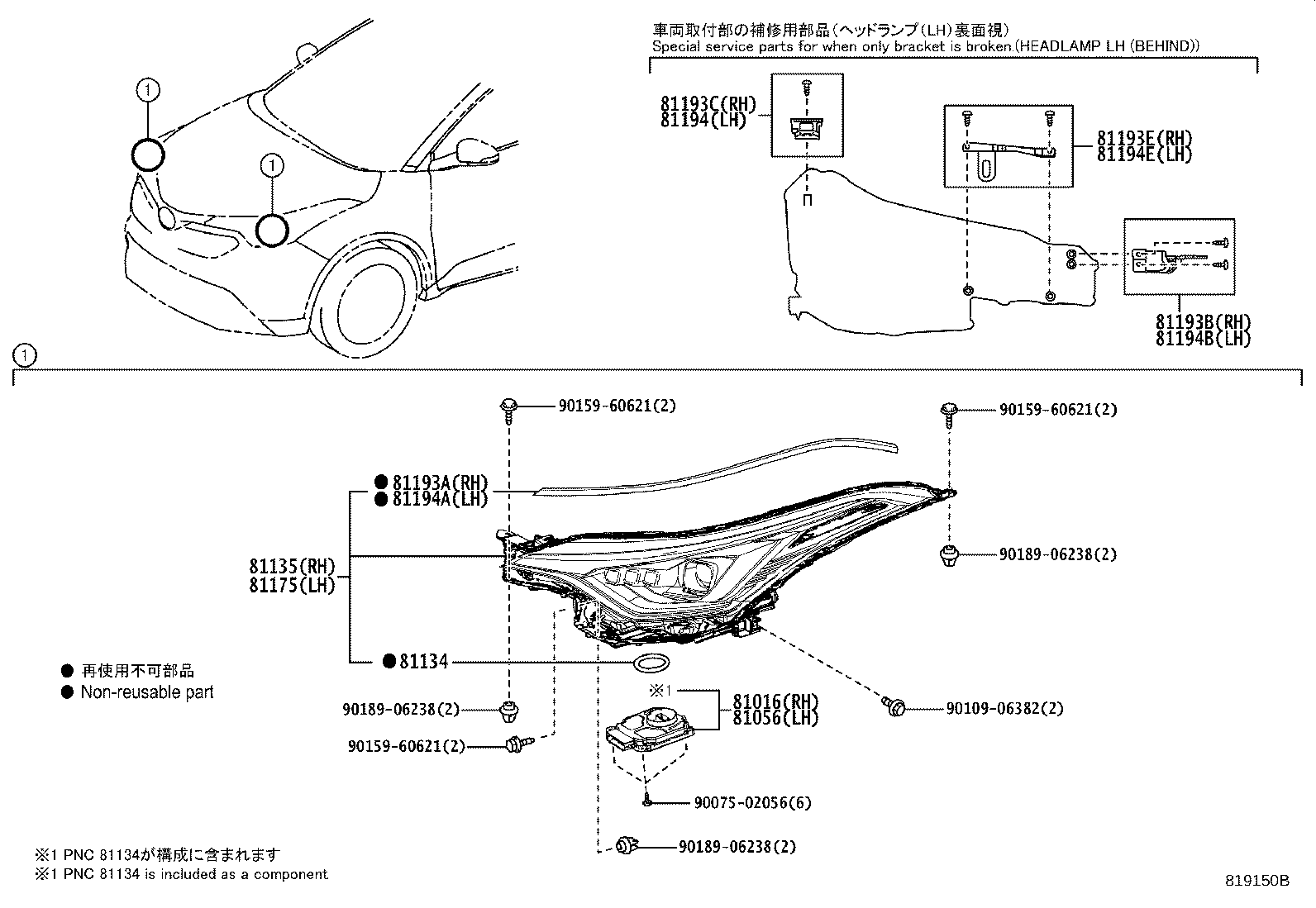

LED HEADLAMP(PROJECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-10B00 |
ZGX10..E |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-10B00 |
ZGX10..E |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
ZGX10..E |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-10B00 |
ZGX10..E |
1 | ||
| 81140-10A70 |
ZGX10..D,G |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-10A70 |
ZGX10..D,G |
1 | ||
| 81185-10B00 |
ZGX10..E |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-10050 |
ZGX10 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-10020 |
ZGX10 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-10010 |
ZGX10 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-10030 |
ZGX10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-10010 |
ZGX10 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81194-10050 |
ZGX10 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-10020 |
ZGX10 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-10030 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90109-06382 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1910- )D,G
Click highlighted areas on diagram

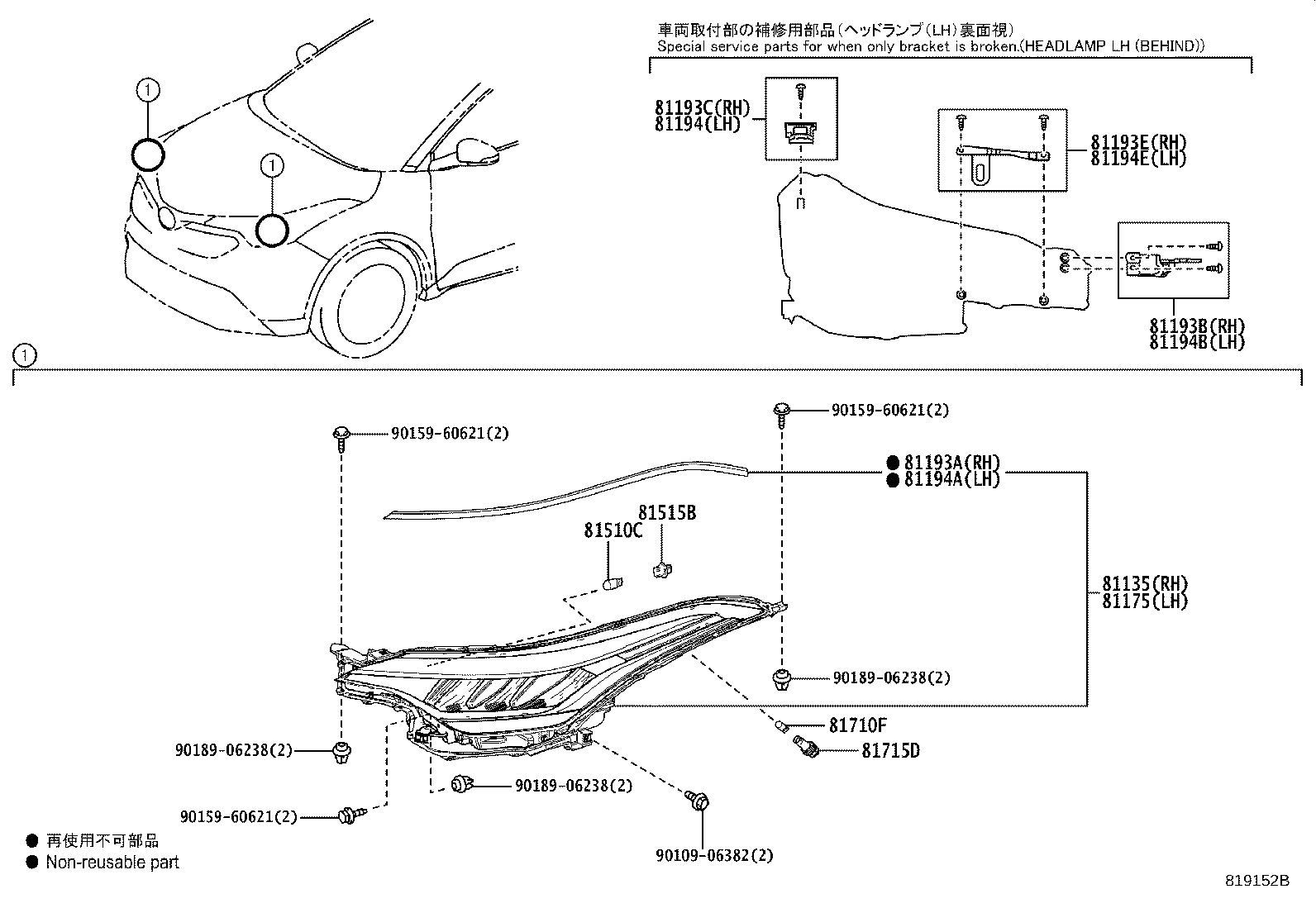

LED HEADLAMP(MULTI REFLECTOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-10B00 |
ZGX10..E |
1 | ||
| 81140-10A70 |
ZGX10..D,G |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-10A70 |
ZGX10..D,G |
1 | ||
| 81185-10B00 |
ZGX10..E |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-10050 |
ZGX10 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-10020 |
ZGX10 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-10010 |
ZGX10 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-10030 |
ZGX10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-10010 |
ZGX10 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81194-10050 |
ZGX10 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-10020 |
ZGX10 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-10030 |
ZGX10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZGX10..D,G 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZGX10..D,G |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 90981-11069 |
ZGX10..D,G |
2 | ||
| 81715D - SOCKET PLUG, FRONT MARKER LAMP | ||||
| 90075-60089 |
ZGX10..D,G |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
