ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

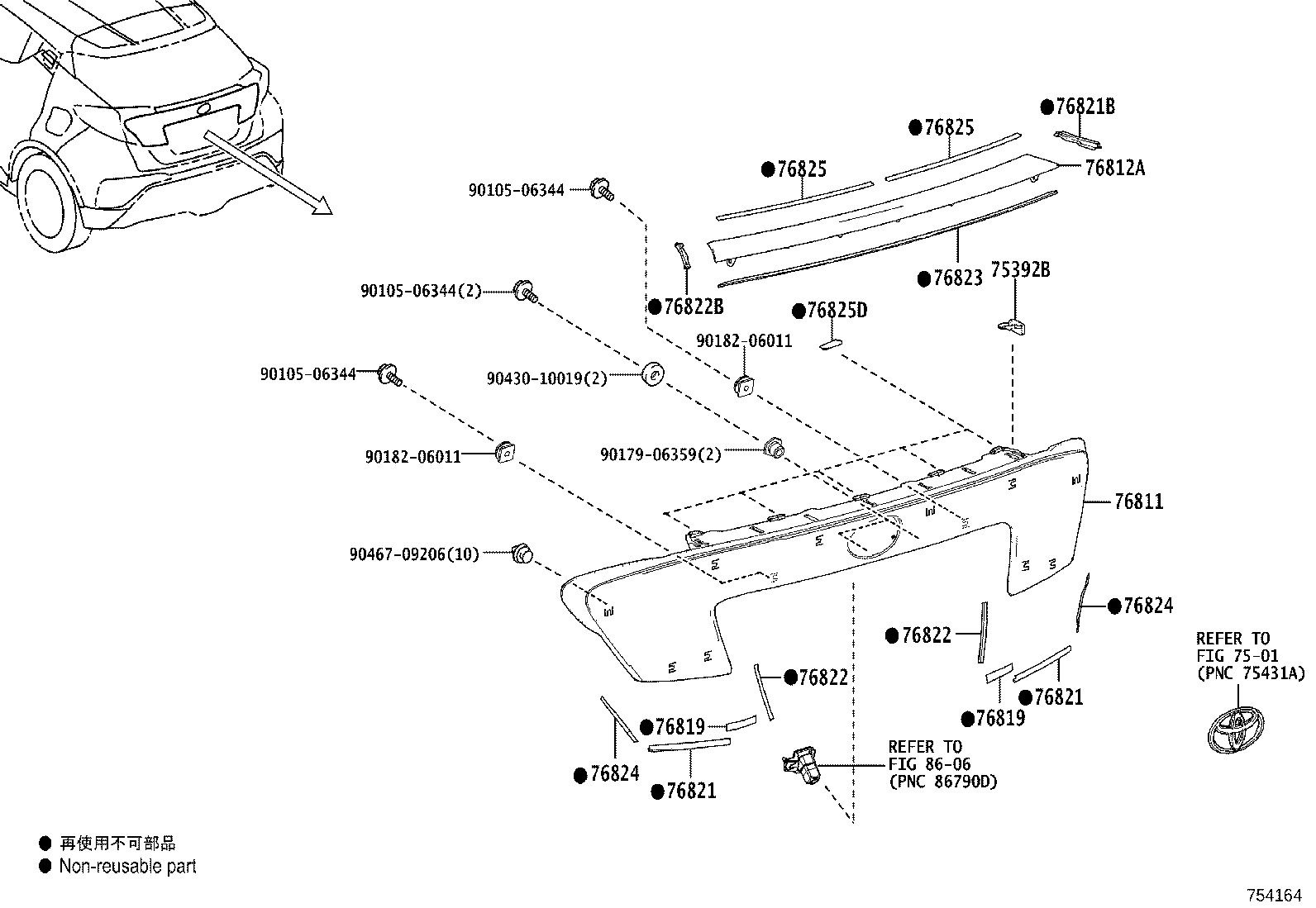

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75392B - RETEINER, OUTSIDE MOULDING, NO.1 | ||||
| 75392-35200 |
ZGX10 |
7 | ||
| 76811 - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-10900 |
ZGX10 |
1 | ||
| 76812A - GARNISH, BACK DOOR, OUTSIDE NO.2 | ||||
| 76812-10901 |
ZGX10 |
1 | ||
| 76819 - SEAL, BACK DOOR OUTSIDE GARNISH | ||||
| 76819-10010 |
ZGX10 |
2 | ||
| 76819 - SEAL, BACK DOOR OUTSIDE GARNISH | ||||
| 76819-10010 |
ZGX10 |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-10010 |
ZGX10 |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-10010 |
ZGX10 |
2 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76841-10010 |
ZGX10 |
1 | ||
| 76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER | ||||
| 76822-10010 |
ZGX10 |
2 | ||
| 76822 - PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER | ||||
| 76822-10010 |
ZGX10 |
2 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76842-10010 |
ZGX10 |
1 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76823-10030 |
ZGX10 |
1 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76824-10020 |
ZGX10 |
4 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76824-10020 |
ZGX10 |
4 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-10040 |
ZGX10 |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-10040 |
ZGX10 |
2 | ||
| 76825D - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76835-10020 |
ZGX10 |
5 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90179-06359 | ||||
| 90182-06011 | ||||
| 90430-10019 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8606 | ||||
