ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

Click highlighted areas on diagram

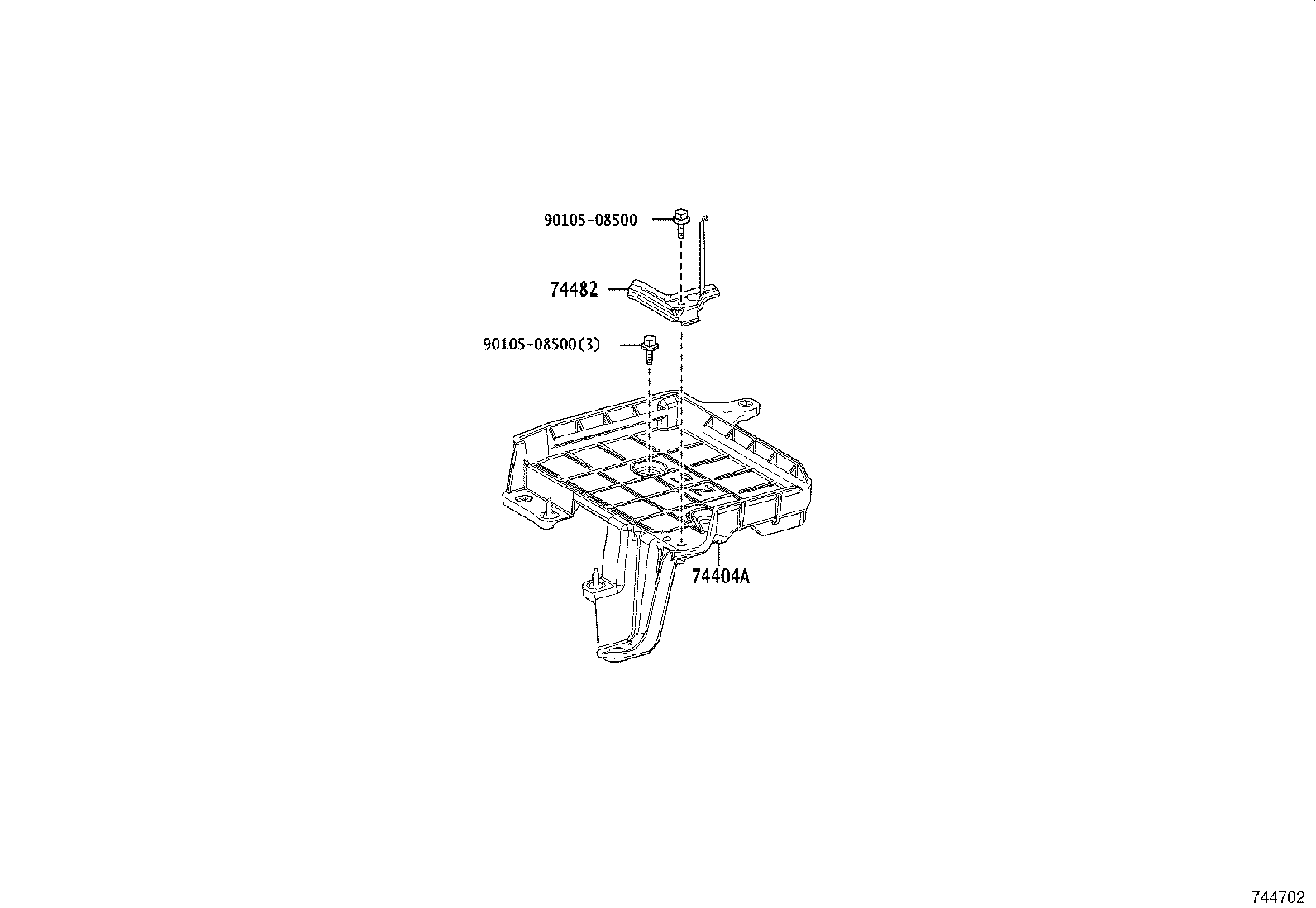

diagram 74404A 74482 9010508500 9010508500
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-10220

ZGX10

 1
74482 - CLAMP, BATTERY, NO.2
74405-10010

ZGX10

 1
Common parts
90105-08500
