ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1801- )

Click highlighted areas on diagram

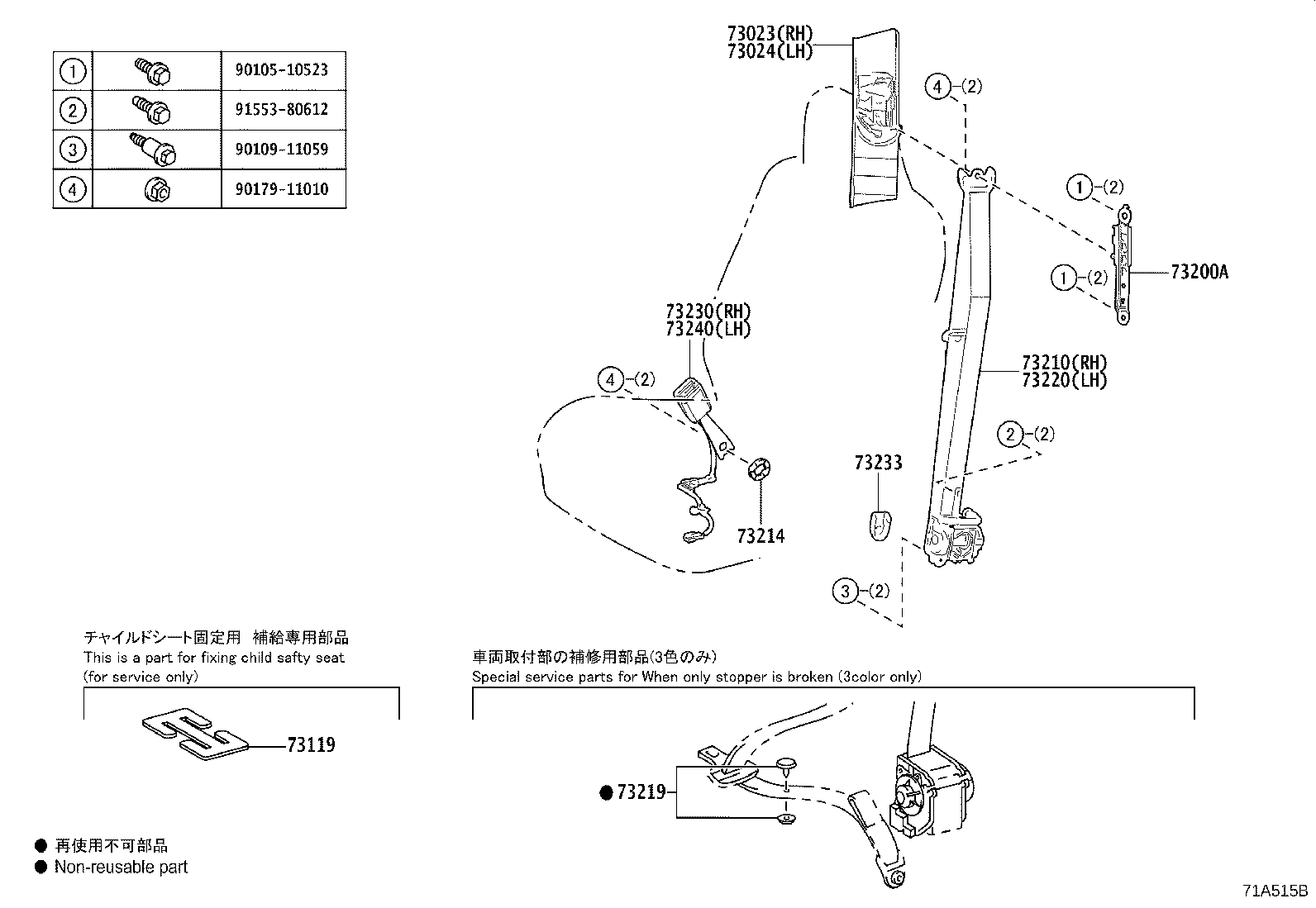

FRONT SEAT BELT

diagram 73023 73024 73119 73200A 73210 73214 73219 73220 73230 73233 73240 9010510523 9010911059 9017911010 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-58010C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73023-58010C1

ZGX10..D

BLACK,TRIM2#

 1
73023-58010C1

ZGX10..G

BLACK,TRIM2#,8#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-58010C1

ZGX10..D

BLACK,TRIM2#

 1
73024-58010C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73024-58010C1

ZGX10..G

BLACK,TRIM2#,8#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZGX10

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12070

ZGX10

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-10870C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73210-10870C0

ZGX10..D

BLACK,TRIM2#

 1
73210-10870C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

ZGX10

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

ZGX10

BEIGE

 1
73219-33010

ZGX10

BLACK

 1
73219-33020

ZGX10

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-10740C0

ZGX10..D

BLACK,TRIM2#

 1
73220-10740C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73220-10740C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-10450C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73230-10450C0

ZGX10..D

BLACK,TRIM2#

 1
73230-10450C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

ZGX10..G

BLACK,TRIM2#,8#

 2
73233-60020C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 2
73233-60020C1

ZGX10..D

BLACK,TRIM2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-10100C0

ZGX10..D

BLACK,TRIM2#

 1
73240-10110C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73240-10100C0

ZGX10..G

BLACK,TRIM2#,8#

 1
Common parts
90105-10523
90109-11059
90179-11010
91553-80612

ILLUST NO. 2 OF 2(1801- )

Click highlighted areas on diagram

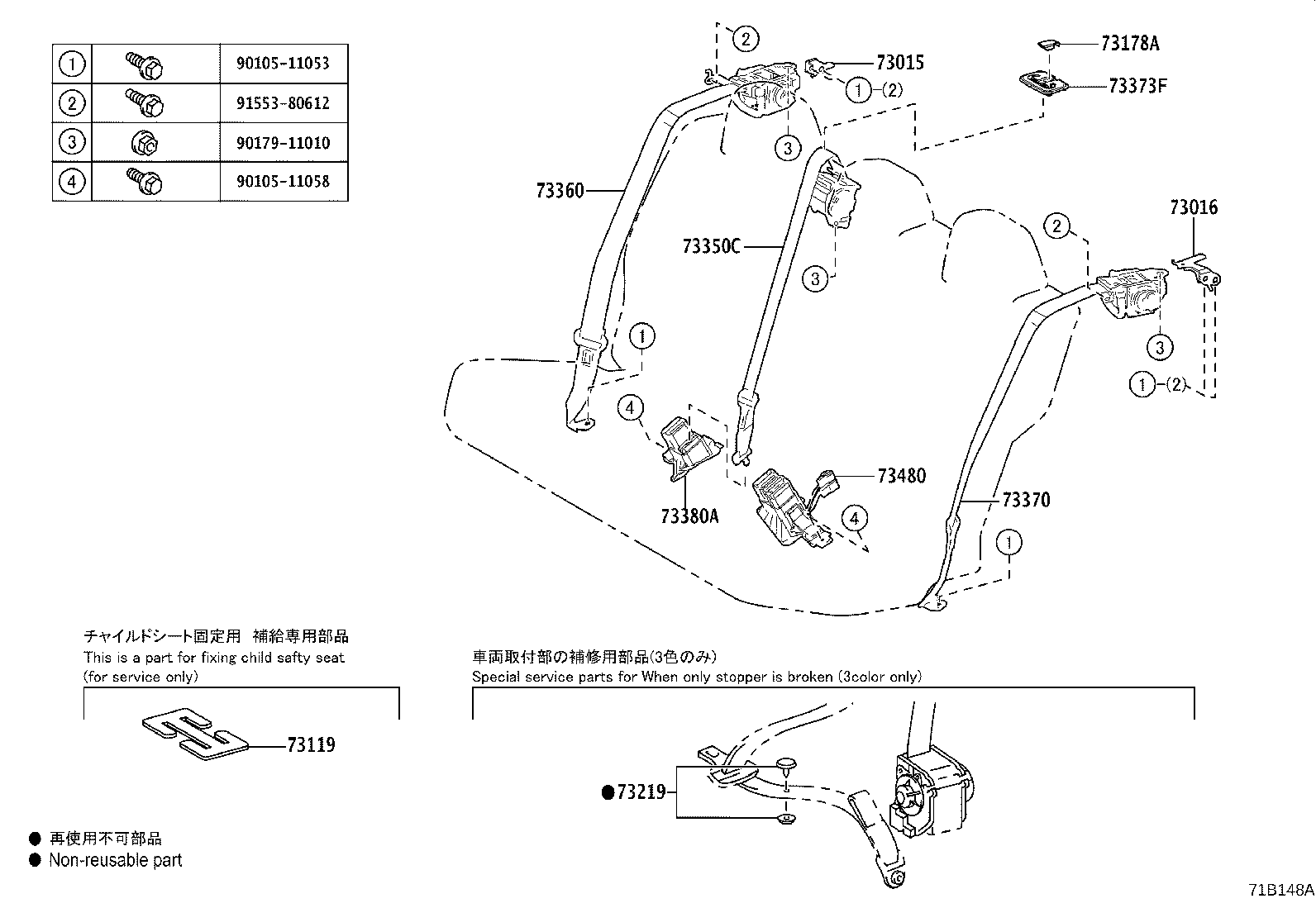

REAR SEAT BELT

diagram 73015 73016 73119 73178A 73219 73350C 73360 73370 73373F 73380A 73480 9010511053 9010511058 9017911010 9155380612
Part # Description Qty Price
73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73015-10010

ZGX10

 1
73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73016-10010

ZGX10

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZGX10

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1

ZGX10..G

BLACK,TRIM2#,8#

 1
73178-48010C1

ZGX10..D

BLACK,TRIM2#

 1
73178-48010C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

ZGX10

BEIGE

 1
73219-33010

ZGX10

BLACK

 1
73219-33020

ZGX10

GRAY

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-10140C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73350-10140C0

ZGX10..D

BLACK,TRIM2#

 1
73350-10140C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-10300C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73360-10300C0

ZGX10..D

BLACK,TRIM2#

 1
73360-10300C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-10230C0

ZGX10..D

BLACK,TRIM2#

 1
73370-10230C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73370-10230C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73373F - COVER, REAR SEAT SHOULDER BELT HOLE
73373-10030C1

ZGX10..D

BLACK,TRIM2#

 1
73373-10030C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73373-10030C1

ZGX10..G

BLACK,TRIM2#,8#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-10160C0

ZGX10..D

BLACK,TRIM2#

 1
73380-10160C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73380-10160C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-10120C0

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
73480-10120C0

ZGX10..G

BLACK,TRIM2#,8#

 1
73480-10120C0

ZGX10..D

BLACK,TRIM2#

 1
Common parts
90105-11053
90105-11058
90179-11010
91553-80612
