ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
(1801- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

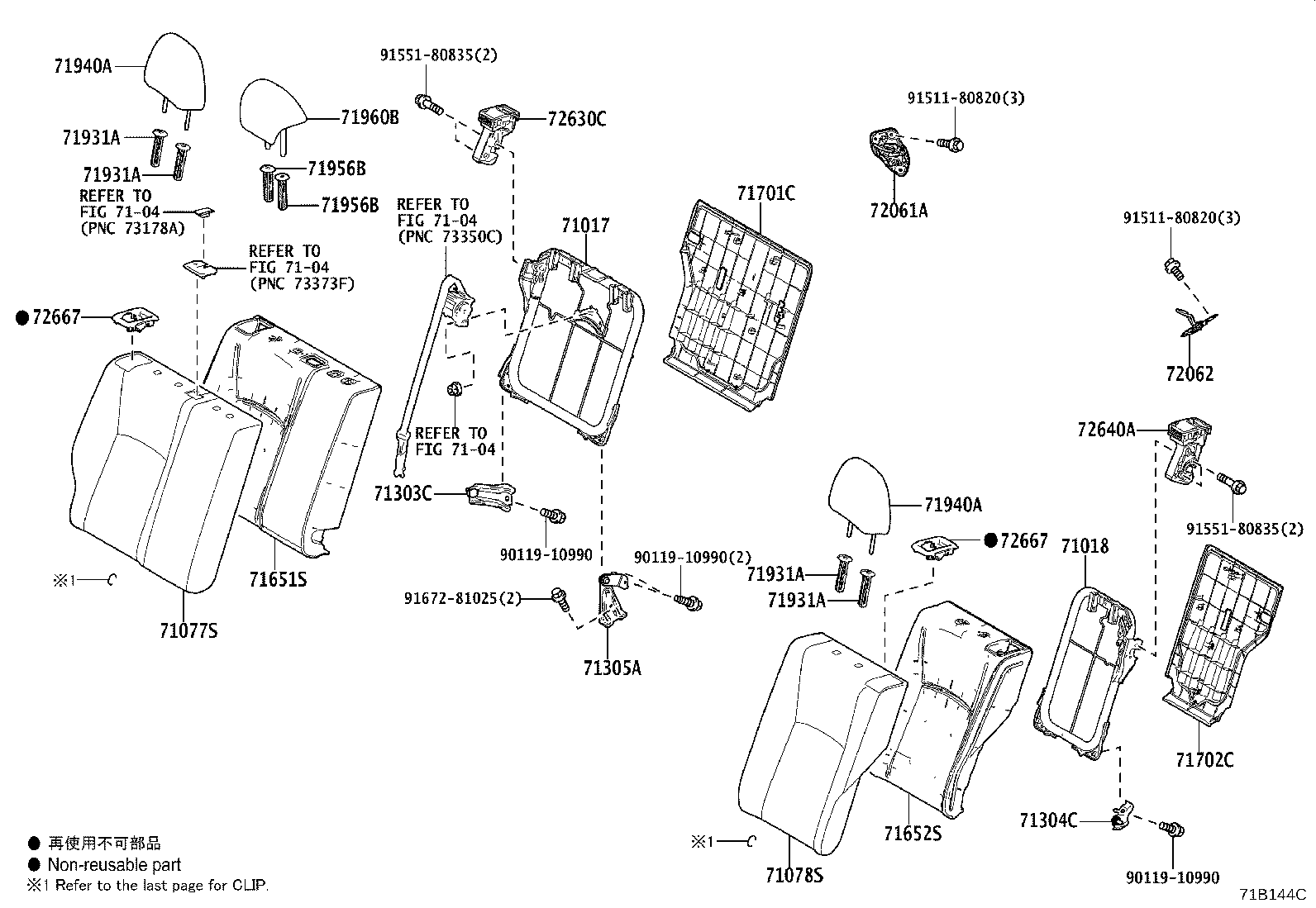

ILLUST NO. 1 OF 2(1801- )
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-10130 |
ZGX10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47140 |
ZGX10 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-10B90C2 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 71077-10B70C3 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 71077-10B70C3 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2# |
1 | ||
| 71077-10C00C3 |
ZGX10..G BLACK,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-10B10B3 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),DARK GREY,TRIM2# |
1 | ||
| 71078-10B10B3 |
ZGX10..D DARK GREY,TRIM2# |
1 | ||
| 71078-10B30C2 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 71078-10B40C3 |
ZGX10..G BLACK,TRIM8# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-10060 |
ZGX10 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-10100 |
ZGX10 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-10060 |
ZGX10 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-10320 |
ZGX10 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-10240 |
ZGX10 |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-10010 |
ZGX10 |
1 | ||
| 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-10010 |
ZGX10 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010C2 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010C2 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010C2 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-47010C2 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
4 | ||
| 71955-47010C2 |
ZGX10..G W/O(LOCK),NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2# |
4 | ||
| 71955-47010C2 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-10261C0 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10261C2 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10240B4 |
ZGX10..D DARK GREY,TRIM2# |
2 | ||
| 71940-10260C0 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10240B4 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),DARK GREY,TRIM2# |
2 | ||
| 71940-10250C3 |
ZGX10..E BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-10261C0 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10261C2 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10240B4 |
ZGX10..D DARK GREY,TRIM2# |
2 | ||
| 71940-10260C0 |
ZGX10..G BLACK,TRIM8# |
2 | ||
| 71940-10240B4 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),DARK GREY,TRIM2# |
2 | ||
| 71940-10250C3 |
ZGX10..E BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZGX10..D W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
ZGX10..E W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
ZGX10..G W(LOCK),BLACK,TRIM2#,8# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZGX10..D W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
ZGX10..E W(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..G W/O(LOCK),BLACK,TRIM2#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..E W/O(LOCK),BLACK,TRIM2#,4#,8# |
1 | ||
| 71931-47030C4 |
ZGX10..D W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050C5 |
ZGX10..G W(LOCK),BLACK,TRIM2#,8# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-10041 |
ZGX10..G |
1 | ||
| 71960-10040C3 |
ZGX10..G BLACK,TRIM8# |
1 | ||
| 71960-10070C0 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 71960-10041C4 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2#,8# |
1 | ||
| 71960-10041C3 |
ZGX10..G BLACK,TRIM8# |
1 | ||
| 71960-10041C4 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 71960-10040C4 |
ZGX10..D DARK GREY,TRIM2# |
1 | ||
| 72061A - BASE SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72061-10010 |
ZGX10 |
1 | ||
| 72062 - BASE SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72062-10010 |
ZGX10 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47050C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 72630-47050C2 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 72630-47050C2 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47050C2 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 72640-47050C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 72640-47050C2 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
ZGX10..E BLACK,TRIM2#,4#,8# |
2 | ||
| 72667-47010C1 |
ZGX10..G BLACK,TRIM2#,8# |
2 | ||
| 72667-47010C1 |
ZGX10..D BLACK,TRIM2# |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
ZGX10..E BLACK,TRIM2#,4#,8# |
2 | ||
| 72667-47010C1 |
ZGX10..G BLACK,TRIM2#,8# |
2 | ||
| 72667-47010C1 |
ZGX10..D BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 91511-80820 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 7104 | ||||

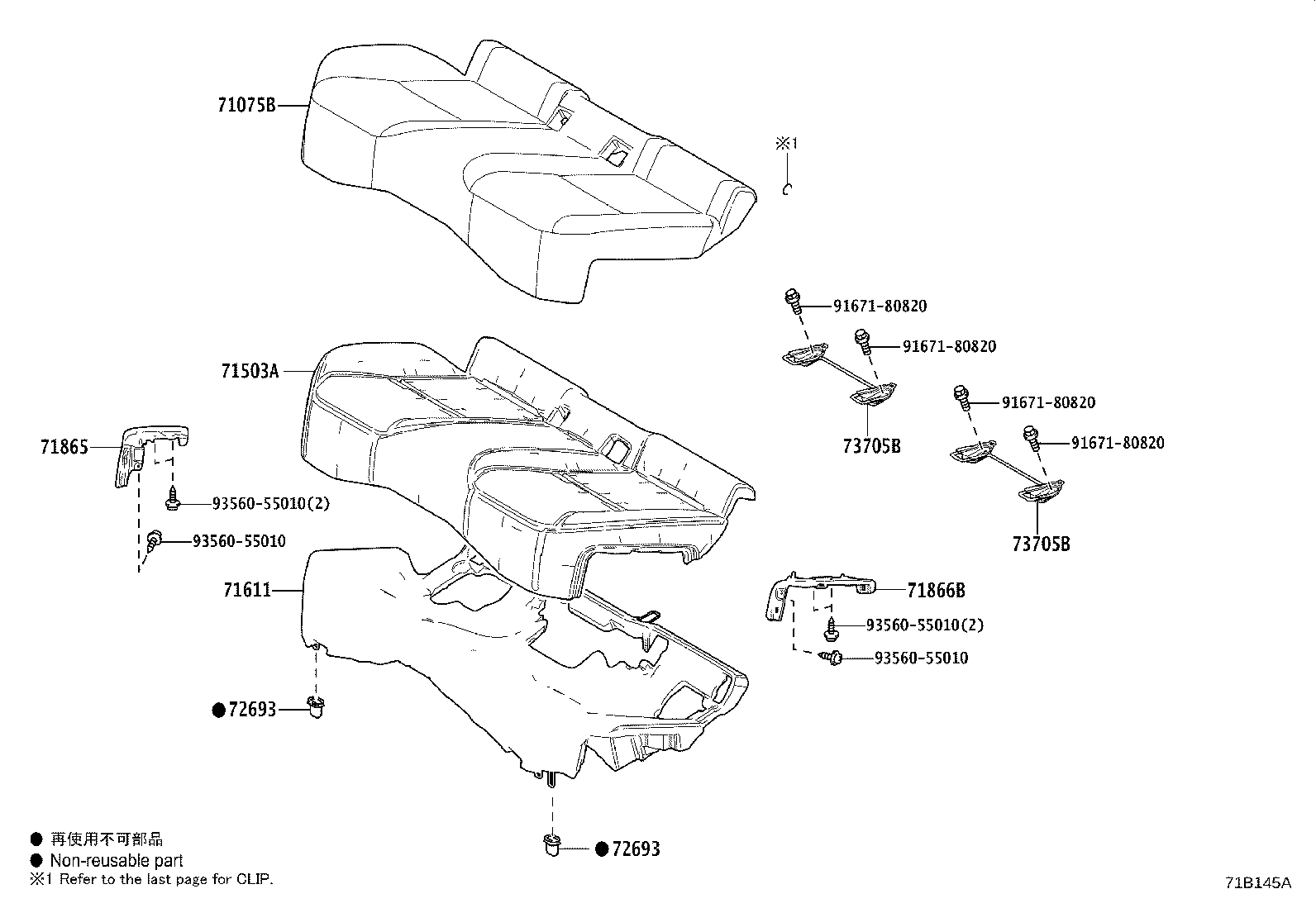

ILLUST NO. 2 OF 2(1801- )
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-10B90B3 |
ZGX10..G NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),DARK GREY,TRIM2# |
1 | ||
| 71075-10B90B3 |
ZGX10..D DARK GREY,TRIM2# |
1 | ||
| 71075-10C10C3 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 71075-10C20C2 |
ZGX10..G BLACK,TRIM8# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-10140 |
ZGX10 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-10120 |
ZGX10 |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-10010 |
ZGX10 |
1 | ||
| 71866B - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-10010 |
ZGX10 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZGX10 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZGX10 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-10010 |
ZGX10 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-10010 |
ZGX10 |
2 | ||
| Common parts | ||||
| 91671-80820 | ||||
| 93560-55010 | ||||
