ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )E,G,N

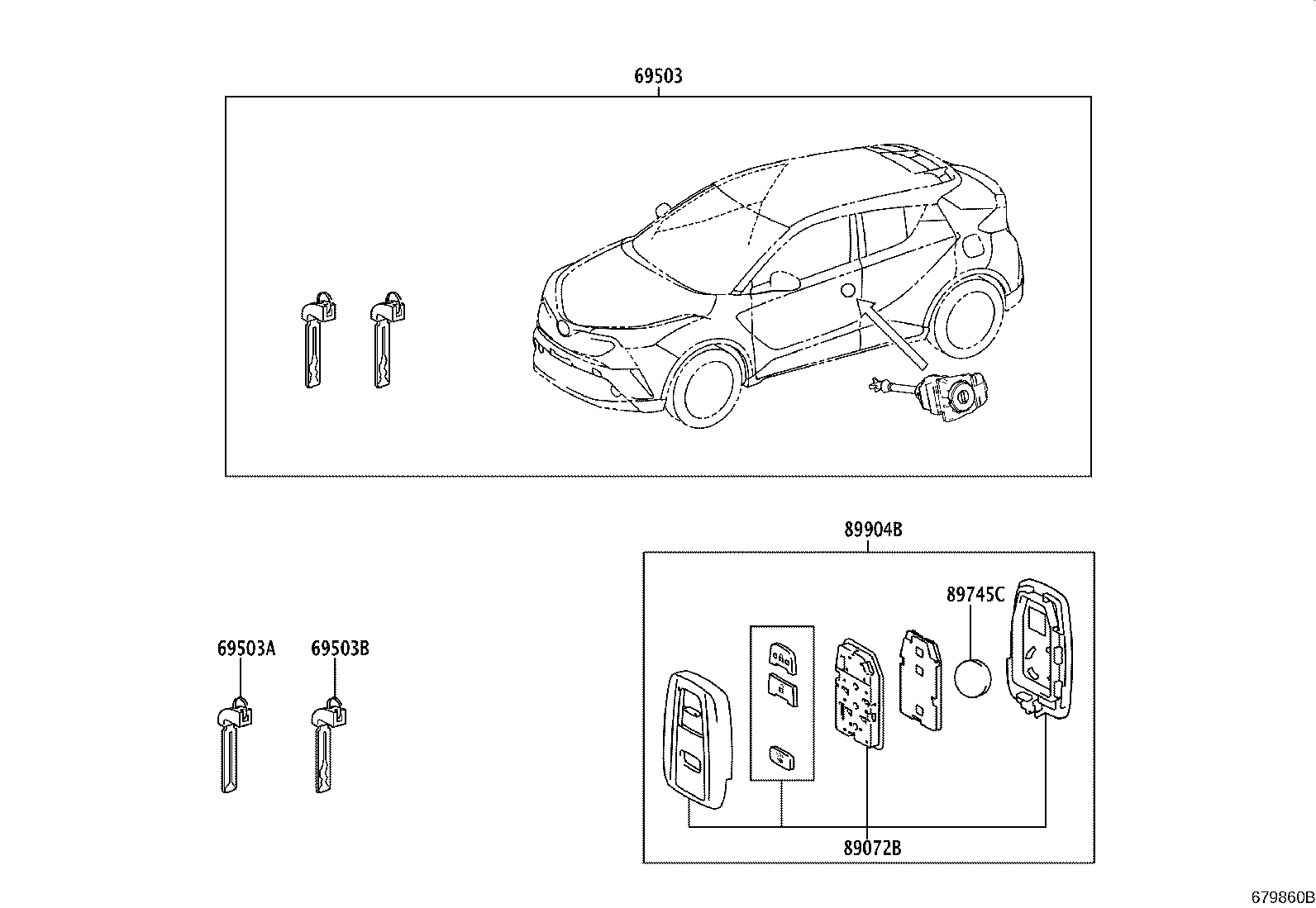

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
89704-10072

ZGX10..D

 1
69005-10440

ZGX10..E,G

 1
69503A - KEY, BLANK
69515-16110

ZGX10..E,G

MASTER KEY,W(*68)

 1
69515-47030

ZGX10..E,G

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

ZGX10..E,G

MASTER KEY,W(*68)

 2
69515-16100

ZGX10..E,G

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-10050

ZGX10..E,G

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ZGX10..E,G

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-10050

ZGX10..E,G

 2
89904-10051

ZGX10..E,G

 2
