ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

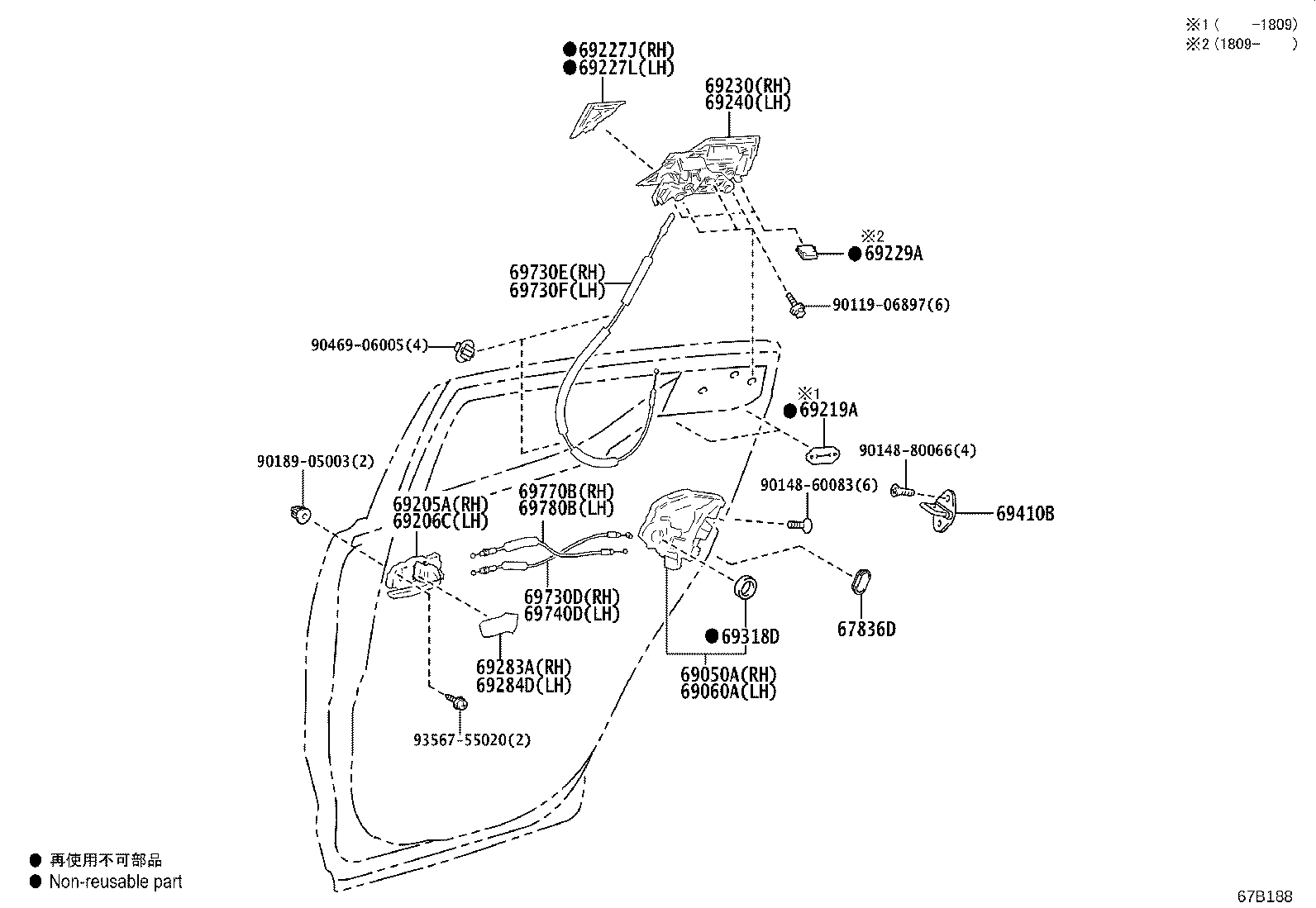

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69205A 69206C 69219A 69227J 69227L 69229A 69230 69240 69283A 69284D 69318D 69410B 69730D 69730E 69730F 69740D 69770B 69780B 9011906897 9014860083 9014880066 9018905003 9046906005 9356755020
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-33030

ZGX10

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-10070

ZGX10..E,G

 1
69050-10080

ZGX10..D

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-10080

ZGX10..D

 1
69060-10070

ZGX10..E,G

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-10100C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
69205-10100C1

ZGX10..G

BLACK,TRIM2#,8#

 1
69205-10100C1

ZGX10..D

BLACK,TRIM2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-10100C1

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
69206-10100C1

ZGX10..G

BLACK,TRIM2#,8#

 1
69206-10100C1

ZGX10..D

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-10030

ZGX10

BLACK

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69228-10020

ZGX10

BLACK

 1
69229A - CAP, DOOR OUTSIDE HANDLE, NO.3
69229-10010

ZGX10

 4
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-10101E1

ZGX10..E,G

ORANGE ME.,2TC ,4R8

 1
69230-10101A0

ZGX10..E,G

WHITE PEARL CS.,070 ,2NA

 1
69230-10101E1

ZGX10..D

ORANGE ME.,4R8

 1
69230-10101C0

ZGX10..D

BLACK MC.,209

 1
69230-10101B0

ZGX10..D

METAL STREAM ME,1K0

 1
69230-10101J1

ZGX10..D

NEBULA BLUE ME.,8X2

 1
69230-10101C0

ZGX10..E,G

BLACK MC.,209 ,2TA

 1
69230-10101B1

ZGX10..D

GRAY ME.,1G3

 1
69230-10101G1

ZGX10

OXIDE BRONZE ME.,6X1

 1
69230-10101B0

ZGX10..E,G

METAL STREAM ME,1K0 ,2NK

 1
69230-10101D1

ZGX10..D

EMOTIONAL RED 2,3U5

 1
69230-10101D1

ZGX10..E,G

EMOTIONAL RED 2,2TB ,3U5

 1
69230-10101A0

ZGX10..D

WHITE PEARL CS.,070

 1
69230-10101J1

ZGX10..E,G

NEBULA BLUE ME.,2NH ,8X2

 1
69230-10101B1

ZGX10..E,G

GRAY ME.,1G3 ,2NB

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-10101A0

ZGX10..E,G

WHITE PEARL CS.,070 ,2NA

 1
69240-10101B0

ZGX10..D

METAL STREAM ME,1K0

 1
69240-10101B1

ZGX10..E,G

GRAY ME.,1G3 ,2NB

 1
69240-10101B1

ZGX10..D

GRAY ME.,1G3

 1
69240-10101A0

ZGX10..D

WHITE PEARL CS.,070

 1
69240-10101E1

ZGX10..D

ORANGE ME.,4R8

 1
69240-10101C0

ZGX10..D

BLACK MC.,209

 1
69240-10101C0

ZGX10..E,G

BLACK MC.,209 ,2TA

 1
69240-10101J1

ZGX10..D

NEBULA BLUE ME.,8X2

 1
69240-10101E1

ZGX10..E,G

ORANGE ME.,2TC ,4R8

 1
69240-10101D1

ZGX10..D

EMOTIONAL RED 2,3U5

 1
69240-10101B0

ZGX10..E,G

METAL STREAM ME,1K0 ,2NK

 1
69240-10101D1

ZGX10..E,G

EMOTIONAL RED 2,2TB ,3U5

 1
69240-10101G1

ZGX10

OXIDE BRONZE ME.,6X1

 1
69240-10101J1

ZGX10..E,G

NEBULA BLUE ME.,2NH ,8X2

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30060C2

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
69283-30060C2

ZGX10..D

BLACK,TRIM2#

 1
69283-30060C2

ZGX10..G

BLACK,TRIM2#,8#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30060C2

ZGX10..G

BLACK,TRIM2#,8#

 1
69284-30060C2

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
69284-30060C2

ZGX10..D

BLACK,TRIM2#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZGX10

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-47010

ZGX10

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-10011

ZGX10

 1
69730E - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730-10020

ZGX10

 1
69730F - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
69730-10020

ZGX10

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-10011

ZGX10

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-10061

ZGX10

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-10061

ZGX10

 1
Common parts
90119-06897
90148-60083
90148-80066
90189-05003
90469-06005
93567-55020
