ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1801- )

Click highlighted areas on diagram

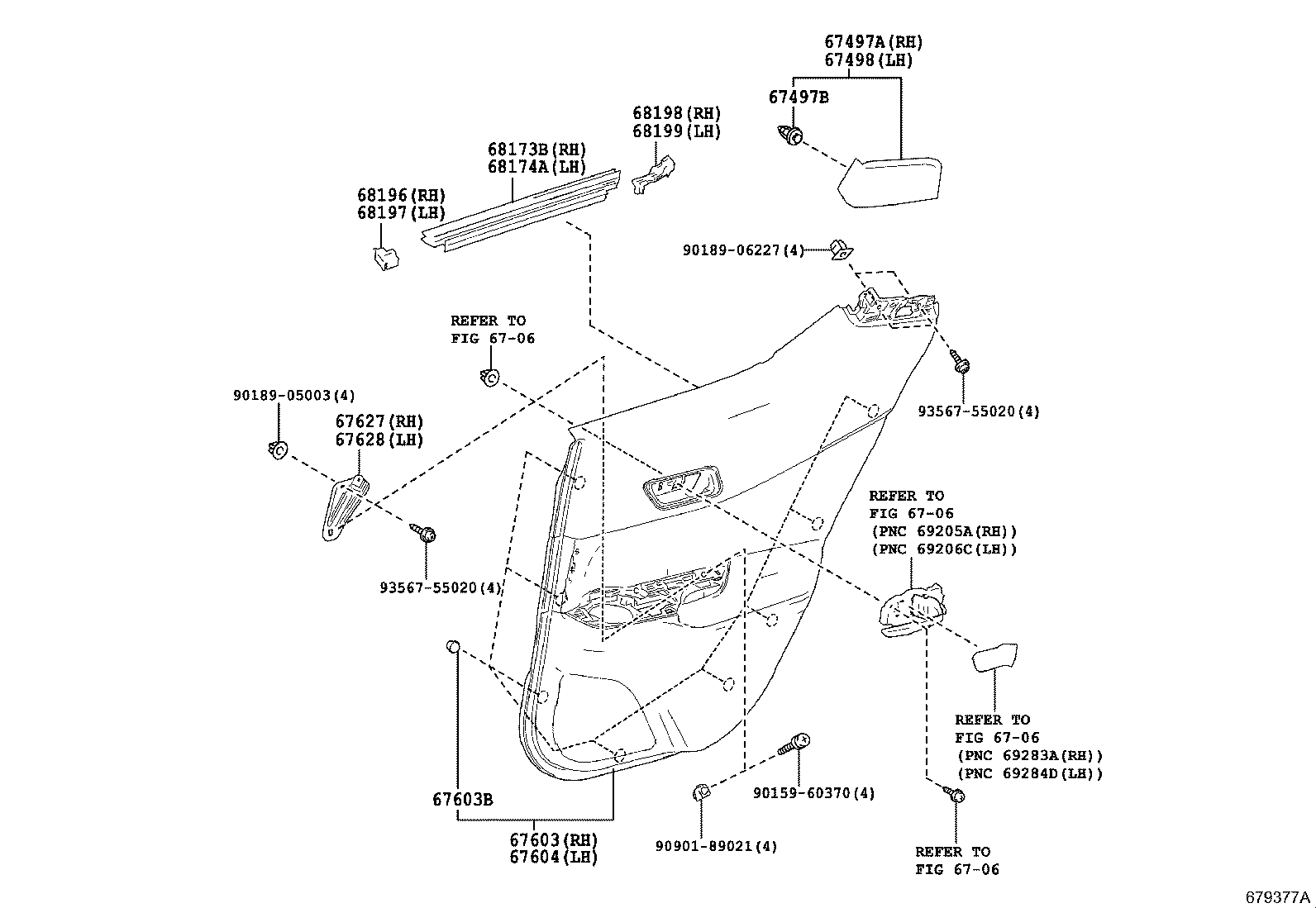

DOOR TRIM

diagram 6706 6706 6706 6706 67497A 67497B 67498 67603 67603B 67604 67627 67628 68173B 68174A 68196 68197 68198 68199 9015960370 9018905003 9018906227 9090189021 9356755020 9356755020
Part # Description Qty Price
67497A - BRACKET, REAR DOOR REAR FRAME, RH
67497-10010C1

ZGX10..D,E

BLACK,TRIM2#

 1
67497-10010C1

ZGX10..G

BLACK,TRIM2#,8#

 1
67497B - CLIP(FOR REAR DOOR REAR FRAME BRACKET)
90467-09206

ZGX10

 2
67498 - BRACKET, REAR DOOR REAR FRAME, LH
67498-10010C1

ZGX10..G

BLACK,TRIM2#,8#

 1
67498-10010C1

ZGX10..D,E

BLACK,TRIM2#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-10A10C0

ZGX10..G

BLACK,TRIM2#,8#

 1
67630-10A10C0

ZGX10..D

BLACK,TRIM2#

 1
67630-10A10C1

ZGX10..E

BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

ZGX10

 16
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-10A10C1

ZGX10..E

BLACK,TRIM2#

 1
67640-10A10C0

ZGX10..D

BLACK,TRIM2#

 1
67640-10A10C0

ZGX10..G

BLACK,TRIM2#,8#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67625-10010

ZGX10

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67635-10010

ZGX10

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-10070

ZGX10

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-10060

ZGX10

 1
68196 - SEAL, REAR DOOR BELT, RH
68196-10010

ZGX10

 1
68197 - SEAL, REAR DOOR BELT, LH
68197-10010

ZGX10

 1
68198 - SEAL, REAR DOOR BELT, REAR RH
68198-10020

ZGX10

 1
68199 - SEAL, REAR DOOR BELT, REAR LH
68199-10010

ZGX10

 1
Common parts
90159-60370
90189-05003
90189-06227
90901-89021
93567-55020
Linked diagrams
6706
