ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)

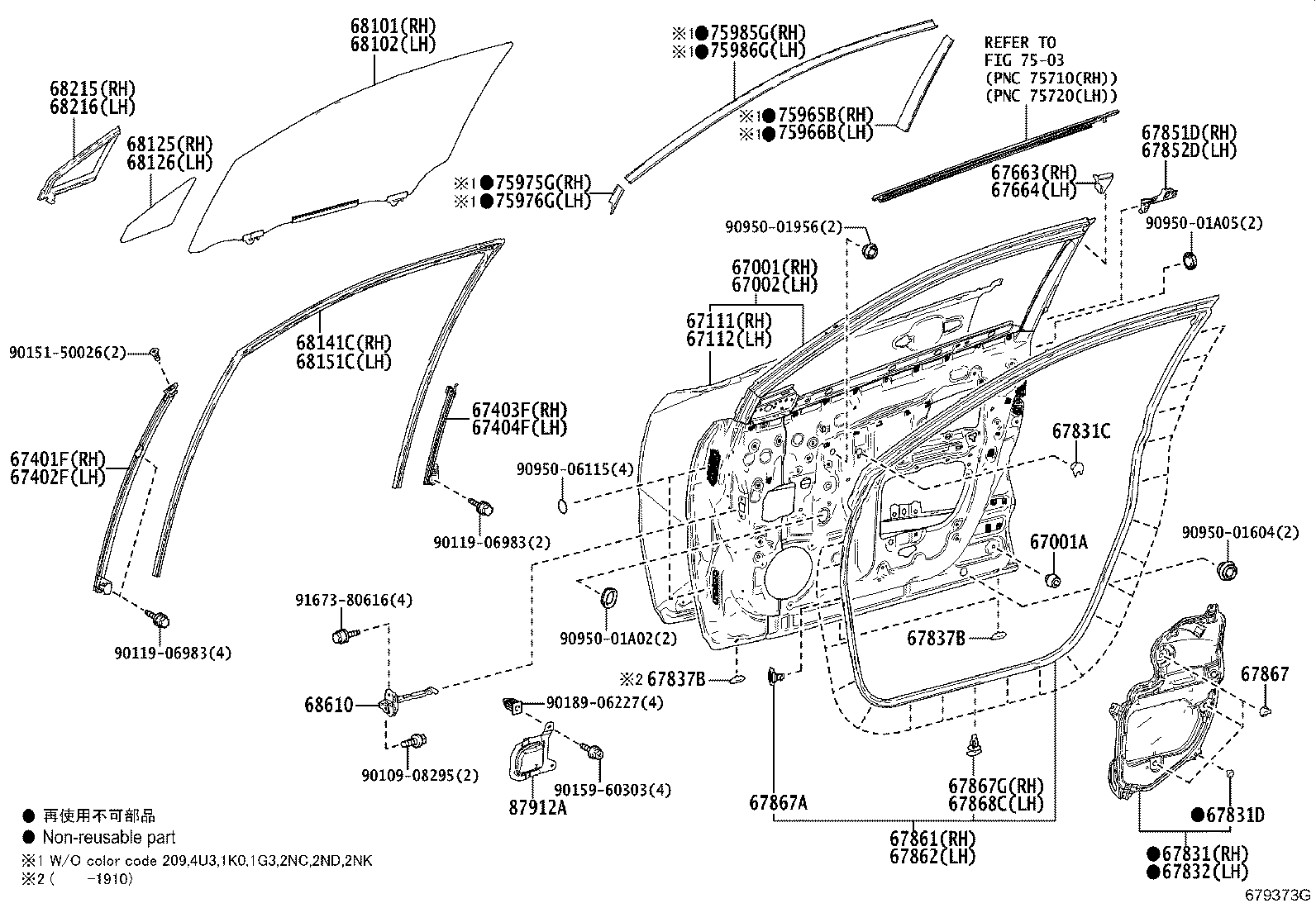

ILLUST NO. 1 OF 2(1801- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-10662 |
ZGX10 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ZGX10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-10662 |
ZGX10 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-10360 |
ZGX10 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-10360 |
ZGX10 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-10141 |
ZGX10 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-10131 |
ZGX10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-10120 |
ZGX10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-10120 |
ZGX10 |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-10010 |
ZGX10 |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-10010 |
ZGX10 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-10180 |
ZGX10 |
1 | ||
| 67831C - COVER, FRONT DOOR SERVICE HOLE | ||||
| 67833-47010 |
ZGX10 |
2 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
ZGX10 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-10080 |
ZGX10 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-10041 |
ZGX10 |
4 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-10041 |
ZGX10 |
4 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-10030 |
ZGX10 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-10030 |
ZGX10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-10230 |
ZGX10 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-10230 |
ZGX10 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-47010 |
ZGX10 |
6 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52010 |
ZGX10 |
2 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZGX10 |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZGX10 |
22 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-10030 |
ZGX10 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-10030 |
ZGX10 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-10010 |
ZGX10 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-10010 |
ZGX10 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-10221 |
ZGX10 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-10071 |
ZGX10 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-10010 |
ZGX10 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-10010 |
ZGX10 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10080 |
ZGX10 |
2 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-10010 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-10010 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-10150 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-10120 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-10841 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-10821 |
ZGX10 0 OR 1PIECE,REF.ILL. |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-10020 |
ZGX10 LH |
1 | ||
| 87912-10010 |
ZGX10 RH |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01604 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 90950-06115 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||

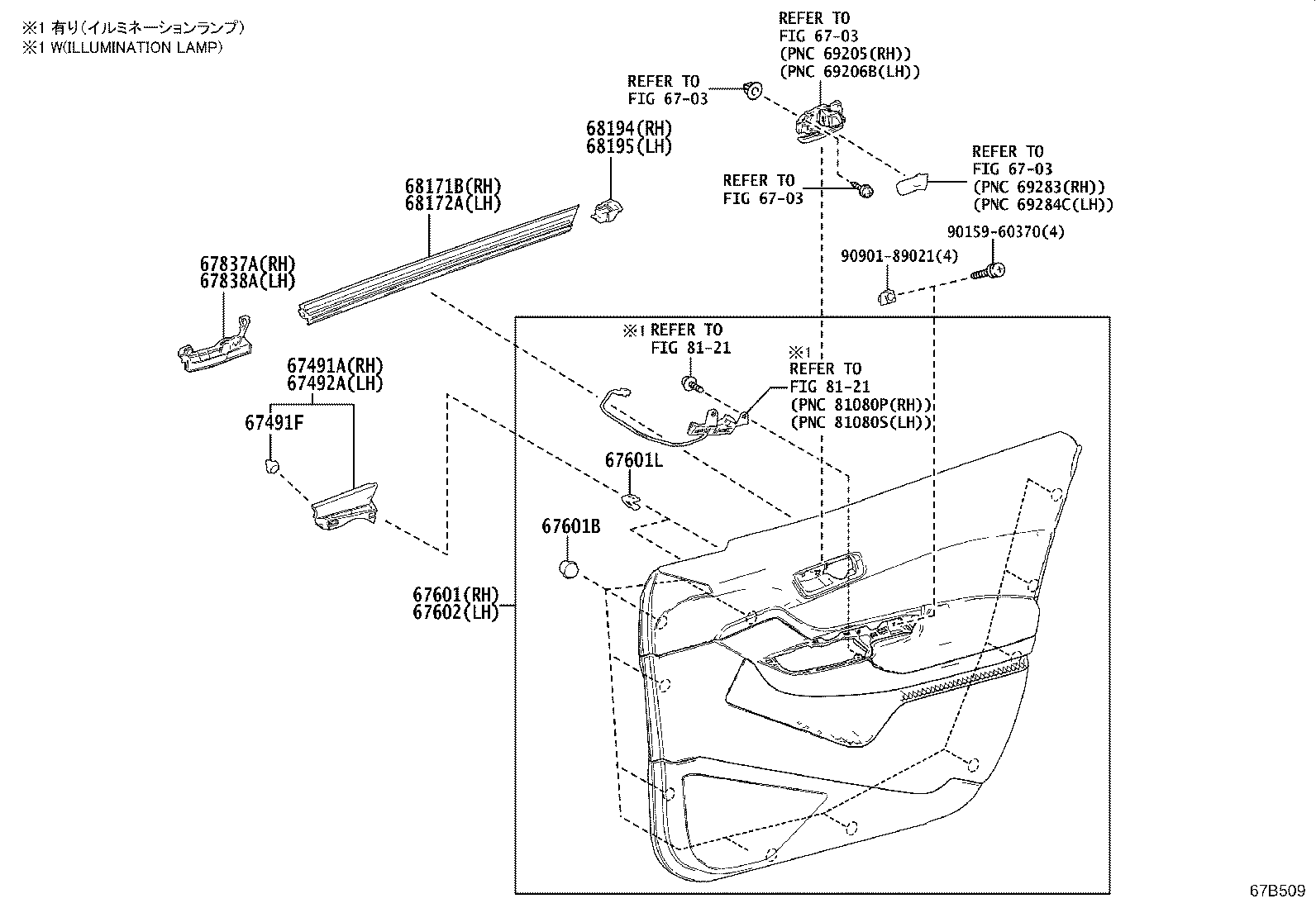

ILLUST NO. 2 OF 2(1910- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-10170C1 |
ZGX10..D,E BLACK,TRIM2# |
1 | ||
| 67491-10170C1 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-09203 |
ZGX10 |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-10170C1 |
ZGX10..D,E BLACK,TRIM2# |
1 | ||
| 67492-10170C1 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-10A00C6 |
ZGX10..G BLACK/ANODIZED BLUE,TRIM80 |
1 | ||
| 67610-10A20C0 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 67610-10A00C7 |
ZGX10..D BLACK/METAL STREAM,TRIM2# |
1 | ||
| 67610-10A00C7 |
ZGX10..G BLACK/METAL STREAM,TRIM2#,81 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZGX10 |
20 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-12080 |
ZGX10 |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-10A00C7 |
ZGX10..D BLACK/METAL STREAM,TRIM2# |
1 | ||
| 67620-10A00C7 |
ZGX10..G BLACK/METAL STREAM,TRIM2#,81 |
1 | ||
| 67620-10A20C0 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 67620-10A00C6 |
ZGX10..G BLACK/ANODIZED BLUE,TRIM80 |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-10030 |
ZGX10 |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-10030 |
ZGX10 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-10150 |
ZGX10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-10130 |
ZGX10 |
1 | ||
| 68194 - SEAL, FRONT DOOR BELT, RH | ||||
| 68194-10010 |
ZGX10 |
1 | ||
| 68195 - SEAL, FRONT DOOR BELT, LH | ||||
| 68195-10010 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
