ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

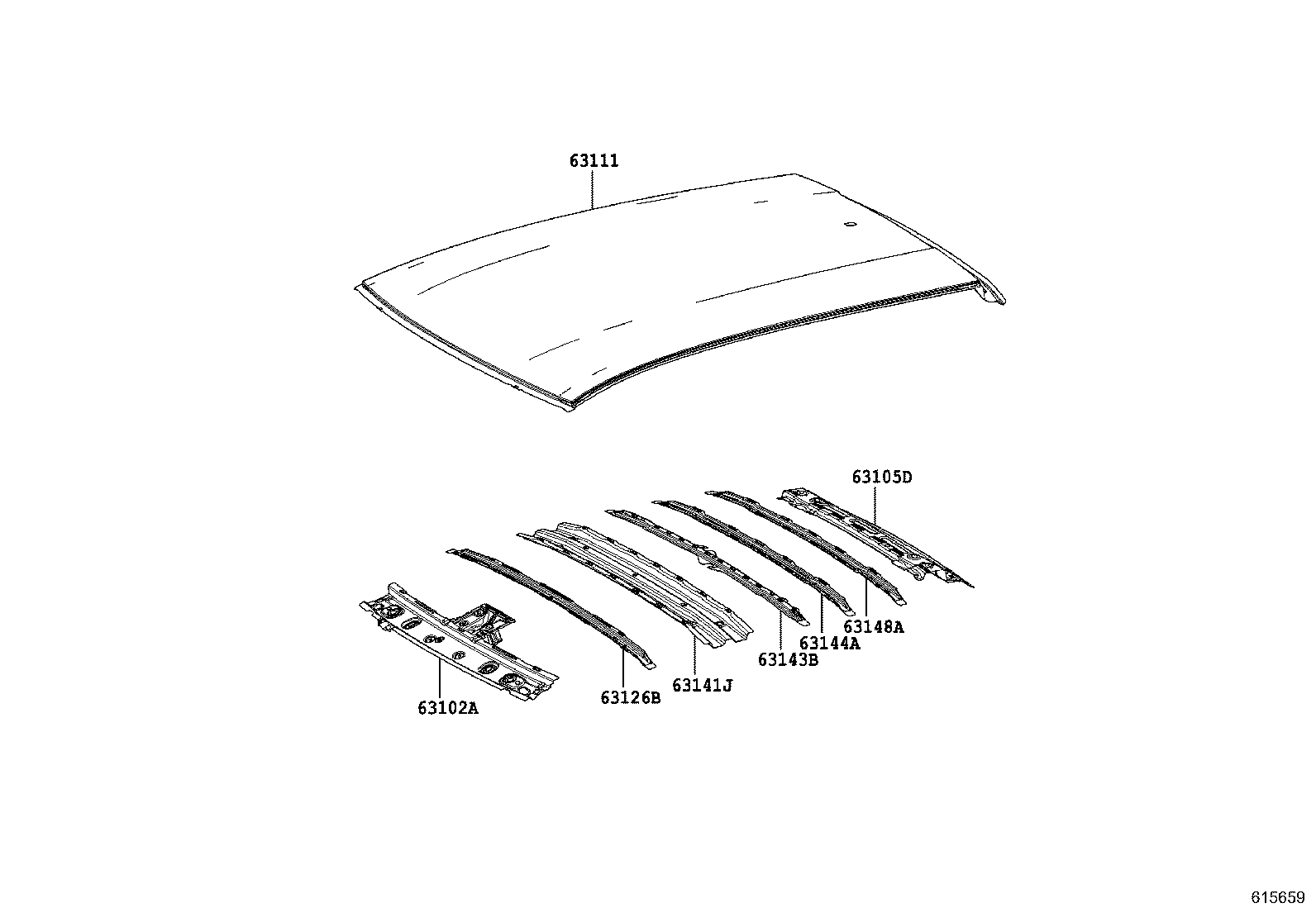

Click highlighted areas on diagram

diagram 63102A 63105D 63111 63126B 63141J 63143B 63144A 63148A
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-10062

ZGX10

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-10100

ZGX10

 1
63111 - PANEL, ROOF
63111-10250

ZGX10

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-10010

ZGX10

 1
63141J - REINFORCEMENT, ROOF PANEL
63141-10080

ZGX10

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-10050

ZGX10

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-10020

ZGX10

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-10030

ZGX10

 1
