ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

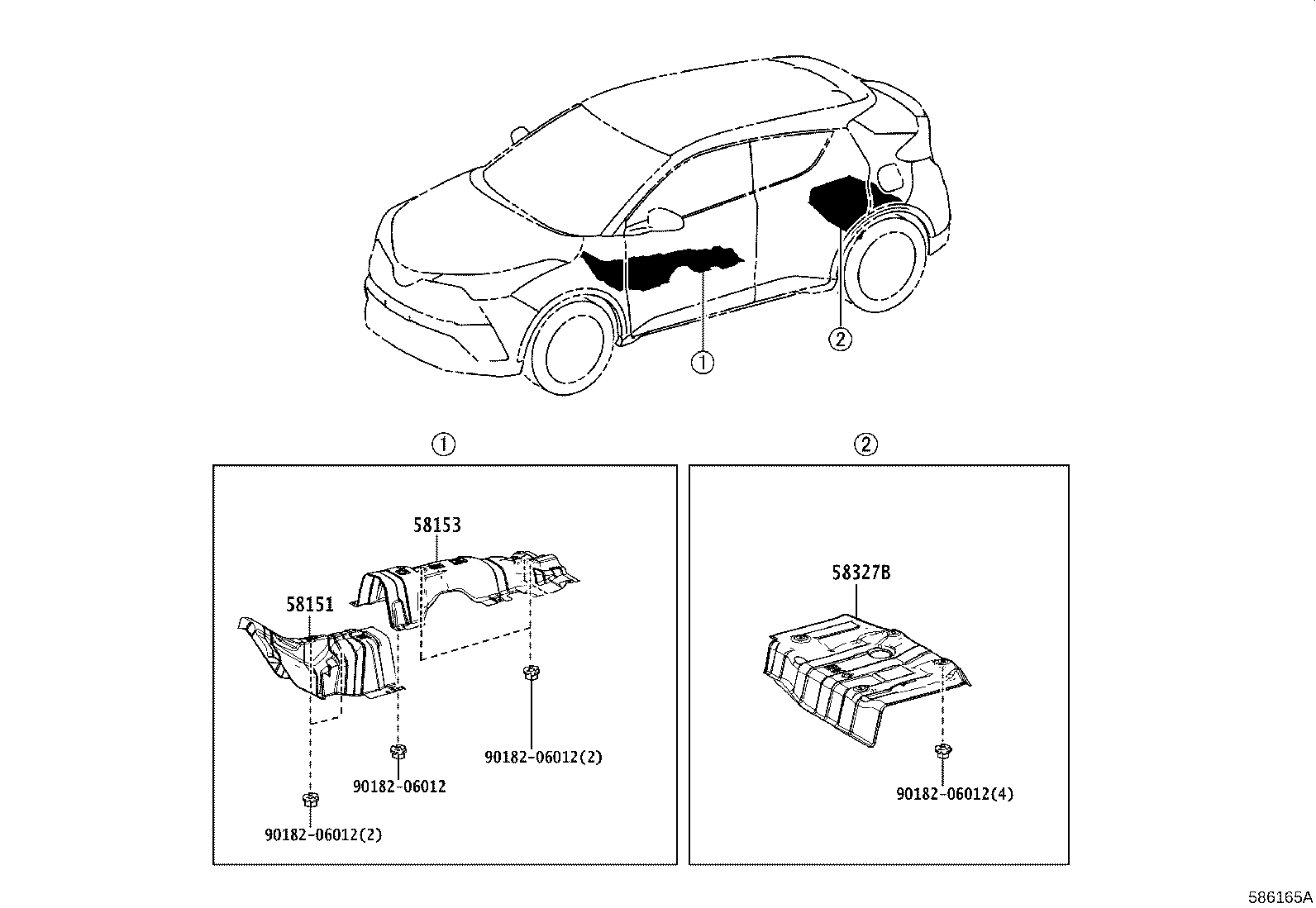

Click highlighted areas on diagram

diagram 58151 58153 58327B 9018206012 9018206012 9018206012 9018206012
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-10051

ZGX10

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-10030

ZGX10

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-10061

ZGX10

 1
Common parts
90182-06012
