ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

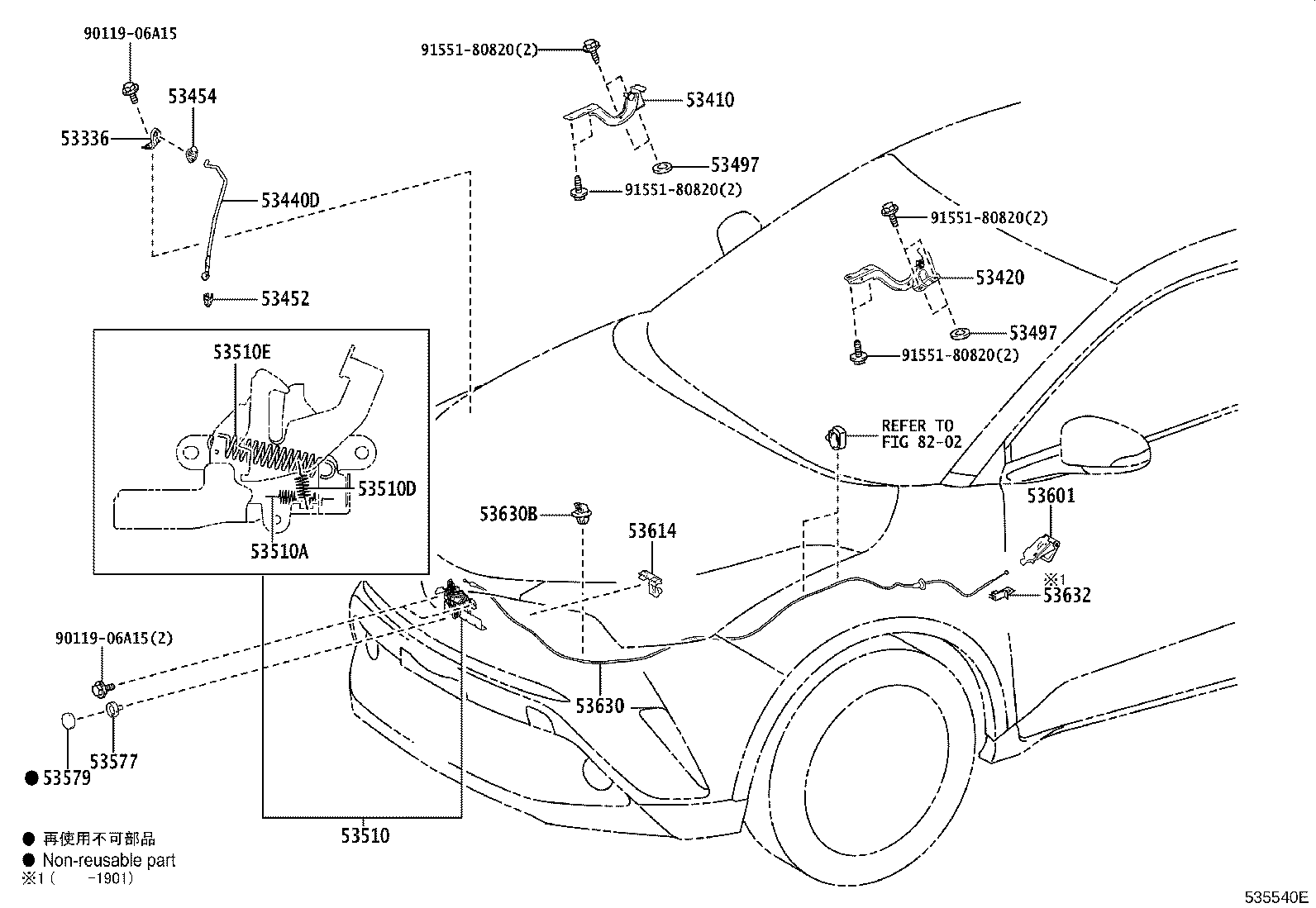

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53336 - BRACKET, HOOD STAY, RH | ||||
| 53336-10010 |
ZGX10 |
1 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-10100 |
ZGX10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-10090 |
ZGX10 |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-10090 |
ZGX10 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-10010 |
ZGX10 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-12030 |
ZGX10 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZGX10 T=0.5 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZGX10 T=0.5 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-10260 |
ZGX10 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
ZGX10 WD=0.9,CW=20.75 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZGX10 WD=1.2,CW=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
ZGX10 WD=1.6,CW=12 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ZGX10 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ZGX10 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-30100C0 |
ZGX10..E BLACK,TRIM2#,4#,8# |
1 | ||
| 53601-30100C0 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 53601-30100C0 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-10030 |
ZGX10 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-10281 |
ZGX10 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06A15 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
