ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

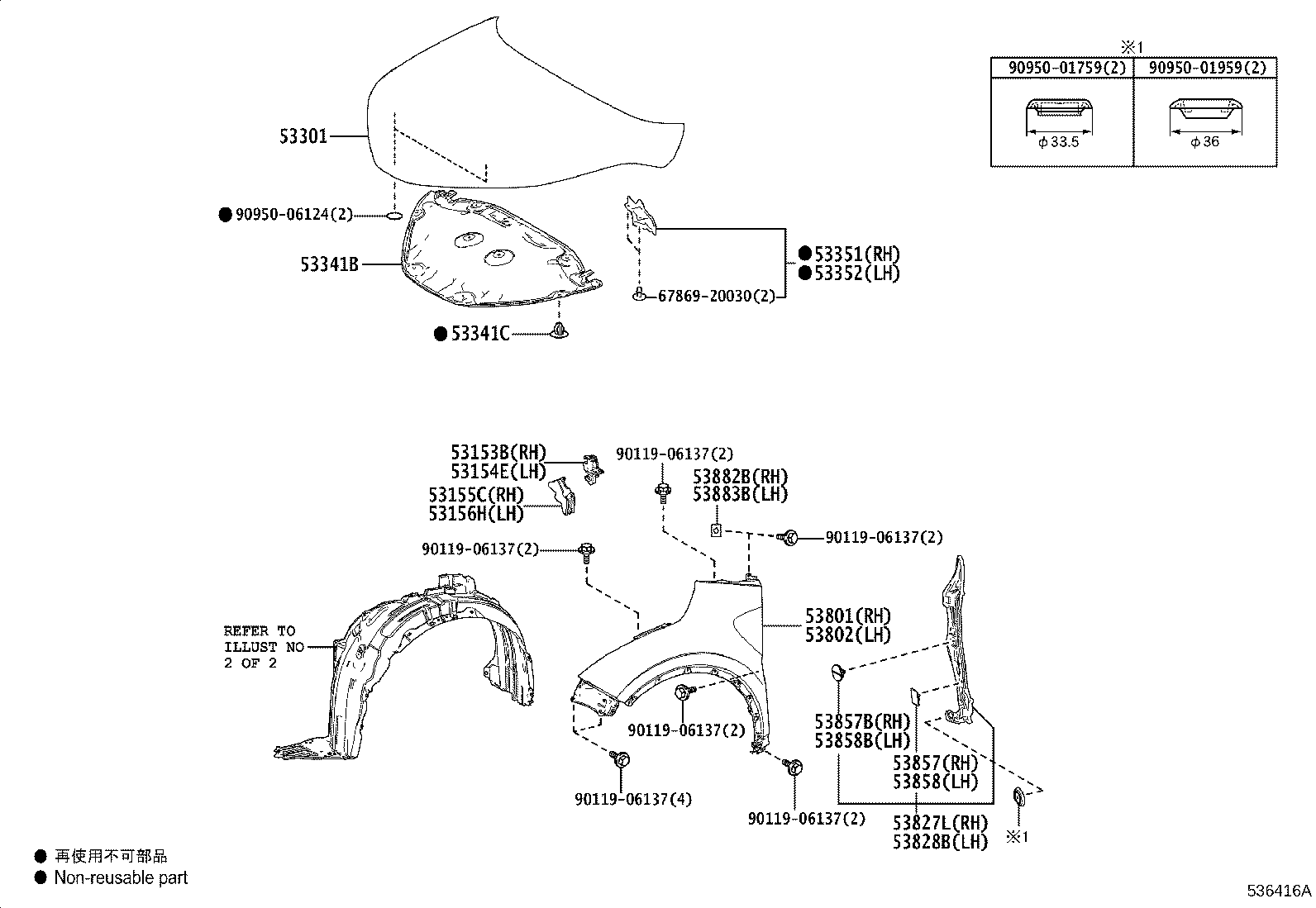

ILLUST NO. 1 OF 2(1801- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-10020 |
ZGX10 |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-10010 |
ZGX10 |
1 | ||
| 53155C - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-10100 |
ZGX10 |
1 | ||
| 53156H - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-10020 |
ZGX10 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-10380 |
ZGX10 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-10060 |
ZGX10 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZGX10 |
8 | ||
| 53351 - PANEL, HOOD SIDE, RH | ||||
| 53351-10010 |
ZGX10 |
1 | ||
| 53352 - PANEL, HOOD SIDE, LH | ||||
| 53352-10010 |
ZGX10 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-10600 |
ZGX10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-10700 |
ZGX10 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-10050 |
ZGX10 |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-10050 |
ZGX10 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
ZGX10 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
ZGX10 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
ZGX10 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZGX10 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ZGX10 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
ZGX10 |
1 | ||
| Common parts | ||||
| 67869-20030 | ||||
| 90119-06137 | ||||
| 90950-01759 | ||||
| 90950-01959 | ||||
| 90950-06124 | ||||

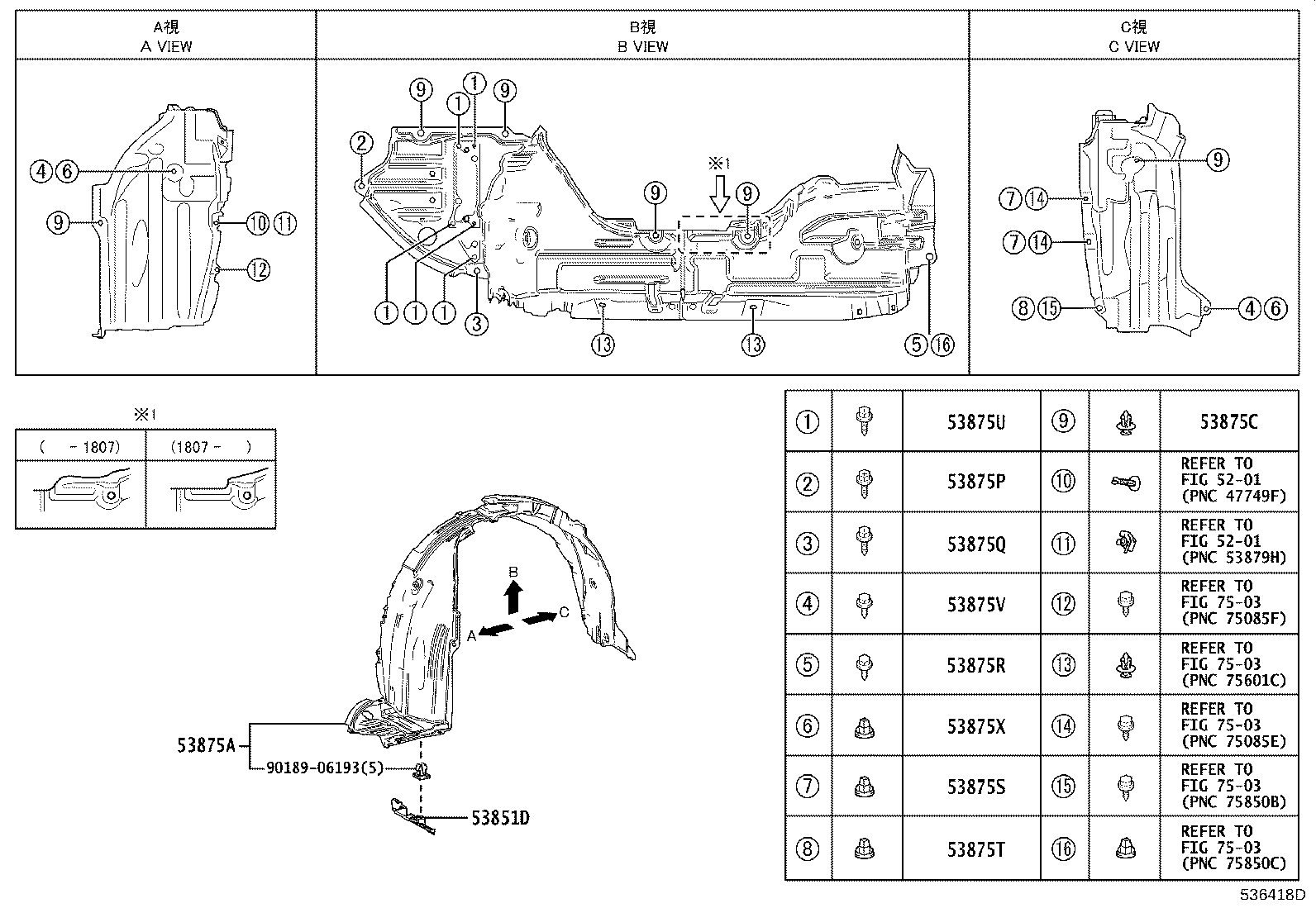

ILLUST NO. 2 OF 2(1801- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-10051 |
ZGX10 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-10080 |
ZGX10 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
ZGX10 |
15 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
ZGX10 |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60477 |
ZGX10 |
2 | ||
| 53875R - SCREW, NO.3 | ||||
| 90159-60623 |
ZGX10 |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06006 |
ZGX10 |
4 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06006 |
ZGX10 |
2 | ||
| 53875U - SCREW, NO.4 | ||||
| 90159-60477 |
ZGX10 |
10 | ||
| 53875V - SCREW, NO.5 | ||||
| 90159-60623 |
ZGX10 |
4 | ||
| 53875X - GROMMET, NO.3 | ||||
| 90189-06006 |
ZGX10 |
2 | ||
| Common parts | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7503 | ||||

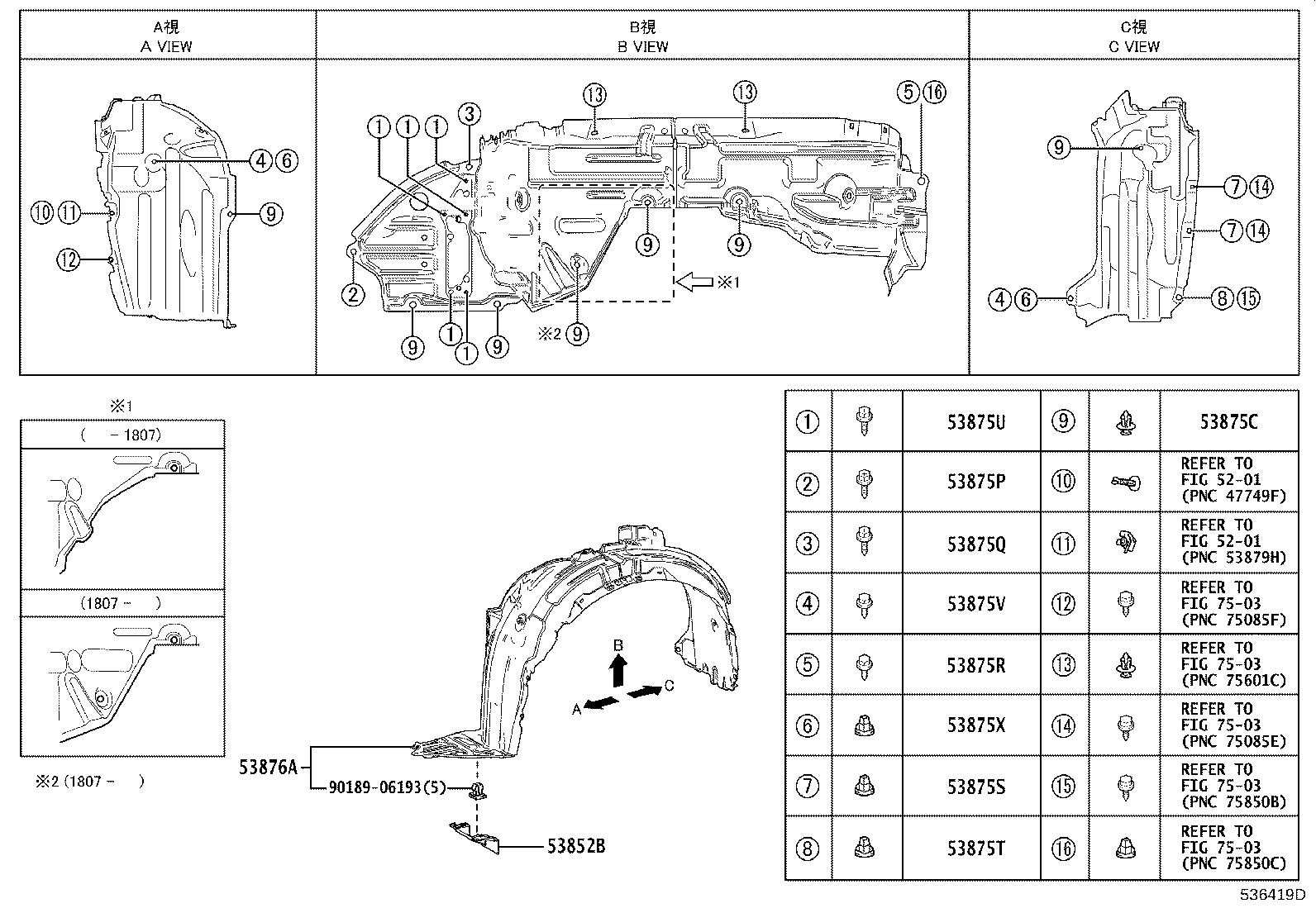

ILLUST NO. 2 OF 2(1801- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-10041 |
ZGX10 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
ZGX10 |
15 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
ZGX10 |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60477 |
ZGX10 |
2 | ||
| 53875R - SCREW, NO.3 | ||||
| 90159-60623 |
ZGX10 |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06006 |
ZGX10 |
4 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06006 |
ZGX10 |
2 | ||
| 53875U - SCREW, NO.4 | ||||
| 90159-60477 |
ZGX10 |
10 | ||
| 53875V - SCREW, NO.5 | ||||
| 90159-60623 |
ZGX10 |
4 | ||
| 53875X - GROMMET, NO.3 | ||||
| 90189-06006 |
ZGX10 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-10080 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7503 | ||||
