ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )

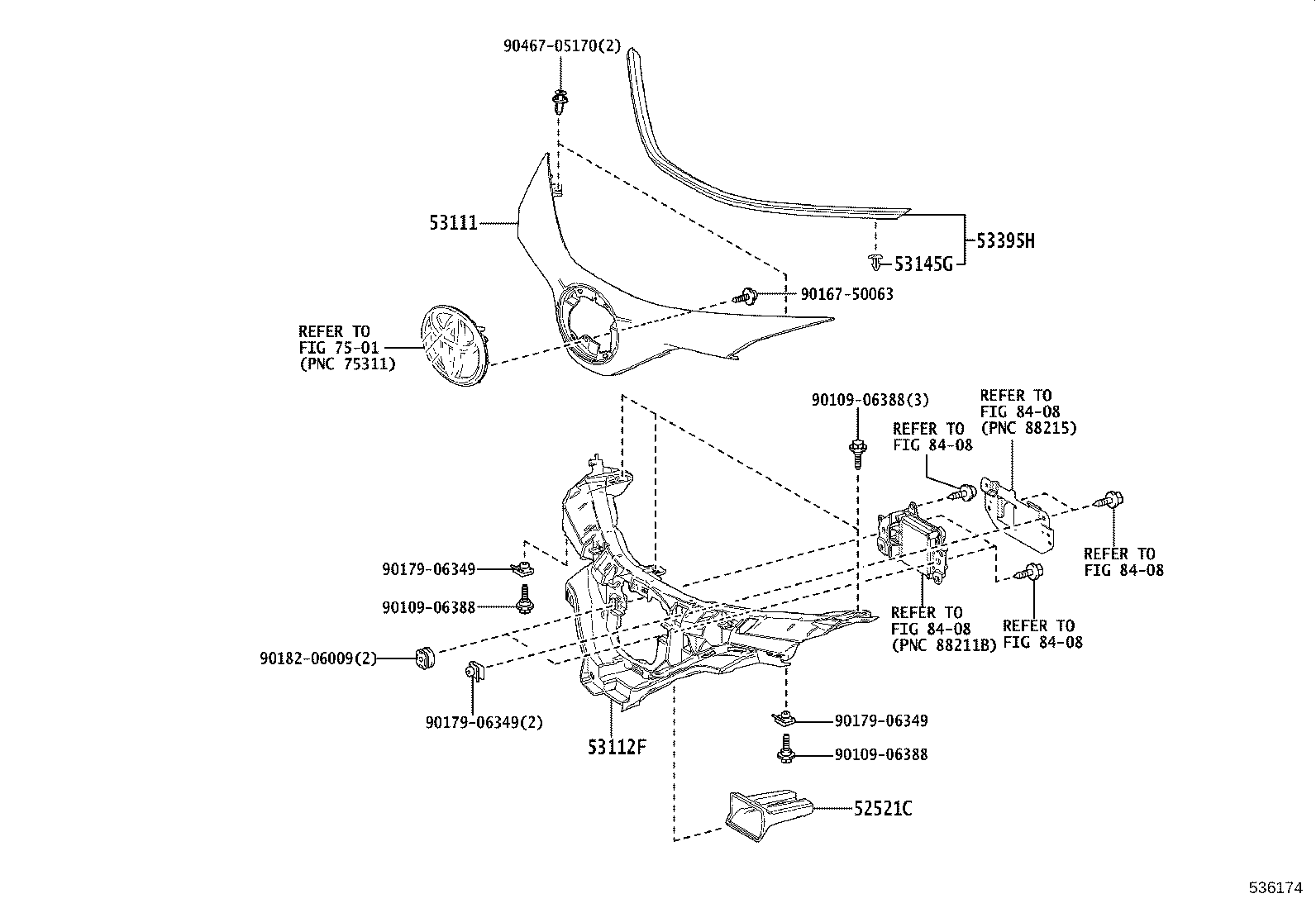

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52521C - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-10040 |
ZGX10 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-10490 |
ZGX10 NO PAINT REQ. |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-10060 |
ZGX10 |
1 | ||
| 53112-10090 |
ZGX10 |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
ZGX10 |
7 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-10040 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90182-06009 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
