ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

Click highlighted areas on diagram

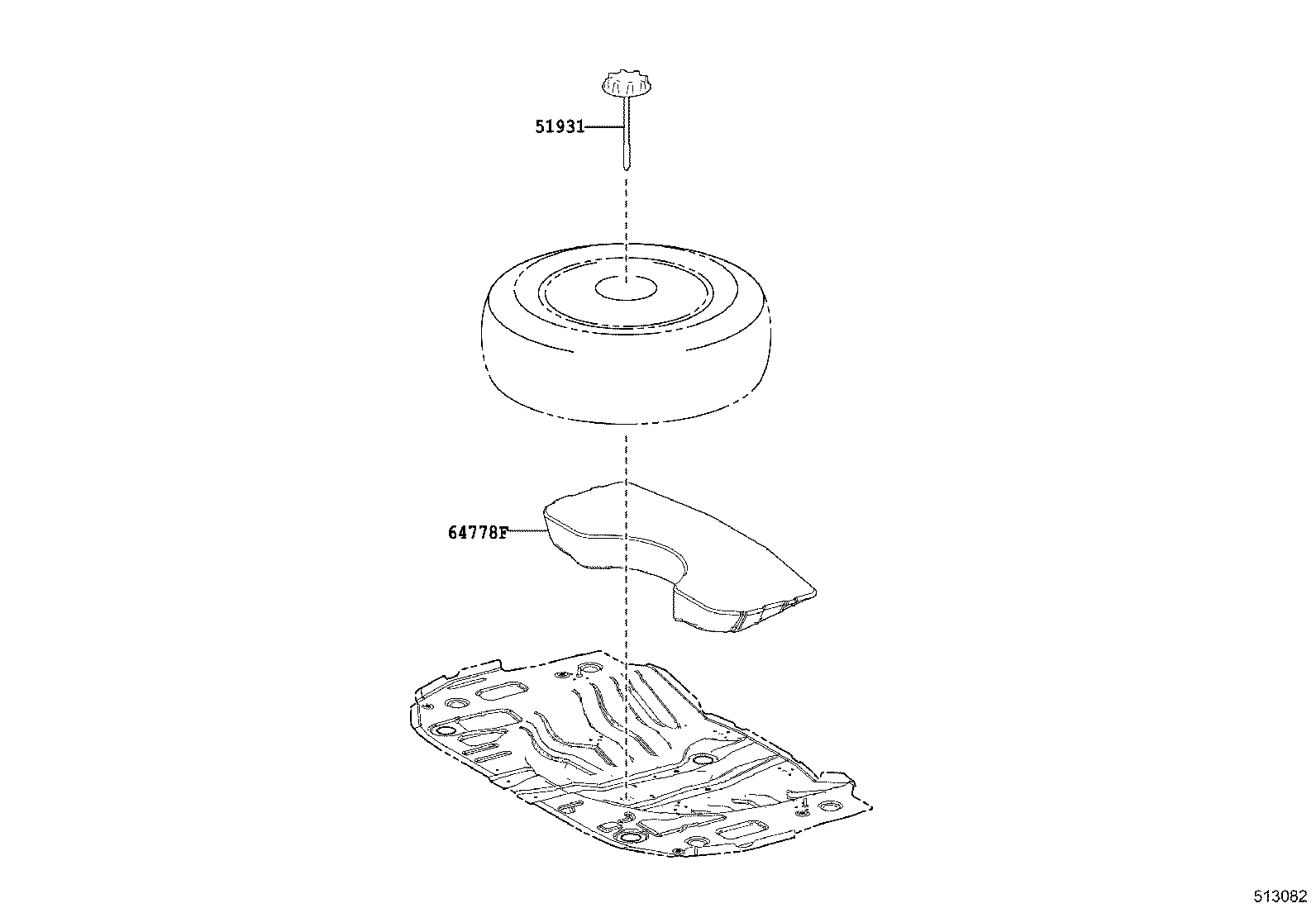

diagram 51931 64778F
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-12140

ZGX10

 1
64778F - PROTECTOR, SPARE WHEEL
64778-10040

ZGX10

 1
