ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

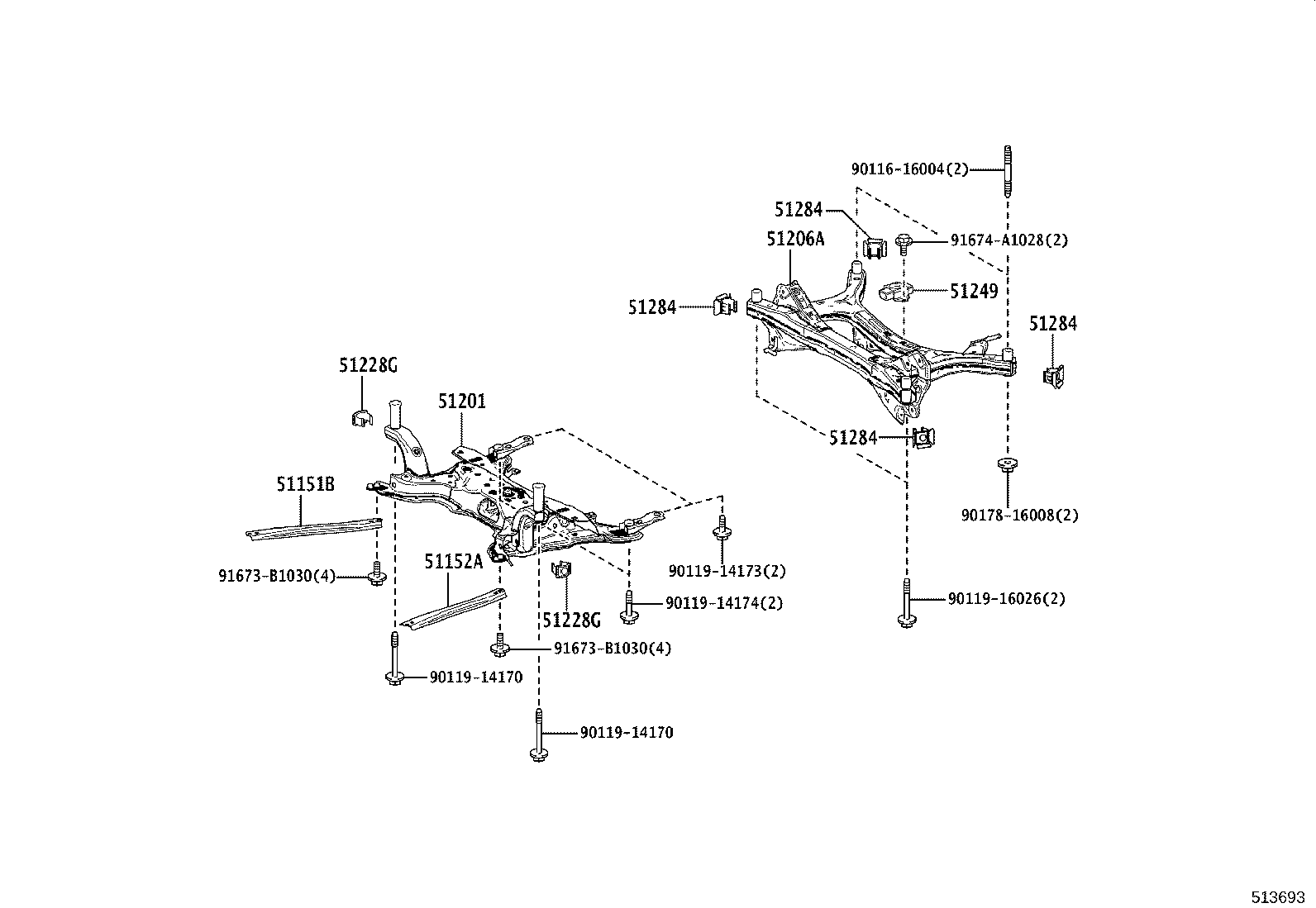

ILLUST NO. 1 OF 2(1801- )

Click highlighted areas on diagram

diagram 51151B 51152A 51201 51206A 51228G 51228G 51249 51284 51284 51284 51284 9011616004 9011914170 9011914170 9011914173 9011914174 9011916026 9017816008 91673B1030 91673B1030 91674A1028
Part # Description Qty Price
51151B - REINFORCEMENT, SIDE RAIL, NO.1 RH
51151-10010

ZGX10

 1
51152A - REINFORCEMENT, SIDE RAIL, NO.1 LH
51151-10010

ZGX10

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-10122

ZGX10

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-10011

ZGX10

 1
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-47010

ZGX10

 2
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-47010

ZGX10

 2
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-10010

ZGX10

 1
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

ZGX10

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

ZGX10

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

ZGX10

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

ZGX10

 4
Common parts
90116-16004
90119-14170
90119-14173
90119-14174
90119-16026
90178-16008
91673-B1030
91674-A1028

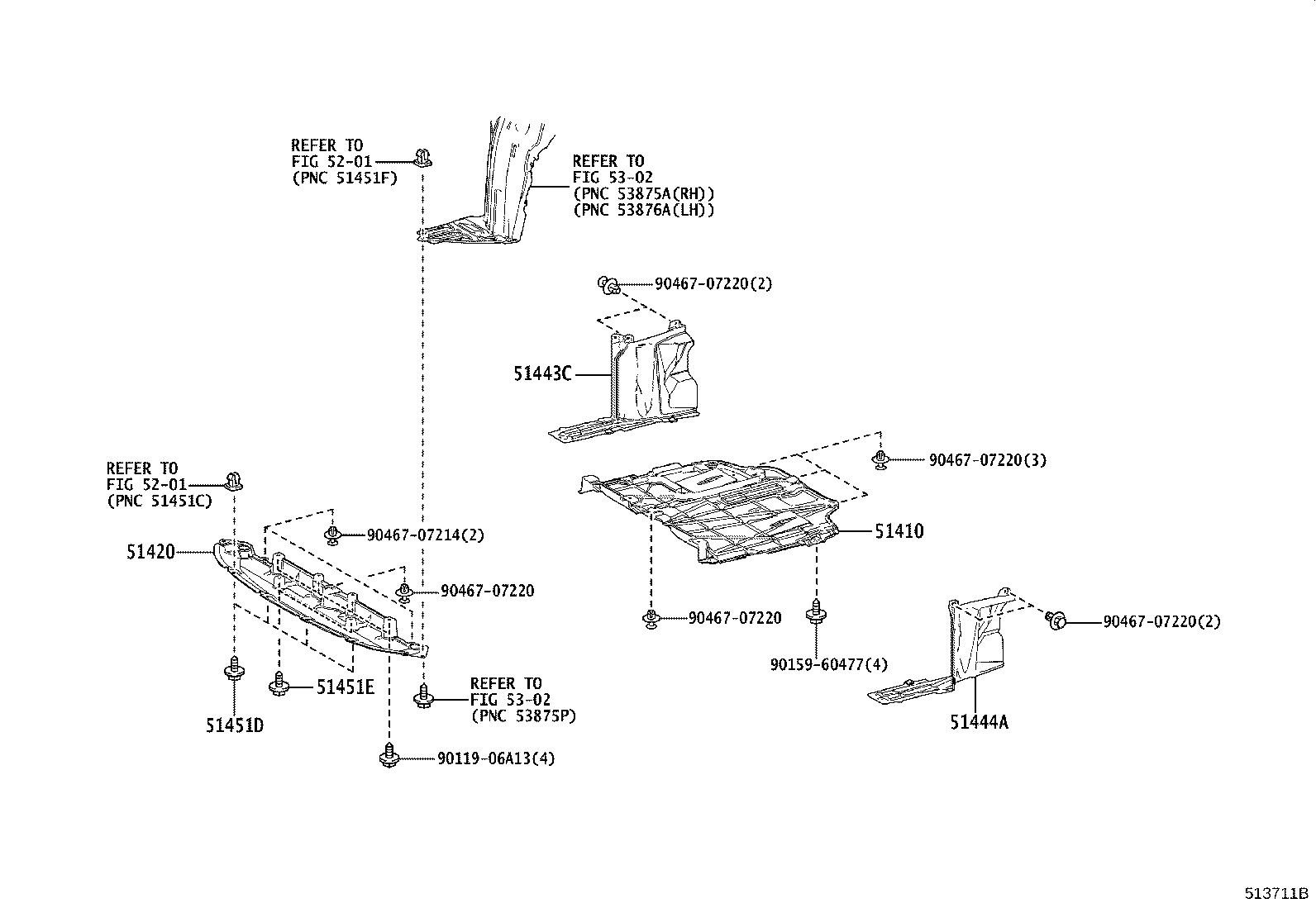

ILLUST NO. 2 OF 2(1910- )

Click highlighted areas on diagram

diagram 51410 51420 51443C 51444A 51451D 51451E 5201 5201 5302 5302 9011906A13 9015960477 9046707214 9046707220 9046707220 9046707220 9046707220 9046707220
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-10040

ZGX10

 1
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-10010

ZGX10

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-10020

ZGX10

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-10020

ZGX10

 1
51451D - SCREW, NO.1
90159-60477

ZGX10

 4
51451E - SCREW, NO.2
90159-60477

ZGX10

 2
Common parts
90119-06A13
90159-60477
90467-07214
90467-07220
Linked diagrams
5201
5302
