ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

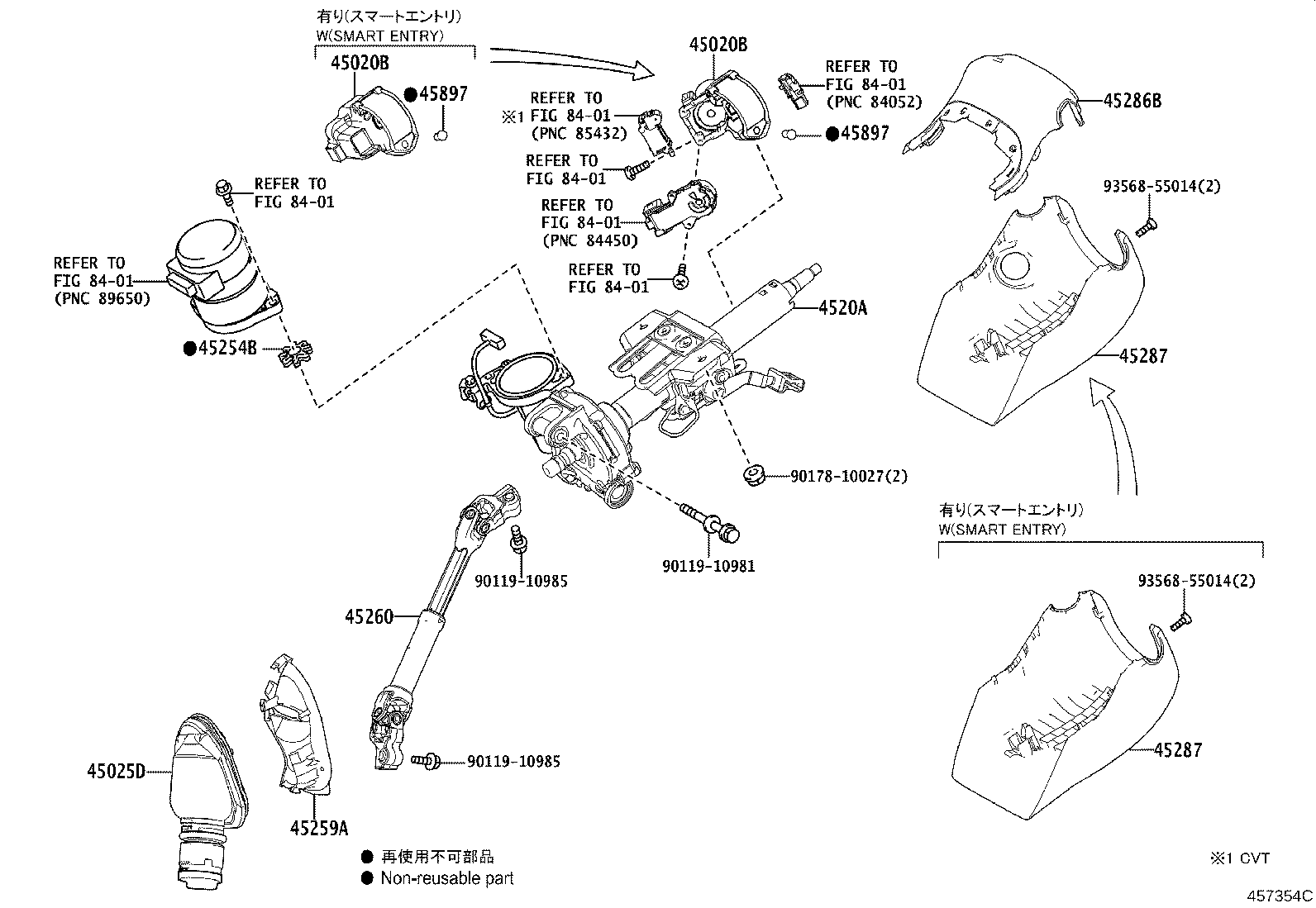

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZGX10..E,G |
1 | ||
| 45280-10120 |
ZGX10..D |
1 | ||
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZGX10..E,G |
1 | ||
| 45280-10120 |
ZGX10..D |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-76010 |
ZGX10 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-10060 |
ZGX10..E,G |
1 | ||
| 4520A-10050 |
ZGX10..D |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ZGX10 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-10020 |
ZGX10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-10040 |
ZGX10 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-10280C1 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 45286-10280C1 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 45286-F4010C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45024-10070C1 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 45287-F4010C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 45024-10070C1 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45024-10070C1 |
ZGX10..E BLACK,TRIM2# |
1 | ||
| 45287-F4010C2 |
ZGX10..D BLACK,TRIM2# |
1 | ||
| 45024-10070C1 |
ZGX10..G BLACK,TRIM2#,8# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZGX10 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZGX10 |
1 | ||
| Common parts | ||||
| 90119-10981 | ||||
| 90119-10985 | ||||
| 90178-10027 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
