ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)

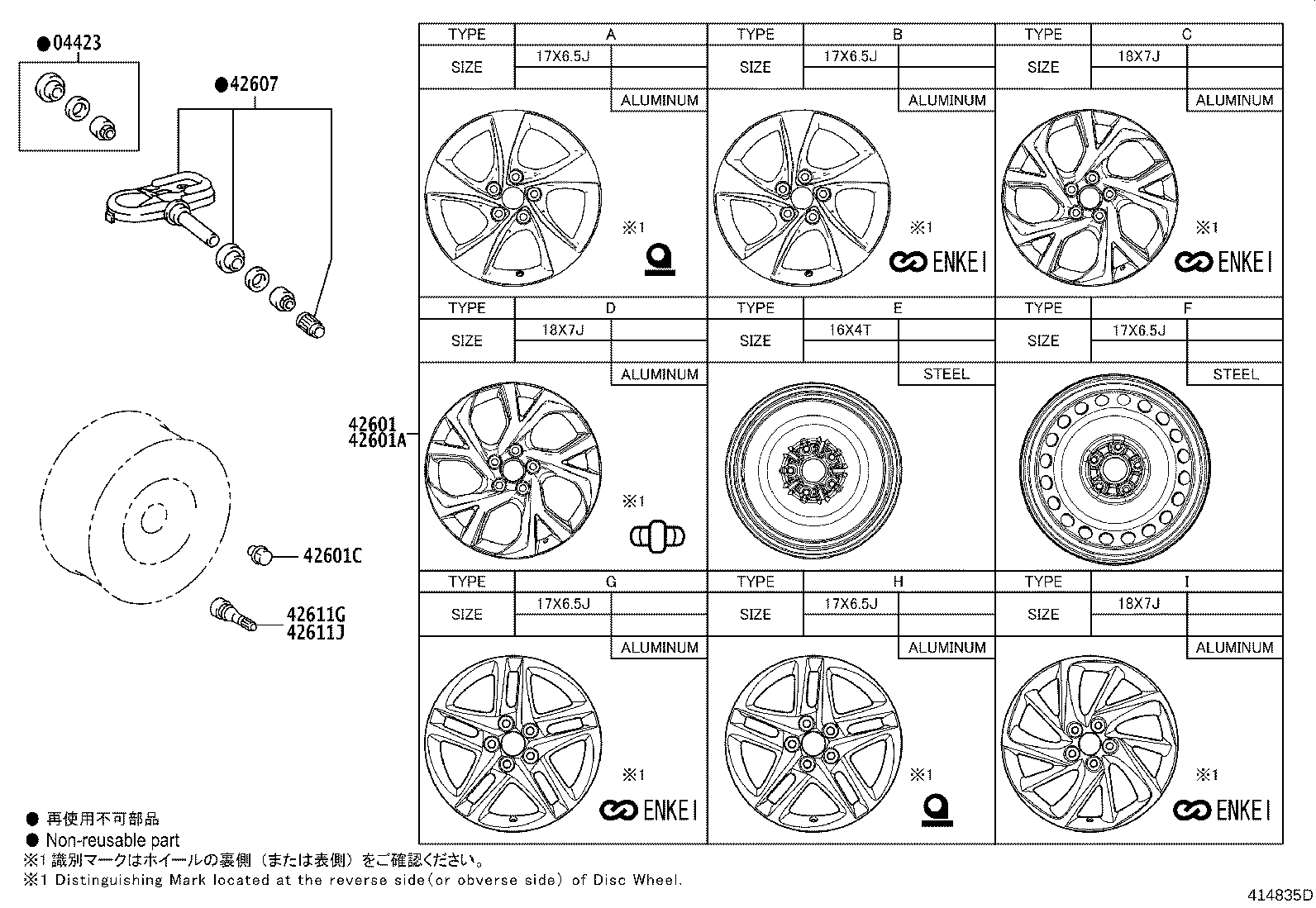

ILLUST NO. 1 OF 3(1801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
ZGX10 |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-10360 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE,TYPE C:REFER ILLUST. |
4 | ||
| 42611-10371 |
ZGX10..E,G 18X7J,#,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10410 |
ZGX10..D 17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE H:REFER ILLUST. |
4 | ||
| 42611-10360 |
ZGX10..E,G 18X7J,#,TYPE C:REFER ILLUST. |
4 | ||
| 42611-10420 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASONTIRE,TYPE I:REFER ILLUST. |
4 | ||
| 42611-10371 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10420 |
ZGX10..E,G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE,TYPE I:REFER ILLUST. |
4 | ||
| 42611-10430 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASONTIRE,TYPE J:REFER ILLUST. |
4 | ||
| 42611-10450 |
ZGX10..G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM BKACK ALL SEASON TIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10430 |
ZGX10..E,G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE,TYPE J:REFER ILLUST. |
4 | ||
| 42611-10440 |
ZGX10..D 17X6.5J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-10400 |
ZGX10..D 17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-30F32 |
ZGX10 18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-21280 |
ZGX10 16X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42611-30F32 |
ZGX10 18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ZGX10..D TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE |
20 | ||
| 90942-01033 |
ZGX10..E,G |
20 | ||
| 90942-01033 |
ZGX10..D TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE |
20 | ||
| 90942-01007 |
ZGX10..D |
20 | ||
| 90942-01115 |
ZGX10..G NIGHTSHADE PACKAGE&TIRE & DISC WHEEL-225/50R18 ALUMINUM BKACK ALL SEASON TIRE |
20 | ||
| 90942-01033 |
ZGX10..D TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-33050 |
ZGX10 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05039 |
ZGX10 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZGX10 |
1 | ||

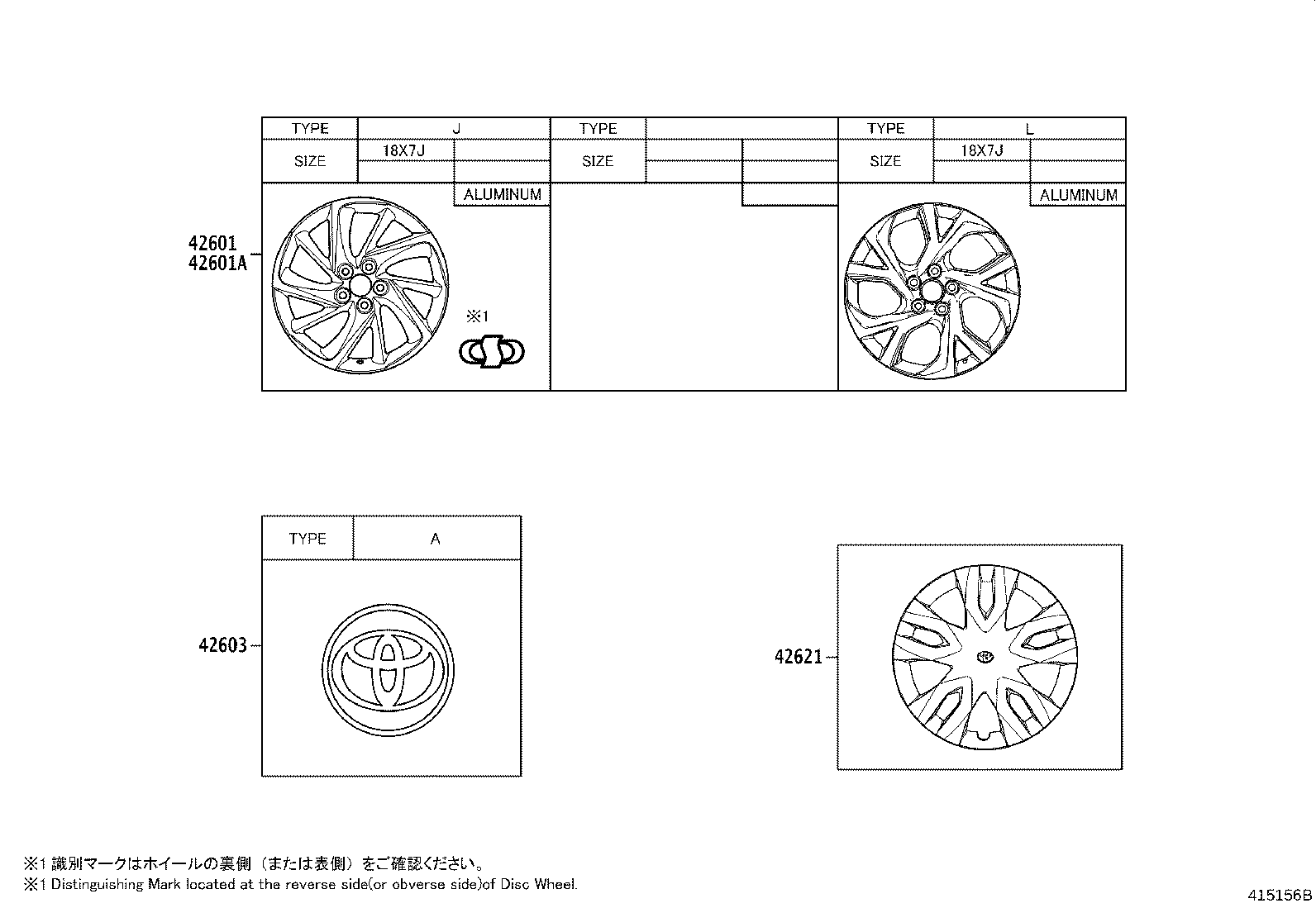

ILLUST NO. 2 OF 3(1801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-10360 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE,TYPE C:REFER ILLUST. |
4 | ||
| 42611-10371 |
ZGX10..E,G 18X7J,#,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10410 |
ZGX10..D 17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE H:REFER ILLUST. |
4 | ||
| 42611-10360 |
ZGX10..E,G 18X7J,#,TYPE C:REFER ILLUST. |
4 | ||
| 42611-10420 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASONTIRE,TYPE I:REFER ILLUST. |
4 | ||
| 42611-10371 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10420 |
ZGX10..E,G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE,TYPE I:REFER ILLUST. |
4 | ||
| 42611-10430 |
ZGX10..D 18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASONTIRE,TYPE J:REFER ILLUST. |
4 | ||
| 42611-10450 |
ZGX10..G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM BKACK ALL SEASON TIRE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-10430 |
ZGX10..E,G 18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE,TYPE J:REFER ILLUST. |
4 | ||
| 42611-10440 |
ZGX10..D 17X6.5J,#,TYPE F:REFER ILLUST. |
4 | ||
| 42611-10400 |
ZGX10..D 17X6.5J,#,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-30F32 |
ZGX10 18X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-21280 |
ZGX10 16X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42611-30F32 |
ZGX10 18X4T,USA POSSESSIONS SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-42130 |
ZGX10..E,G *ALU |
4 | ||
| 42603-42130 |
ZGX10..D *ALU,TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE |
4 | ||
| 42603-42130 |
ZGX10..D *ALU,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE |
4 | ||
| 42603-42130 |
ZGX10..D *ALU,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-10180 |
ZGX10..D TYPE A:REFER ILLUST. |
4 | ||
