ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

Click highlighted areas on diagram

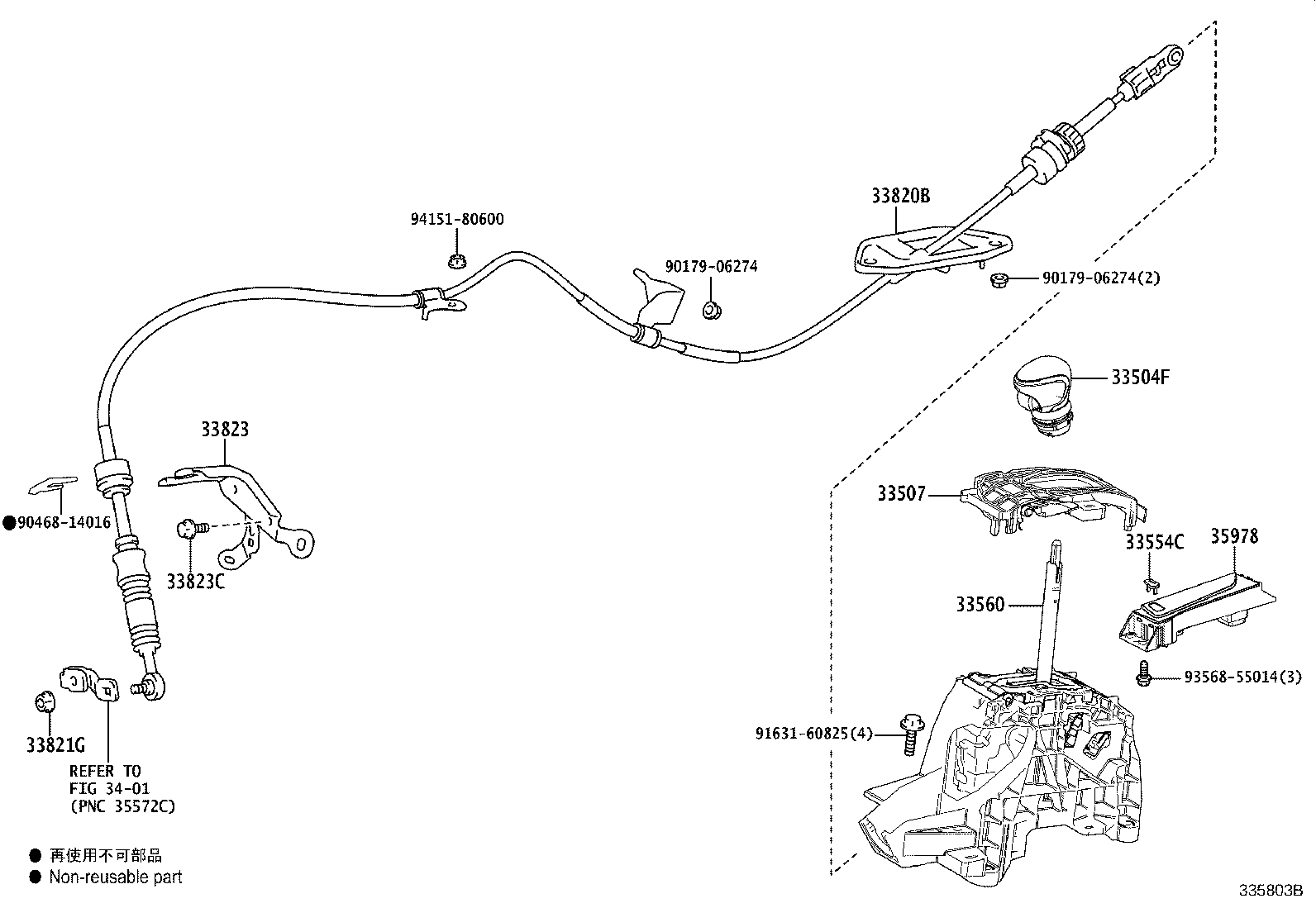

diagram 33504F 33507 33554C 33560 33820B 33821G 33823 33823C 3401 35978 9017906274 9017906274 9046814016 9163160825 9356855014 9415180600
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-10071C2

ZGX10..D

BLACK,TRIM2#

 1
33504-10071C2

ZGX10..E

BLACK,TRIM2#,4#,8#

 1
33504-10071C2

ZGX10..G

BLACK,TRIM2#,8#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-10050

ZGX10

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-F4010

ZGX10

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12640

ZGX10..D

 1
33560-12650

ZGX10..E,G

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-10340

ZGX10

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZGX10

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28300

ZGX10

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

ZGX10

 2
35978 - INDICATOR, SHIFT POSITION
35978-F4010

ZGX10

 1
Common parts
90179-06274
90468-14016
91631-60825
93568-55014
94151-80600
Linked diagrams
3401
