ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

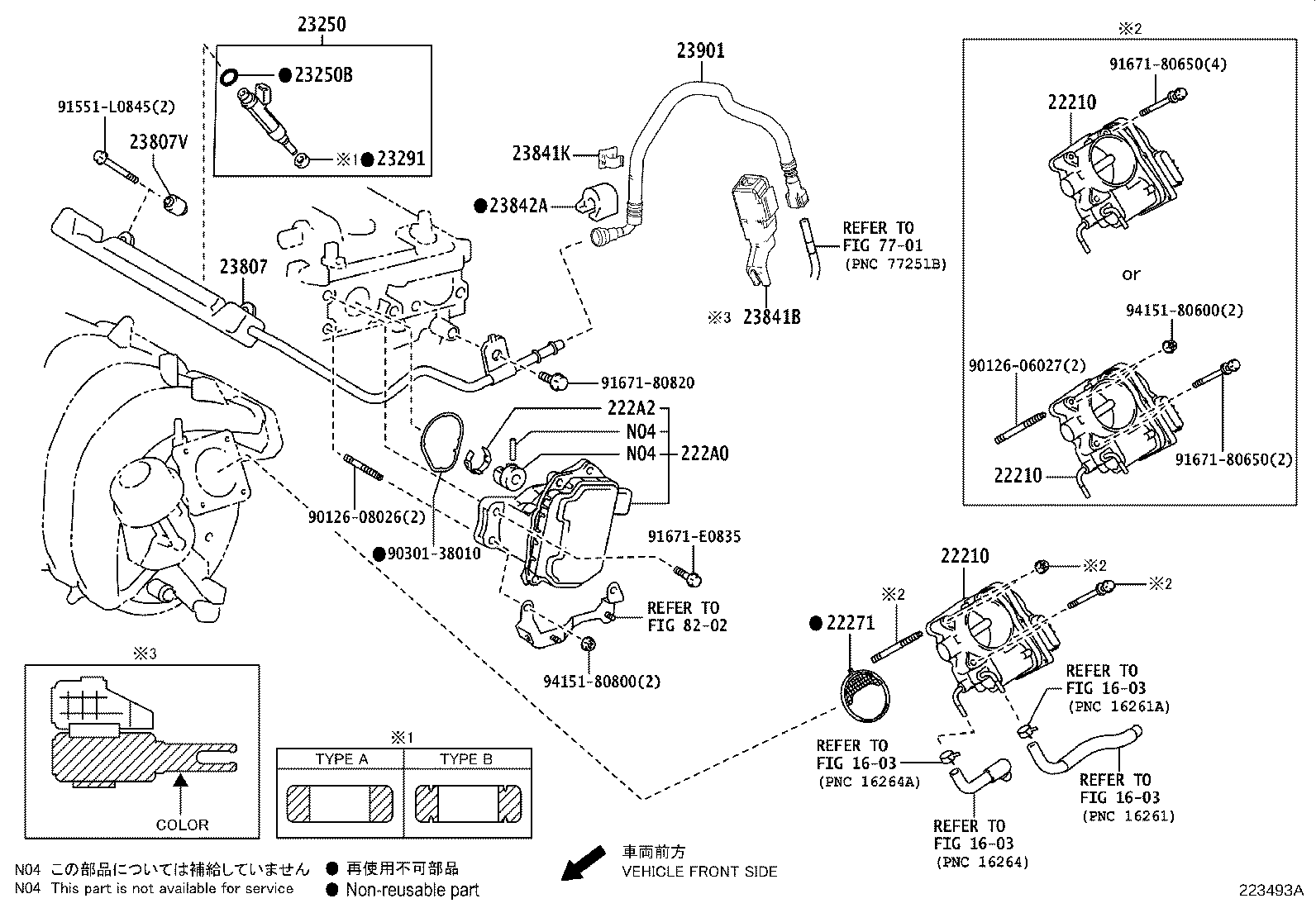

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37040 |
3ZRFAE..ZGX10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37040 |
3ZRFAE..ZGX10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-37040 |
3ZRFAE..ZGX10 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75031 |
3ZRFAE..ZGX10 |
1 | ||
| 222A0 - CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT | ||||
| 222A0-37024 |
3ZRFAE..ZGX10 |
1 | ||
| 222A0-37025 |
3ZRFAE..ZGX10 |
1 | ||
| 222A2 - CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR | ||||
| 222A2-37011 |
3ZRFAE..ZGX10 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-39235 |
3ZRFAE..ZGX10 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
3ZRFAE..ZGX10 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
3ZRFAE..ZGX10 TYPE B:REFER ILLUST. |
4 | ||
| 23291-23010 |
3ZRFAE..ZGX10 TYPE A:REFER ILLUST. |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-37051 |
3ZRFAE..ZGX10 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-37010 |
3ZRFAE..ZGX10 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-37081 |
3ZRFAE..ZGX10 |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-47020 |
3ZRFAE..ZGX10 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
3ZRFAE..ZGX10 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-37320 |
3ZRFAE..ZGX10 |
1 | ||
| Common parts | ||||
| 90126-06027 | ||||
| 90126-08026 | ||||
| 90301-38010 | ||||
| 91551-L0845 | ||||
| 91671-80650 | ||||
| 91671-80820 | ||||
| 91671-E0835 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
| 8202 | ||||
