ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

Click highlighted areas on diagram

12V 1.2KW

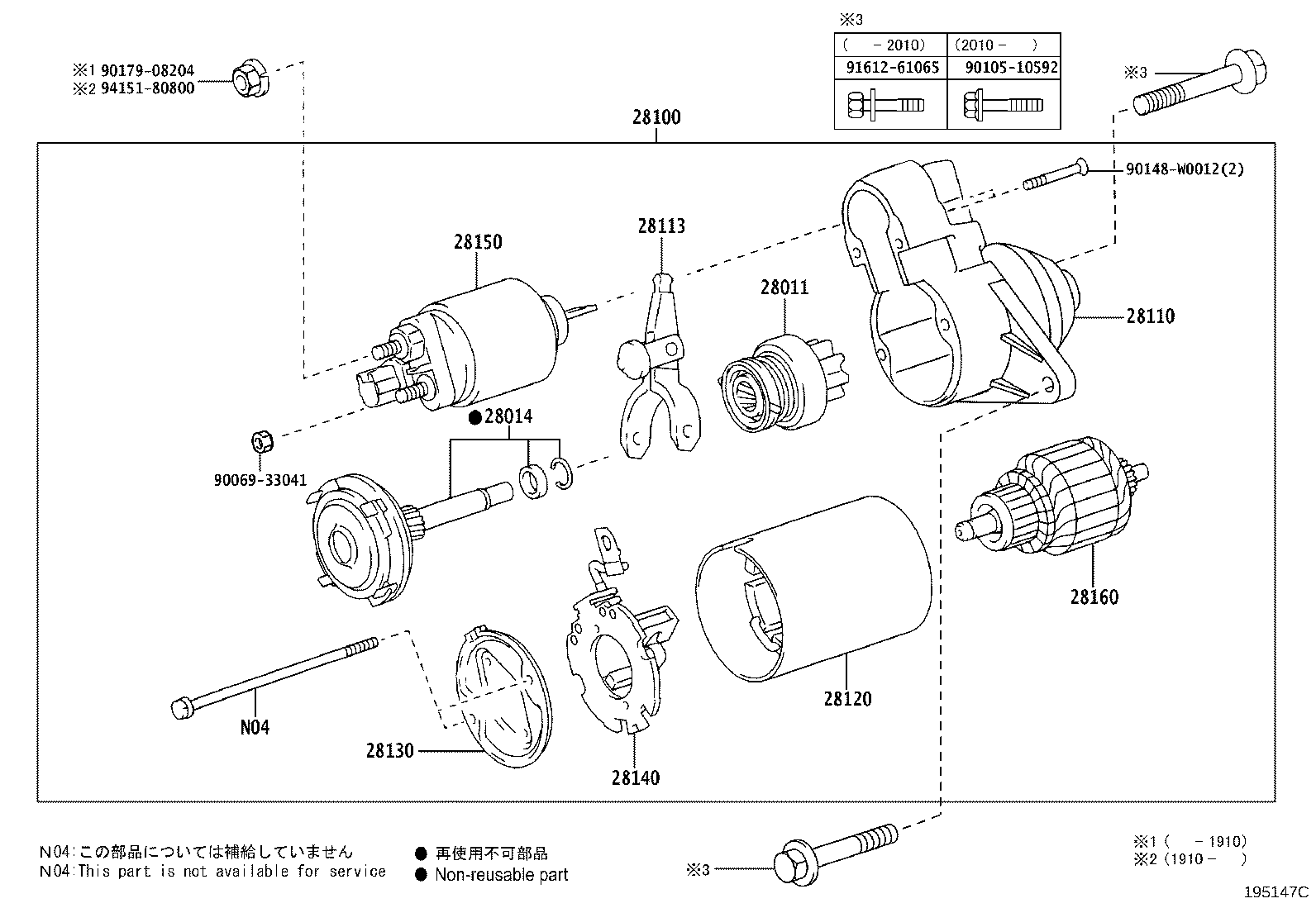

diagram 28011 28014 28100 28110 28113 28120 28130 28140 28150 28160 9006933041 9010510592 90148W0012 9017908204 9161261065 9415180800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0T350

3ZRFAE..ZGX10

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0T350

3ZRFAE..ZGX10

 1
28100 - STARTER ASSY
28100-0T350

3ZRFAE..ZGX10

12V 1.2KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T350

3ZRFAE..ZGX10

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0T310

3ZRFAE..ZGX10

 1
28120 - YOKE ASSY, STARTER
28120-0T350

3ZRFAE..ZGX10

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T350

3ZRFAE..ZGX10

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0T350

3ZRFAE..ZGX10

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0T350

3ZRFAE..ZGX10

 1
28160 - ARMATURE ASSY, STARTER
28160-0T350

3ZRFAE..ZGX10

 1
Common parts
90069-33041
90105-10592
90148-W0012
90179-08204
91612-61065
94151-80800
