ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

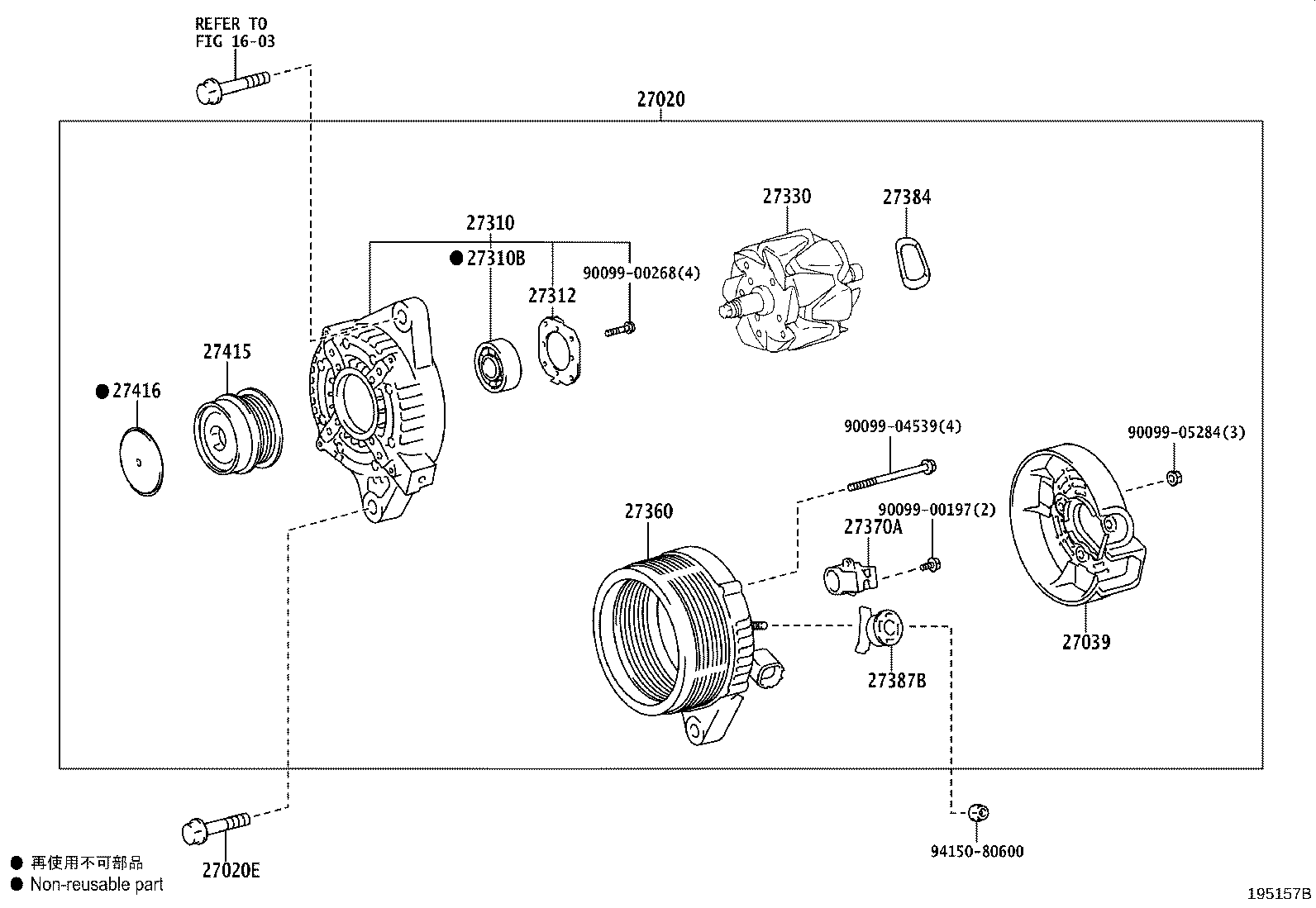

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-37250 |
3ZRFAE..ZGX10 12V 130A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
3ZRFAE..ZGX10 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
3ZRFAE..ZGX10 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-37100 |
3ZRFAE..ZGX10 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
3ZRFAE..ZGX10 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3ZRFAE..ZGX10 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33090 |
3ZRFAE..ZGX10 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-37280 |
3ZRFAE..ZGX10 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
3ZRFAE..ZGX10 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
3ZRFAE..ZGX10 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
3ZRFAE..ZGX10 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T060 |
3ZRFAE..ZGX10 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
3ZRFAE..ZGX10 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
