ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

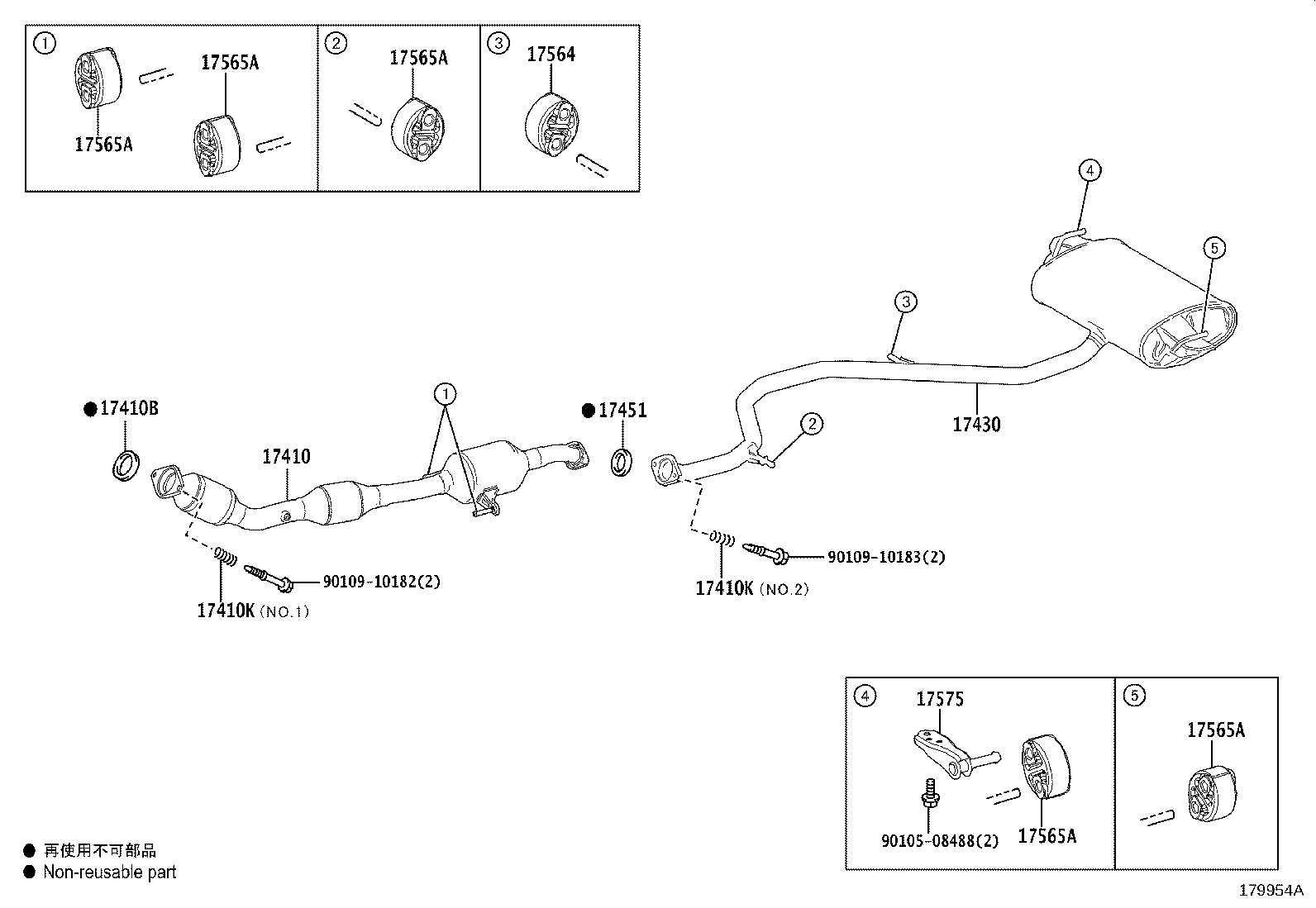

Click highlighted areas on diagram

diagram 17410 17410B 17410K 17410K 17430 17451 17564 17565A 17565A 17565A 17565A 17565A 17575 9010508488 9010910182 9010910183
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37C40

3ZRFAE..ZGX10

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

3ZRFAE..ZGX10

PAINTED=BLACK

 1
17410K - SPRING, EXHAUST PIPE
90501-35037

3ZRFAE..ZGX10

NO.1

 2
90501-35035

3ZRFAE..ZGX10

NO.2

 2
17410K - SPRING, EXHAUST PIPE
90501-35037

3ZRFAE..ZGX10

NO.1

 2
90501-35035

3ZRFAE..ZGX10

NO.2

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37820

3ZRFAE..ZGX10

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

3ZRFAE..ZGX10

PAINTED=BLACK

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-28010

3ZRFAE..ZGX10

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFAE..ZGX10

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFAE..ZGX10

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFAE..ZGX10

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFAE..ZGX10

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

3ZRFAE..ZGX10

 5
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-37030

3ZRFAE..ZGX10

 1
Common parts
90105-08488
90109-10182
90109-10183
