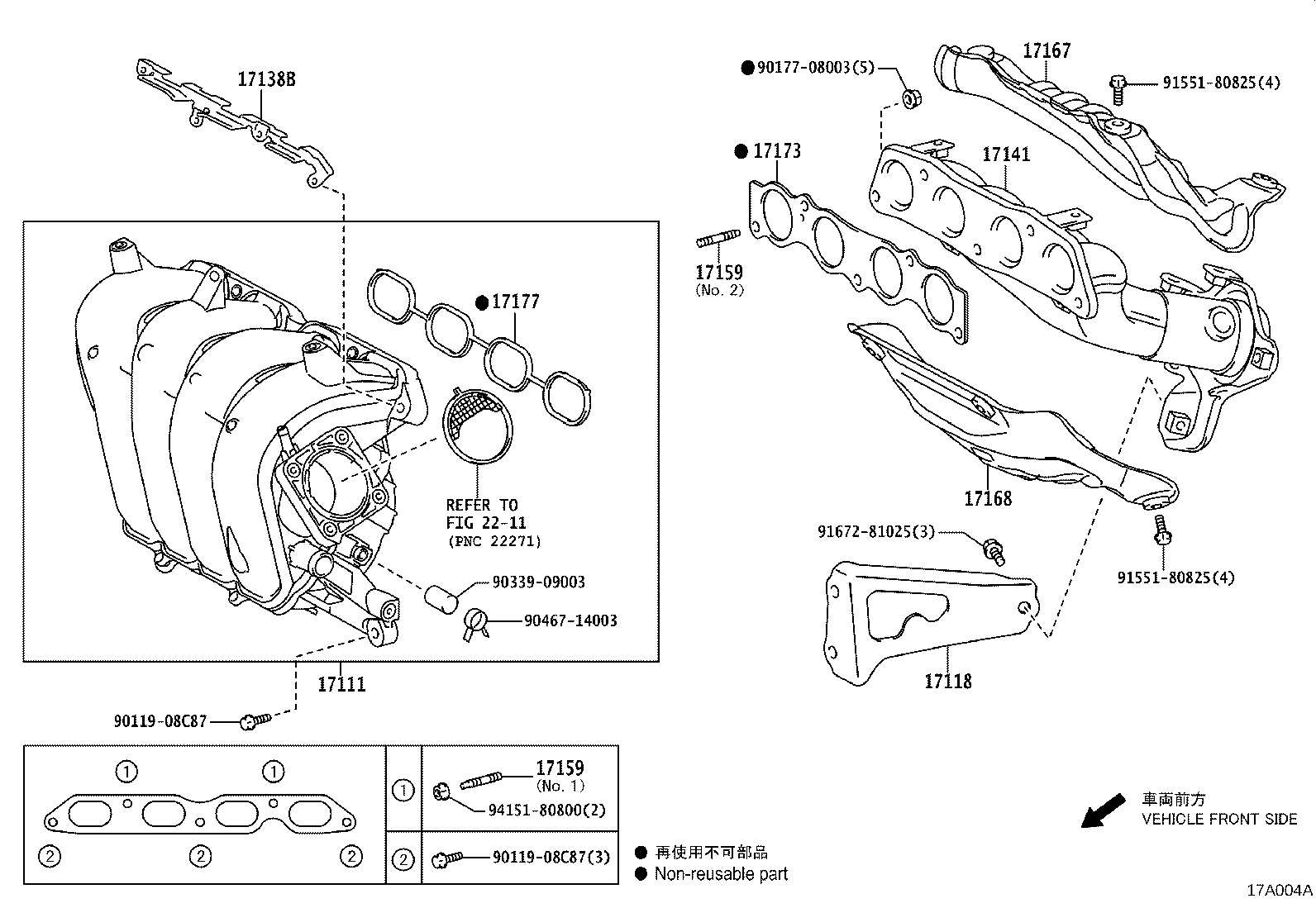

Toyota C-hr (jpp) ZGX10 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-37031	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17118 - STAY, MANIFOLD
17118-0T030	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17138B - STAY, INTAKE MANIFOLD
17138-37011	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17141-37230	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	3ZRFAE..ZGX10 NO.1	10/2019 - 12/2999	2
90126-08052	3ZRFAE..ZGX10 NO.2	10/2019 - 12/2999	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	3ZRFAE..ZGX10 NO.1	10/2019 - 12/2999	2
90126-08052	3ZRFAE..ZGX10 NO.2	10/2019 - 12/2999	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37110	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37130	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	3ZRFAE..ZGX10	10/2019 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	3ZRFAE..ZGX10	10/2019 - 12/2999	1
Common parts
90119-08C87
90177-08003
90339-09003
90467-14003
91551-80825
91672-81025
94151-80800
Linked diagrams
2211

ZGX10L-AHXGPA (2019)
