ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

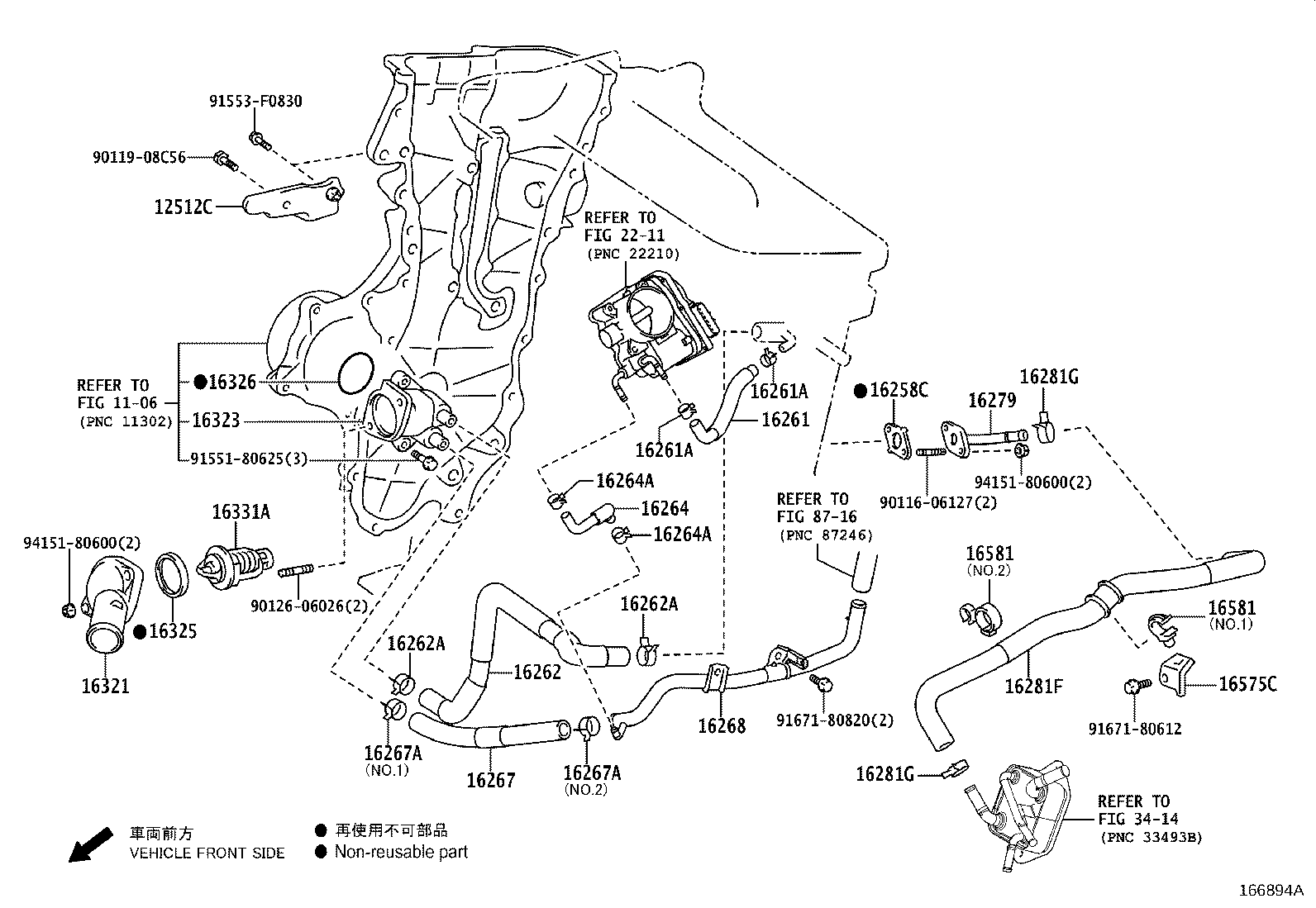

ILLUST NO. 2 OF 2(1801- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
3ZRFAE..ZGX10 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
3ZRFAE..ZGX10 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37031 |
3ZRFAE..ZGX10 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZGX10 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZGX10 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
3ZRFAE..ZGX10 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZGX10 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZGX10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37031 |
3ZRFAE..ZGX10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFAE..ZGX10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFAE..ZGX10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37020 |
3ZRFAE..ZGX10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFAE..ZGX10 NO.1 |
1 | ||
| 96136-52701 |
3ZRFAE..ZGX10 NO.2 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFAE..ZGX10 NO.1 |
1 | ||
| 96136-52701 |
3ZRFAE..ZGX10 NO.2 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37041 |
3ZRFAE..ZGX10 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-37010 |
3ZRFAE..ZGX10 |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-37131 |
3ZRFAE..ZGX10 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
3ZRFAE..ZGX10 |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
3ZRFAE..ZGX10 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
3ZRFAE..ZGX10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37040 |
3ZRFAE..ZGX10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
3ZRFAE..ZGX10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37030 |
3ZRFAE..ZGX10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03148 |
3ZRFAE..ZGX10 *WAX 80-93 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-37040 |
3ZRFAE..ZGX10 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37100 |
3ZRFAE..ZGX10 NO.1 |
1 | ||
| 16581-37010 |
3ZRFAE..ZGX10 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37100 |
3ZRFAE..ZGX10 NO.1 |
1 | ||
| 16581-37010 |
3ZRFAE..ZGX10 NO.2 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08C56 | ||||
| 90126-06026 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||
