ZGX10L-AHXGPA (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

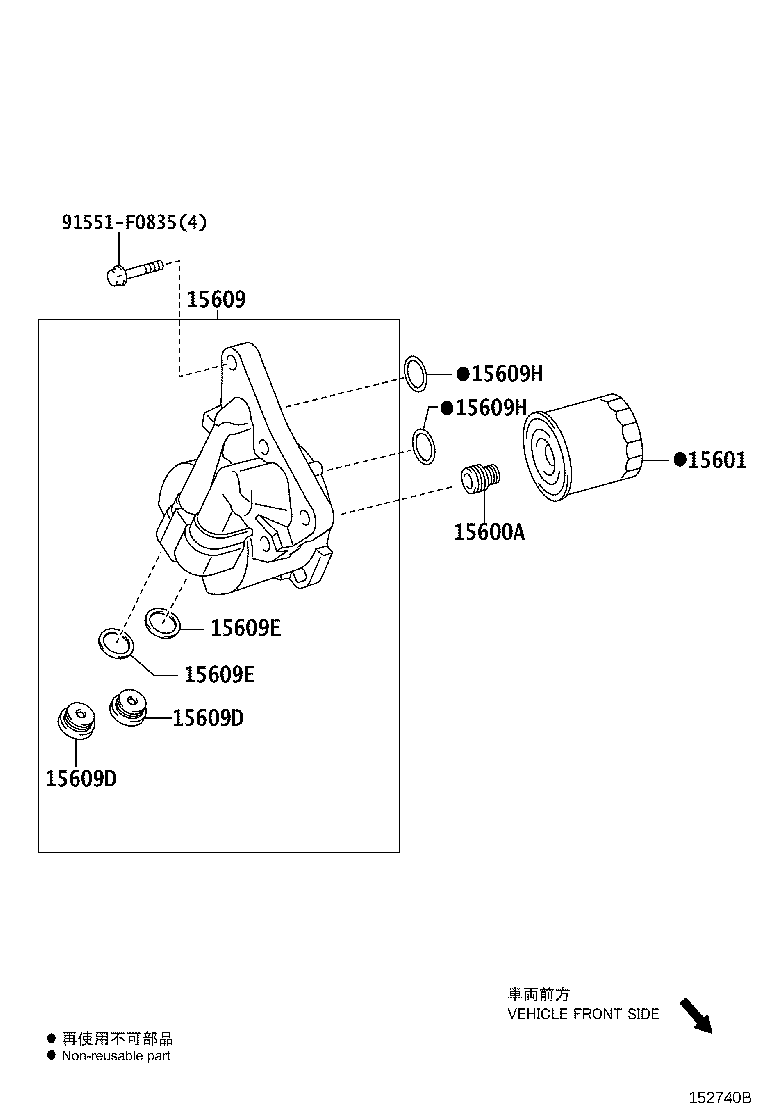

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90904-04006 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-10003 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-37060 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-20018 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-20018 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
3ZRFAE..ZGX10 CARTRIGE TYPE |
2 | ||
| Common parts | ||||
| 91551-F0835 | ||||
