ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

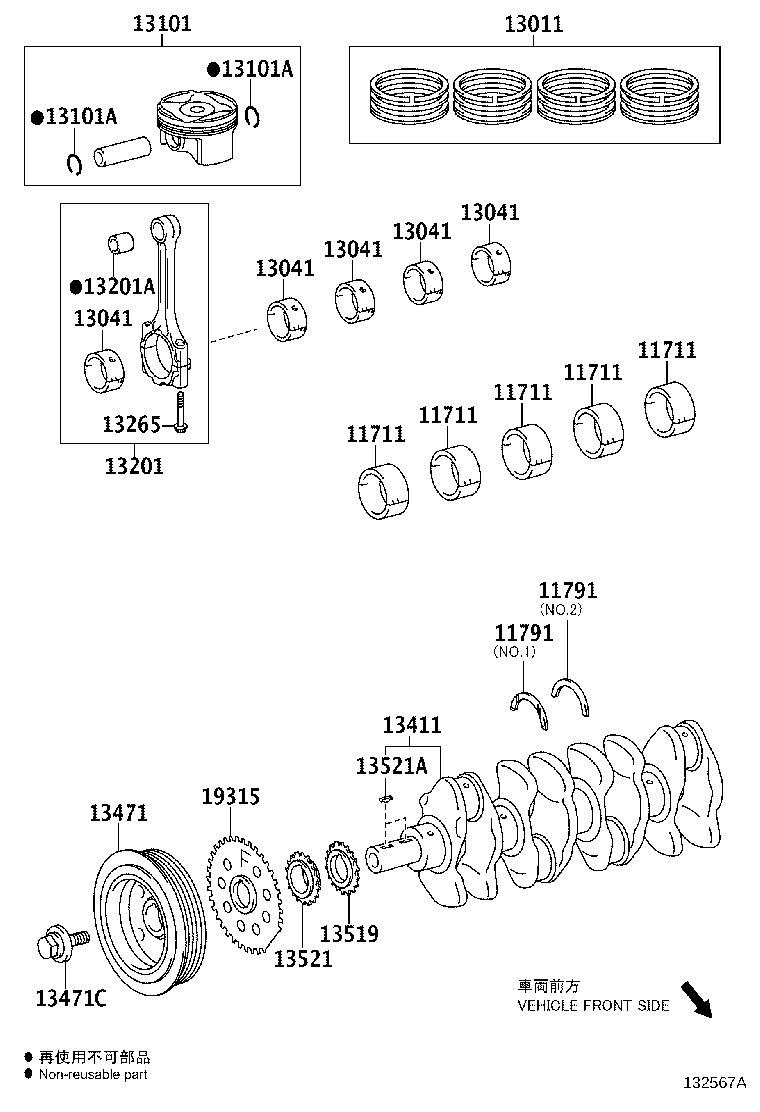

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3702102

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 5
11701-3702103

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 5
11701-3702104

3ZRFAE..ZGX10

MARK4,REFER REPAIR MANUAL

 5
11701-3702101

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702102

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 5
11701-3702103

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 5
11701-3702104

3ZRFAE..ZGX10

MARK4,REFER REPAIR MANUAL

 5
11701-3702101

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702102

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 5
11701-3702103

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 5
11701-3702104

3ZRFAE..ZGX10

MARK4,REFER REPAIR MANUAL

 5
11701-3702101

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702102

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 5
11701-3702103

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 5
11701-3702104

3ZRFAE..ZGX10

MARK4,REFER REPAIR MANUAL

 5
11701-3702101

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702102

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 5
11701-3702103

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 5
11701-3702104

3ZRFAE..ZGX10

MARK4,REFER REPAIR MANUAL

 5
11701-3702101

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

3ZRFAE..ZGX10

STD,NO.1

 1
11791-37010

3ZRFAE..ZGX10

STD,NO.2

 1
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

3ZRFAE..ZGX10

STD,NO.1

 1
11791-37010

3ZRFAE..ZGX10

STD,NO.2

 1
13011 - RING SET, PISTON
13011-37330

3ZRFAE..ZGX10

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGX10

MARK2,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGX10

MARK1,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGX10

MARK3,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-37340

3ZRFAE..ZGX10

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

3ZRFAE..ZGX10

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

3ZRFAE..ZGX10

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39205

3ZRFAE..ZGX10

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

3ZRFAE..ZGX10

 4
13265 - BOLT, CONNECTING ROD
13265-22040

3ZRFAE..ZGX10

 8
13411 - CRANKSHAFT
13401-37032

3ZRFAE..ZGX10

 1
13471 - PULLEY, CRANKSHAFT
13470-37042

3ZRFAE..ZGX10

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

3ZRFAE..ZGX10

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

3ZRFAE..ZGX10

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37020

3ZRFAE..ZGX10

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

3ZRFAE..ZGX10

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

3ZRFAE..ZGX10

 1
