ZGX10L-AHXGPA (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )

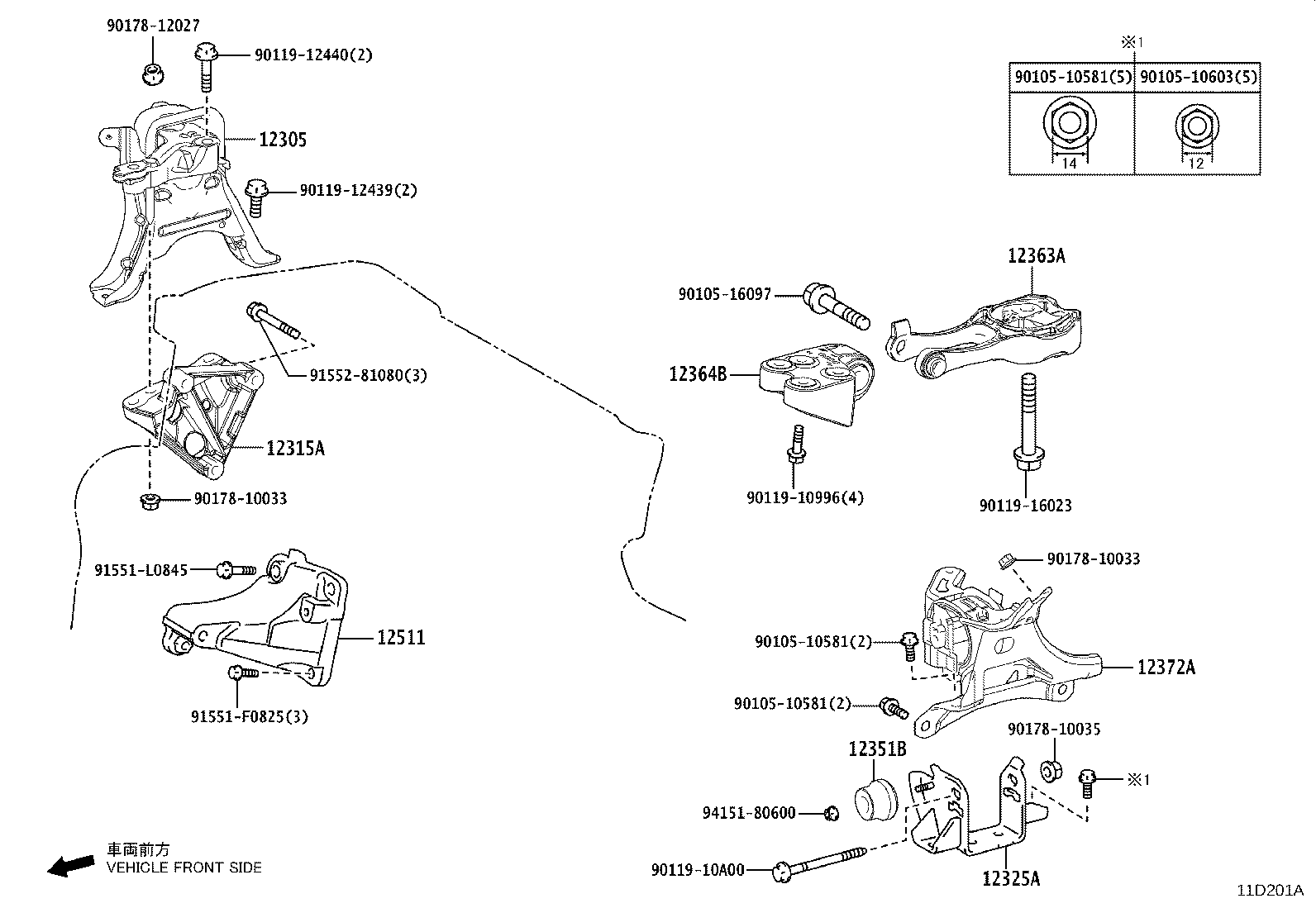

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12351B 12363A 12364B 12372A 12511 9010510581 9010510581 9010510581 9010510603 9010516097 9011910996 9011910A00 9011912439 9011912440 9011916023 9017810033 9017810033 9017810035 9017812027 91551F0825 91551L0845 9155281080 9415180600
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T341

3ZRFAE..ZGX10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37060

3ZRFAE..ZGX10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T490

3ZRFAE..ZGX10

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0T320

3ZRFAE..ZGX10

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0T030

3ZRFAE..ZGX10

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0T030

3ZRFAE..ZGX10

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T581

3ZRFAE..ZGX10

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-37010

3ZRFAE..ZGX10

 1
Common parts
90105-10581
90105-10603
90105-16097
90119-10996
90119-10A00
90119-12439
90119-12440
90119-16023
90178-10033
90178-10035
90178-12027
91551-F0825
91551-L0845
91552-81080
94151-80600
