ZYX11L-AHXNBW (2019)

Toyota C-Hr

Production Sep 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )2ZRFXE

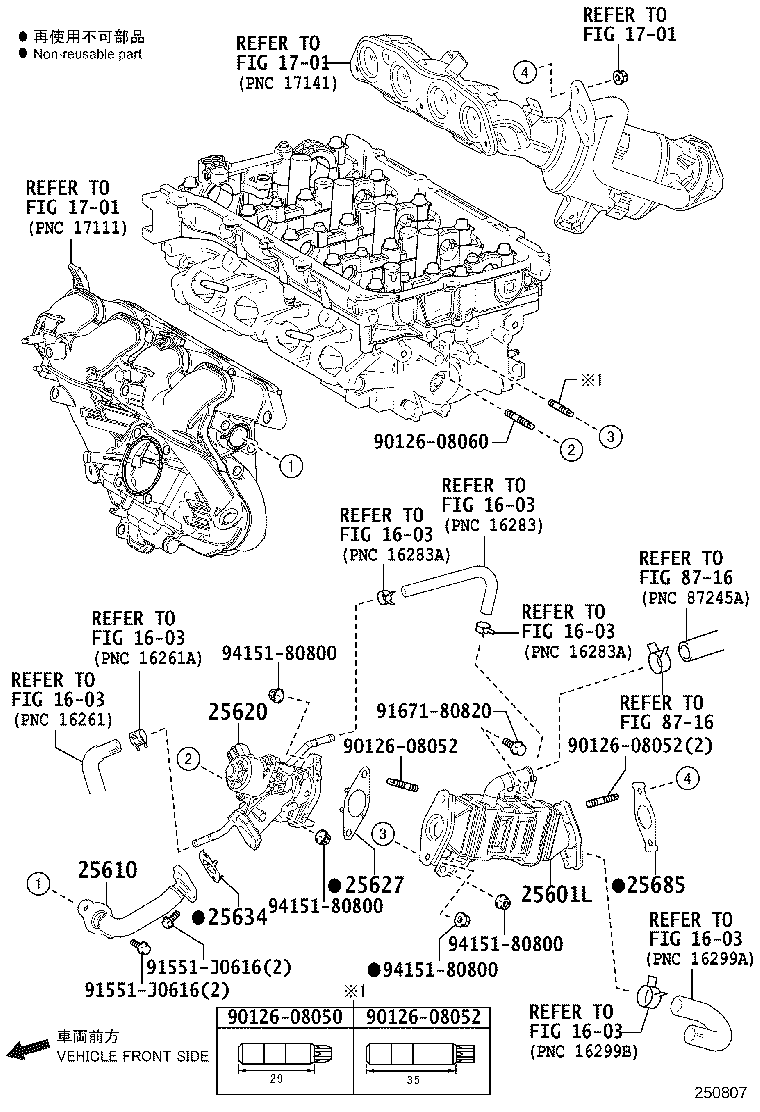

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 25601L 25610 25620 25627 25634 25685 8716 8716 9012608050 9012608052 9012608052 9012608052 9012608060 91551J0616 91551J0616 9167180820 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
25601L - PIPE SUB-ASSY, EGR W/COOLER
25601-37020

2ZRFXE..ZYX11

(J)

 1
25601-0T010

2ZRFXE..ZYX11

(L)

 1
25610 - PIPE ASSY, EGR
25610-37020

2ZRFXE..ZYX11

 1
25620 - VALVE ASSY, EGR
25620-37140

2ZRFXE..ZYX11

 1
25627 - GASKET, EGR VALVE
25627-37020

2ZRFXE..ZYX1#

 1
25634 - GASKET, EGR PIPE
25634-37020

2ZRFXE..ZYX1#

 1
25685 - GASKET, EGR COOLER, NO.1
25685-37020

2ZRFXE..ZYX1#

 1
Common parts
90126-08050
90126-08052
90126-08060
91551-J0616
91671-80820
94151-80800
