NGX50R-AHXEXW (2016)
Toyota C-Hr

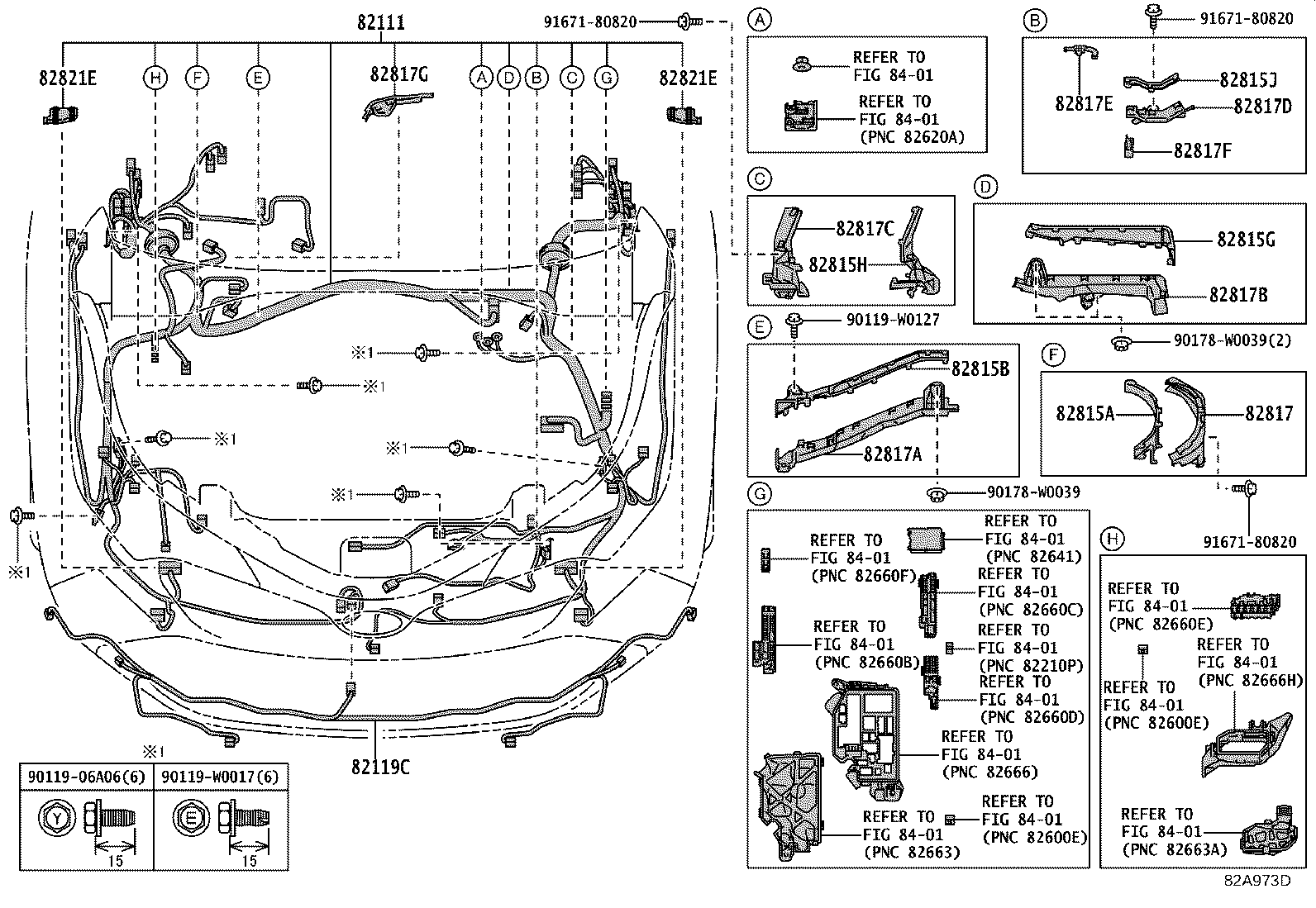

ILLUST NO. 1 OF11(1610- )NGX10,50..RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-F4500 |
NGX10,50..RHD..CVT HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82111-F4480 |
NGX10,50..RHD..CVT |
1 | ||
| 82111-F4470 |
NGX10,50..RHD..CVT UNITED KINGDOM SPEC |
1 | ||
| 82111-F4490 |
NGX10,50..RHD..CVT UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82111-F4Q80 |
NGX10,50..RHD..CVT..(E,G) UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82111-F4Q70 |
NGX10,50..RHD..CVT..(E,G) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82111-F4R00 |
NGX10,50..RHD..CVT UNITED KINGDOM SPEC |
1 | ||
| 82111-F4Q90 |
NGX10,50..RHD..CVT |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-F4010 |
NGX10,50,ZYX10..E..EUR |
1 | ||
| 82119-F4010 |
ZYX10..LHD..E;NGX10,50..E..EUR CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82119-F4010 |
NGX10,50,ZGX10..G..RUS;NGX10,50,ZYX10..(G,N)..EUR CLEARANCE & BACK SONAR-WITH & WITH(*IPA) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4240 |
NGX10,50..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4250 |
NGX10,50..RHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-F4260 |
NGX10,50..RHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-F4270 |
NGX10,50..RHD |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-F4280 |
NGX10,50,ZGX10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-F4270 |
NGX10,50..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4280 |
NGX10,50..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4290 |
NGX10,50..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4300 |
NGX10,50..RHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4310 |
NGX10,50,ZGX10 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4320 |
NGX10,50,ZGX10 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-F4470 |
NGX10,50,ZGX10 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-F4530 |
NGX10,50,ZYX10..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
NGX10,50..RHD..(E,G) UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 82821-50780 |
NGX10,50..(E,G)..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
NGX10,50..RHD..(E,G) UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 82821-50780 |
NGX10,50..(E,G)..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0127 | ||||
| 90178-W0039 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(1610- )NGX10,50
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-0Y010 |
8NRFTS..NGX10,50 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-F4160 |
NGX10,50..CVT..EUR |
1 | ||
| 82121-F4090 |
NGX10,50..CVT..EUR |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12170 |
NGX10,50 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12610 |
NGX10,50 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-12010 |
NGX10,50 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12130 |
NGX10,50 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4010 |
NGX10,50 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02700 |
NGX10,50 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02710 |
NGX10,50..EUR |
1 | ||
| 82815-12G90 |
NGX10,50..EUR |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02720 |
NGX10,50 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-F4010 |
NGX10,50 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-F4100 |
NGX10,50 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-F4110 |
NGX10,50 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-F4120 |
NGX10,50 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-F4090 |
NGX10,50..CVT |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-02L30 |
NGX10,50 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02L40 |
NGX10,50..EUR |
1 | ||
| 82817-12W40 |
NGX10,50..EUR |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02L50 |
NGX10,50 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02L60 |
NGX10,50 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-F4010 |
NGX10,50 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-F4110 |
NGX10,50 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-F4120 |
NGX10,50 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-F4130 |
NGX10,50 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4140 |
NGX10,50 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4500 |
NGX10,50 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4100 |
NGX10,50..CVT |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NGX10,50,ZGX10 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0066 | ||||
| 90119-W0103 | ||||
| 90119-W0199 | ||||
| 90178-W0019 | ||||
| 90178-W0024 | ||||
| 91671-80816 | ||||
| 91673-80625 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(1610- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-F4130 |
NGX10,50,ZYX10..RHD..(D,N) |
1 | ||
| 82151-F4160 |
NGX10,50,ZYX10..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82151-F4480 |
NGX10,50,ZYX10..RHD..E |
1 | ||
| 82151-F4480 |
NGX10,50,ZYX10..RHD..G WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82151-F4450 |
NGX10,50,ZYX10..RHD..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-F4160 |
NGX10,50,ZYX10..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82152-F4370 |
NGX10,50,ZYX10..RHD..G |
1 | ||
| 82152-F4130 |
NGX10,50,ZYX10..RHD..(D,N) |
1 | ||
| 82152-F4400 |
NGX10,50,ZYX10..RHD..E |
1 | ||
| 82152-F4400 |
NGX10,50,ZYX10..RHD..G WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-F4040 |
NGX10,50,ZYX10..RHD..(E,G,N) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-F4040 |
NGX10,50,ZYX10..RHD..(E,G,N) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-F4040 |
NGX10,50,ZYX10..G..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82184-F4060 |
NGX10,50,ZYX10..(G,N)..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82184-F4040 |
NGX10,50,ZYX10..E..EUR |
1 | ||
| 82184-F4060 |
NGX10,50,ZYX10..(E,G,N)..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82184-F4050 |
NGX10,50,ZYX10..N..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4050 |
NGX10,50,ZYX10..N..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..(E,G) UNITED KINGDOM SPEC |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..G UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82184-F4040 |
ZGX10..G,N;NGX10,50..G..RUS;NGX10,50,ZYX10..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82184-F4280 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4280 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4180 |
NGX10,50,ZYX10..RHD..(G,N) UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82184-F4230 |
NGX10,50,ZYX10..G..EUR |
1 | ||
| 82184-F4180 |
NGX10,50,ZYX10..RHD..(E,G,N) UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82184-F4030 |
NGX10,50,ZGX10,ZYX10..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4150 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC |
1 | ||
| 82184-F4030 |
NGX10,50,ZGX10,ZYX10..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4150 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-F4230 |
ZGX10..G,N;NGX10,50..G..RUS;NGX10,50,ZYX10..N |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82184-F4040 |
NGX10,50,ZYX10..E..EUR REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82184-F4040 |
NGX10,50,ZYX10..G..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82184-F4180 |
NGX10,50,ZYX10..RHD..(E,G) UNITED KINGDOM SPEC |
1 | ||
| 82184-F4060 |
NGX10,50,ZYX10..(E,G)..EUR |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..(E,G) UNITED KINGDOM SPEC&REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82184-F4230 |
NGX10,50,ZYX10..G..EUR REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82184-F4160 |
NGX10,50,ZYX10..RHD..G UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-F4440 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 8970A - CORD SUB-ASSY, THEFT WARNING SENSOR | ||||
| 8970A-10010 |
NGX10,50,ZYX10..RHD UNITED KINGDOM SPEC |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
ILLUST NO. 5 OF11(1610- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F4530 |
NGX50..RHD..E |
1 | ||
| 82161-F4540 |
NGX50..RHD..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-F4500 |
NGX50..RHD..(G,N) |
1 | ||
| 82161-F4530 |
NGX50..RHD..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82161-F4540 |
NGX50..RHD..E BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-F4J60 |
NGX50..RHD..E |
1 | ||
| 82161-F4J70 |
NGX50..RHD..E BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-F4J50 |
NGX50..RHD..(G,N) |
1 | ||
| 82161-F4J60 |
NGX50..RHD..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82161-F4J70 |
NGX50..RHD..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&BLIND SPOT MONITOR-WITH |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-F4010 |
NGX50 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-F4030 |
NGX50..N..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82163-F4030 |
NGX50..(E,G)..EUR HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-F4030 |
NGX10,50,ZYX10..E..EUR |
1 | ||
| 82169-F4030 |
NGX10,50..G..RUS;NGX10,50,ZYX10..(G,N)..EUR CLEARANCE & BACK SONAR-WITH & WITH(*IPA) |
1 | ||
| 82169-F4010 |
ZGX10;NGX10,50..E..RUS;NGX10,50,ZYX10..D,G,N |
1 | ||
| 82169-F4010 |
ZYX10..LHD..E;NGX10,50..E..EUR CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 8216A-F4010 |
NGX50 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-F4330 |
NGX10,50,ZYX10..RHD..(G,N) UNITED KINGDOM SPEC |
1 | ||
| 82171-F4410 |
NGX10,50,ZYX10..RHD..(G,N) |
1 | ||
| 82171-F4360 |
NGX10,50,ZYX10..RHD..E UNITED KINGDOM SPEC |
1 | ||
| 82171-F4360 |
NGX10,50,ZYX10..RHD..(G,N) UNITED KINGDOM SPEC&SUN VISOR-WITH(*DRP MIRROR & LAMP) |
1 | ||
| 82171-F4420 |
NGX10,50,ZYX10..RHD..E |
1 | ||
| 82171-F4420 |
NGX10,50,ZYX10..RHD..(G,N) SUN VISOR-WITH(*DRP MIRROR & LAMP) |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
NGX10,50,ZGX10,ZYX10 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-F4060 |
NGX50 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26080 |
NGX10,50,ZGX10 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NGX50..N..EUR;NGX10,ZGX10,ZYX10..D,N |
2 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 890C0-F4090 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-F4100 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 890C0-F4020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90178-W0039 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
| 8615 | ||||
ILLUST NO. 7 OF11(1610- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-F4021 |
NGX10,50,ZYX10..RHD..(E,G) |
1 | ||
| 82191-F4020 |
NGX10,50,ZYX10..RHD..(E,G) |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 8219A-F4010 |
NGX10,50,ZYX10..RHD..(E,G) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-F4011 |
NGX10,50,ZYX10..RHD..(E,G) |
1 | ||
| 82192-F4010 |
NGX10,50,ZYX10..RHD..(E,G) |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 82191-F4050 |
NGX10,50,ZYX10..RHD |
1 | ||
ILLUST NO. 8 OF11(1610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-02P40 | ||||
| 82715-02Y10 | ||||
| 82715-10300 | ||||
| 82715-10520 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12R70 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12S90 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47760 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-48G10 | ||||
| 82715-48G20 | ||||
| 82715-48G30 | ||||
| 82715-48G60 | ||||
| 82715-5C050 | ||||
| 82715-6A460 | ||||
| 82715-76090 | ||||
| 82715-F4020 | ||||
| 82715-F4030 | ||||
| 82715-F4040 | ||||
| 82715-F4050 | ||||
| 82715-F4060 | ||||
| 82715-F4070 | ||||
| 82729-20150 | ||||
| 90105-W0086 | ||||
| 90119-06A12 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90119-W0199 | ||||
| 90119-W0356 | ||||
| 91621-B0816 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80625 | ||||
ILLUST NO. 9 OF11(1610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-02W80 | ||||
| 82715-02W90 | ||||
| 82715-02X20 | ||||
| 82715-02X40 | ||||
| 82715-02X50 | ||||
| 82715-02X60 | ||||
| 82715-02X70 | ||||
| 82715-0Z050 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-33N10 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-76790 | ||||
| 82715-F4010 | ||||
| 82715-F4120 | ||||
| 82715-F4250 | ||||
| 82715-F4260 | ||||
| 89348-50050 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90119-W0356 | ||||
| 90178-W0039 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.11 OF11(1610- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12211 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
ILLUST NO.10 OF11(1610- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11660 | ||||
| 90980-12B01 | ||||
| 90980-12B90 | ||||
| 90980-12C12 | ||||
| 90980-12C13 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||
ILLUST NO. 3 OF11(1610- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F4640 |
NGX10,50..RHD..CVT..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82141-F4660 |
NGX10,50..RHD..CVT..(G,N) AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82141-F4650 |
NGX10,50..RHD..CVT..(G,N) |
1 | ||
| 82141-F4720 |
NGX10,50..RHD..CVT..E AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82141-F4710 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82141-F4700 |
NGX10,50..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82141-F4720 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82141-F4660 |
NGX10,50..RHD..CVT..(G,N) AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82141-F4710 |
NGX10,50..RHD..CVT..E |
1 | ||
| 82141-F4720 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82141-F4720 |
NGX10,50..RHD..CVT..E AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82145-F4030 |
NGX10,50..RHD..CVT..(G,N) AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82145-F4030 |
NGX10,50..RHD..CVT..(G,N) AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82145-F4010 |
NGX10,50..RHD..CVT..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82145-F4060 |
NGX10,50..RHD..CVT..E AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82145-F4050 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)) |
1 | ||
| 82145-F4050 |
NGX10,50..RHD..CVT..E |
1 | ||
| 82145-F4060 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-*DA & 9SPEAKER & USB |
1 | ||
| 82145-F4020 |
NGX10,50..RHD..CVT..(G,N) |
1 | ||
| 82145-F4060 |
NGX10,50..RHD..CVT..(G,N) WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82145-F4040 |
NGX10,50..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82145-F4060 |
NGX10,50..RHD..CVT..E AUDIO-*DA & 9SPEAKER & DAB & USB |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-F4020 |
NGX10,50,ZYX10..RHD..(G,N) ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 82142-F4020 |
NGX10,50,ZYX10..RHD..E |
1 | ||
| 82142-F4040 |
NGX10,50,ZYX10..RHD..(D,G,N) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02350 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-60546 | ||||
| 90159-W0019 | ||||
| 90178-W0019 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
