NGX50R-AHXEXW (2016)

Toyota C-Hr

Production Oct 2016 - Sep 2019

Engine 8NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1610-1703)RHD

Click highlighted areas on diagram

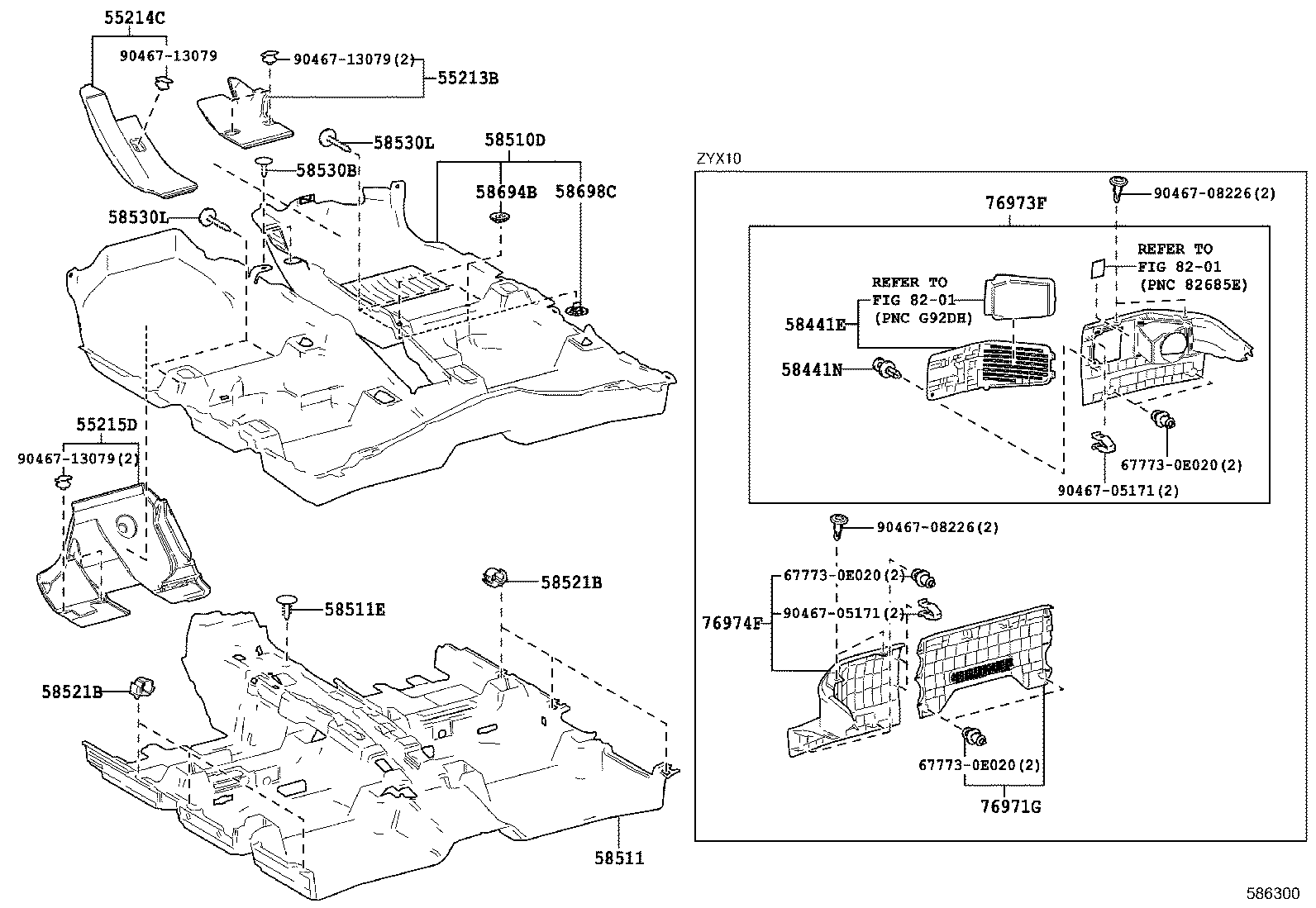

FLOOR CARPET

diagram

Part #	Description	Period	Qty	Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
58510D - CARPET ASSY, FLOOR, FRONT
58510-F4040C1	NGX50..RHD EU BLACK,TRIM2#	10/2016 - 05/2018	1
58510-F4040C2	NGX50..RHD BLACK,TRIM2#	05/2018 - 09/2019	1
58511 - MAT, FLOOR, FRONT
58511-F4040	NGX50..EUR	10/2016 - 09/2019	1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C0	NGX10,50,ZGX10,ZYX10 BLACK	10/2016 - 02/2017	1
90467-07042C4	NGX10,50,ZGX10,ZYX10 BLACK	02/2017 - 09/2019	1
58521B - HOOK, FLOOR CARPET
58521-47030	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	6
58521B - HOOK, FLOOR CARPET
58521-47030	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C4	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	05/2018 - 09/2019	2
90467-W0006C2	NGX10,50,ZGX10,ZYX10 EU BLACK,TRIM2#	10/2016 - 05/2018	2
58530L - CLIP, FLOOR CARPET, CENTER
64726-10020C2	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	10/2016 - 09/2019	4
58530L - CLIP, FLOOR CARPET, CENTER
64726-10020C2	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	10/2016 - 09/2019	4
58694B - PLATE, MAT SET, UPPER
58694-78010	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	2
58698C - PLATE, MAT SET, LOWER
58698-78010	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	2
Common parts
67773-0E020
90467-05171
90467-08226
90467-13079
Linked diagrams
8201

ILLUST NO. 1 OF 2(1703- )RHD

Click highlighted areas on diagram

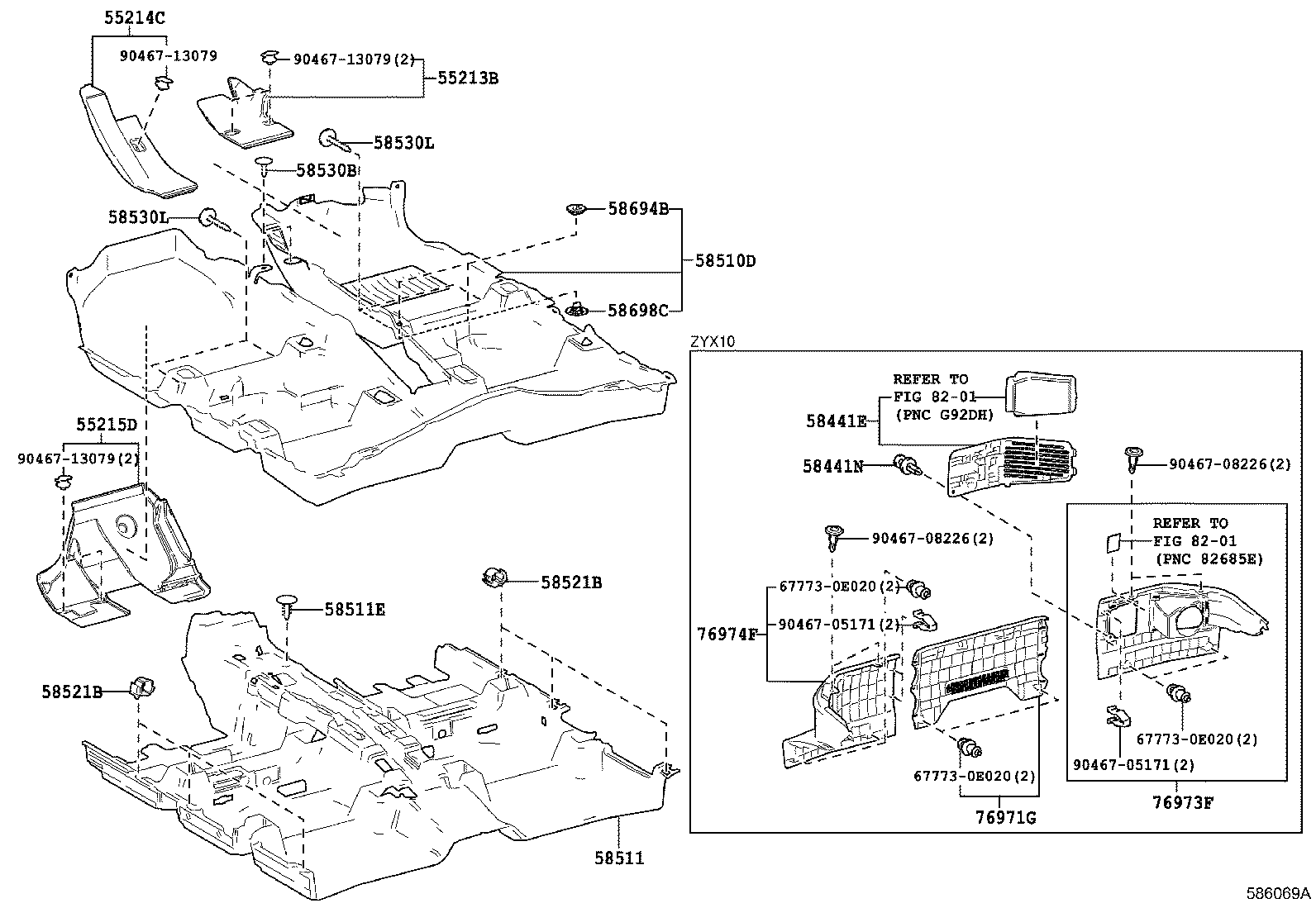

FLOOR CARPET

diagram

Part #	Description	Period	Qty	Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-F4020	NGX10,50,ZYX10..RHD	10/2016 - 09/2019	1
58510D - CARPET ASSY, FLOOR, FRONT
58510-F4040C1	NGX50..RHD EU BLACK,TRIM2#	10/2016 - 05/2018	1
58510-F4040C2	NGX50..RHD BLACK,TRIM2#	05/2018 - 09/2019	1
58511 - MAT, FLOOR, FRONT
58511-F4040	NGX50..EUR	10/2016 - 09/2019	1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C0	NGX10,50,ZGX10,ZYX10 BLACK	10/2016 - 02/2017	1
90467-07042C4	NGX10,50,ZGX10,ZYX10 BLACK	02/2017 - 09/2019	1
58521B - HOOK, FLOOR CARPET
58521-47030	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	6
58521B - HOOK, FLOOR CARPET
58521-47030	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C4	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	05/2018 - 09/2019	2
90467-W0006C2	NGX10,50,ZGX10,ZYX10 EU BLACK,TRIM2#	10/2016 - 05/2018	2
58530L - CLIP, FLOOR CARPET, CENTER
64726-10020C2	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	10/2016 - 09/2019	4
58530L - CLIP, FLOOR CARPET, CENTER
64726-10020C2	NGX10,50,ZGX10,ZYX10 BLACK,TRIM2#	10/2016 - 09/2019	4
58694B - PLATE, MAT SET, UPPER
58694-78010	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	2
58698C - PLATE, MAT SET, LOWER
58698-78010	NGX10,50,ZGX10,ZYX10	10/2016 - 09/2019	2
Common parts
67773-0E020
90467-05171
90467-08226
90467-13079
Linked diagrams
8201

ILLUST NO. 2 OF 2(1805- )RHD

Click highlighted areas on diagram

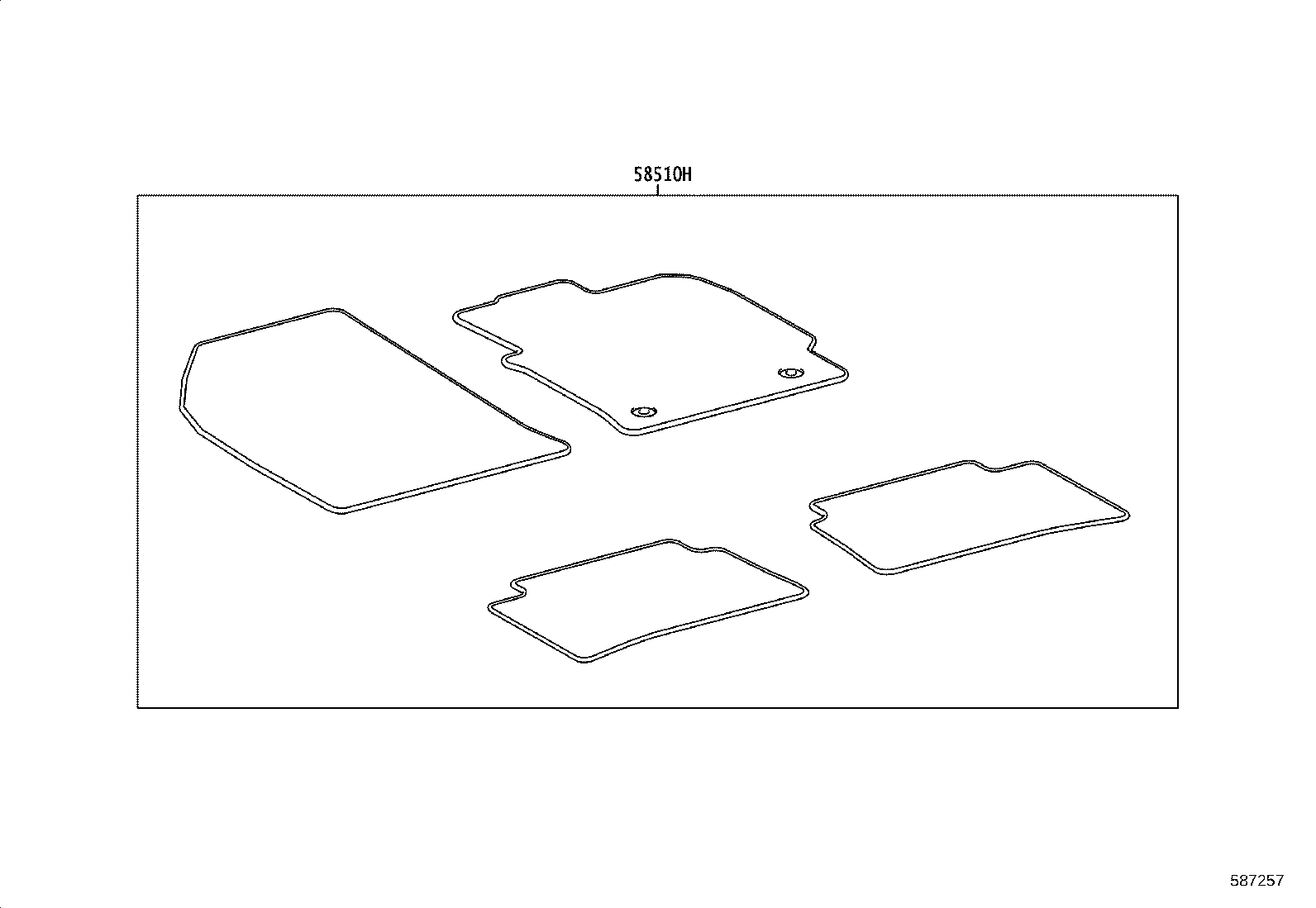

FLOOR MAT

diagram

Part #

Description

Qty

Price

58510H - MAT ASSY, FLOOR

58510-YYQ90C1

NGX50..RHD

FLOOR MAT(*417)-TEXTILE(HIGH GRADE),BLACK,TRIM2#

1
