NGX50L-AHXNXX (2019)
Toyota C-Hr

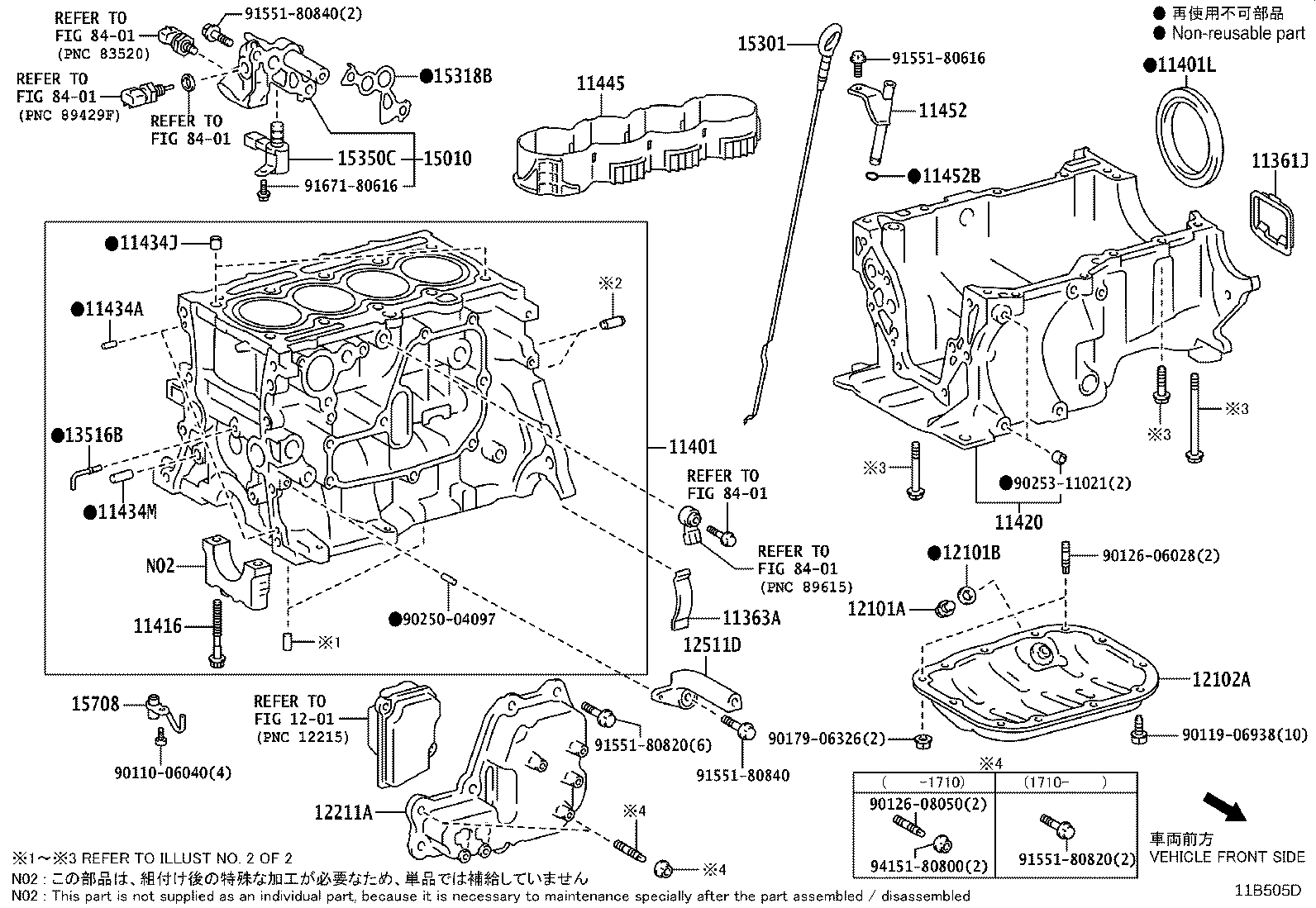

ILLUST NO. 1 OF 2(1610- )8NRFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-21011 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-33010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-49065 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-78002 |
8NRFTS..NGX10,50 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02163 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
10 | ||
| 11420 - CRANKCASE ASSY, STIFFENING | ||||
| 11420-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR L=12,OD=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
2 | ||
| 11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-47040 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-47030 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-47030 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 12211A - CASE, VENTILATION, NO.1 | ||||
| 12211-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 12511D - BRACKET, ALTERNATOR | ||||
| 12511-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 13516B - JET, OIL | ||||
| 13516-40010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 15010 - HOUSING ASSY, OIL PUMP RELIEF VALVE | ||||
| 15010-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-47070 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 15318B - GASKET, OIL REGULATOR BODY | ||||
| 15318-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 15350C - VALVE ASSY, OIL PRESSURE SWITCHING | ||||
| 15350-47010 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-47070 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
4 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90119-06938 | ||||
| 90126-06028 | ||||
| 90126-08050 | ||||
| 90179-06326 | ||||
| 90250-04097 | ||||
| 90253-11021 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80840 | ||||
| 91671-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8401 | ||||

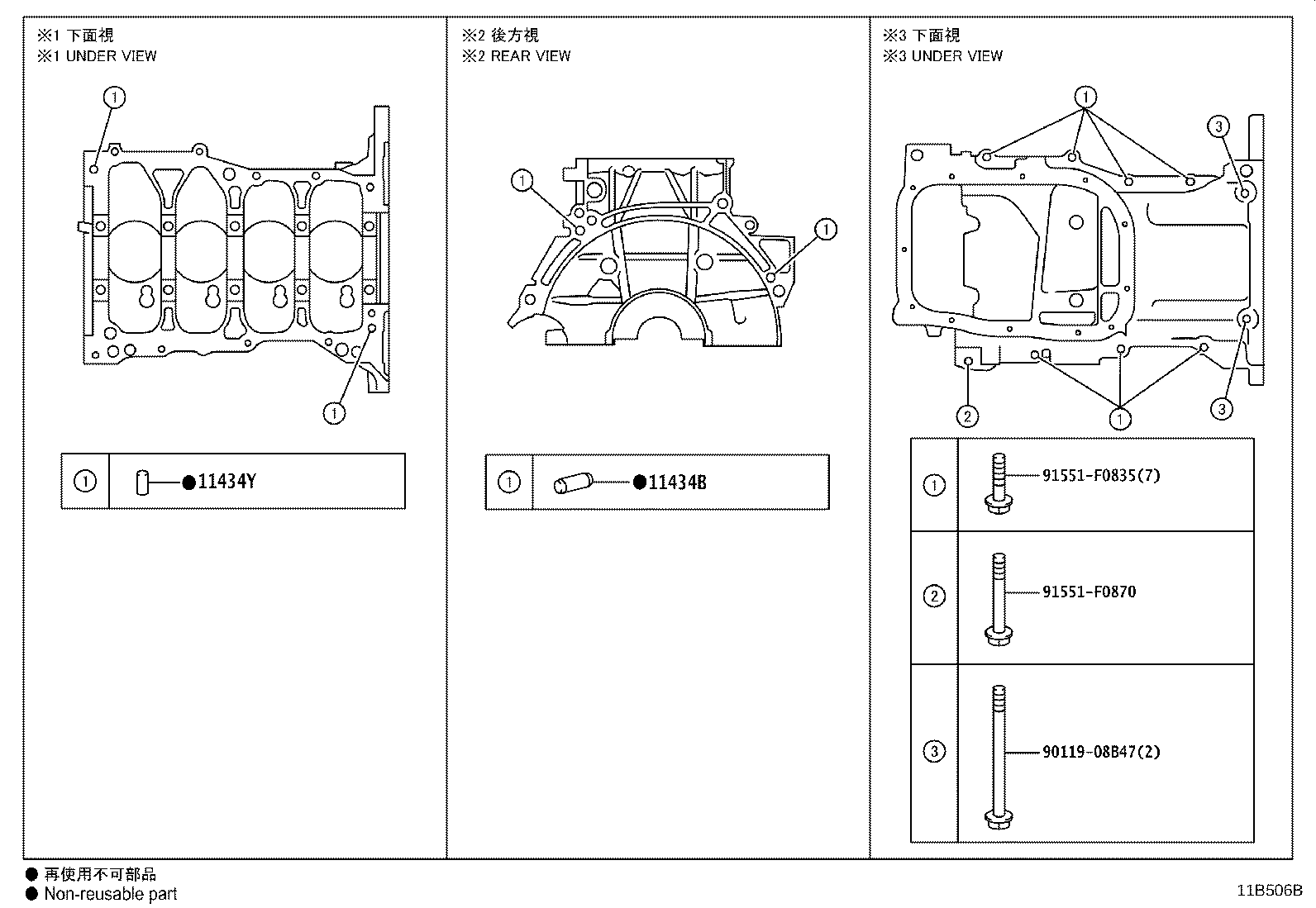

ILLUST NO. 2 OF 2(1610- )8NRFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR L=22,OD=10 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
8NRFTS..NGX50;8NRFTS..NGX10..EUR |
2 | ||
| Common parts | ||||
| 90119-08B47 | ||||
| 91551-F0835 | ||||
| 91551-F0870 | ||||
