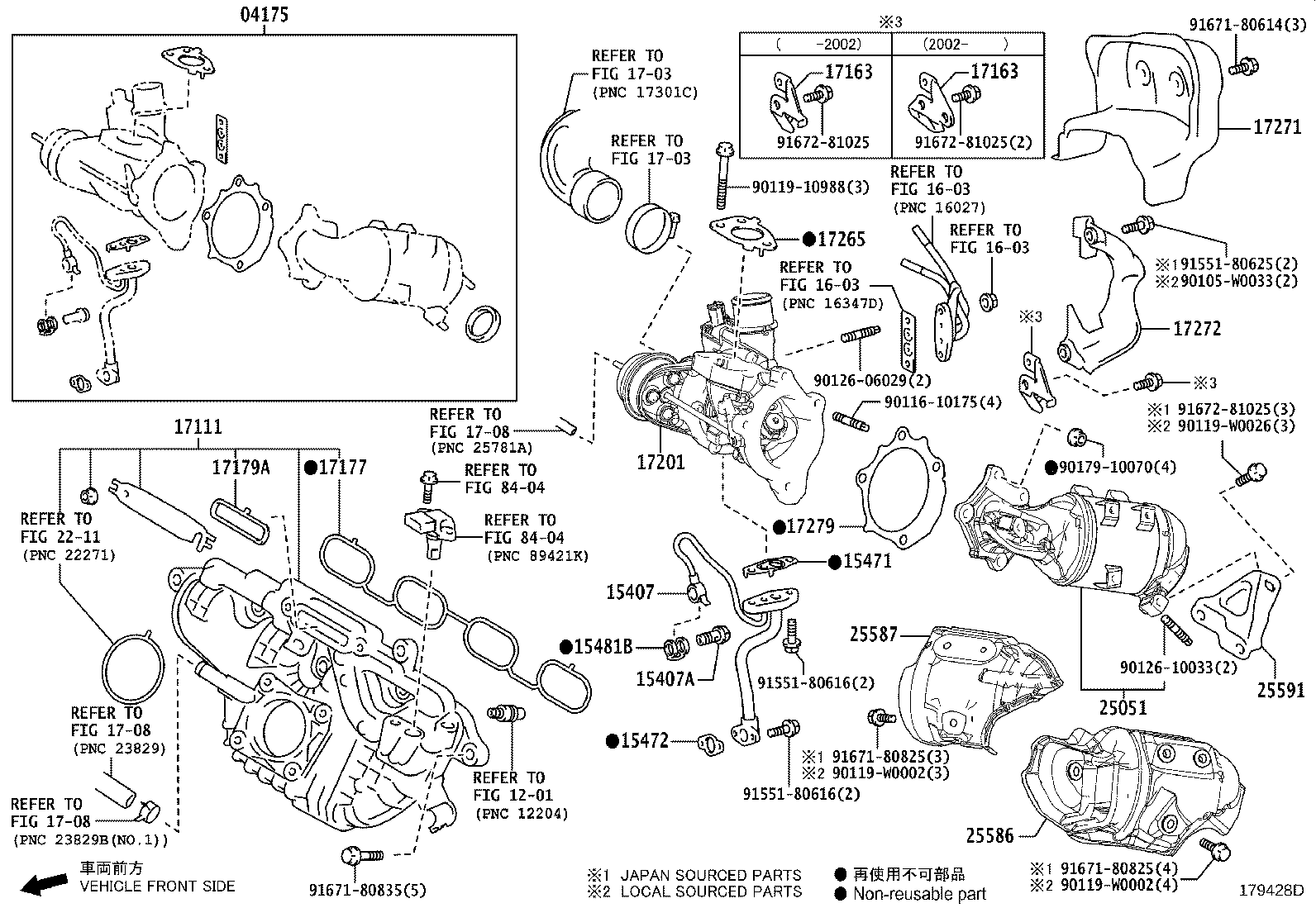

Toyota C-hr NGX50 MANIFOLD - JDM Part Detective

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-47030	8NRFTS..NGX50	10/2016 - 09/2019	1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-47011	8NRFTS..NGX10,50	10/2016 - 09/2019	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
96341-11200	8NRFTS..NGX10,50	10/2016 - 09/2019	1
15471 - GASKET, TURBO OIL INLET
15471-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
15481B - GASKET(FOR UNION BOLT NO.1)
90430-12037	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17111 - MANIFOLD, INTAKE
17120-47100	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17163 - BRACKET, HEAT INSULATOR, NO.1
17586-47010	8NRFTS..NGX10,50	10/2016 - 02/2018	1
17586-47011	8NRFTS..NGX10,50	03/2018 - 09/2019	1
17163 - BRACKET, HEAT INSULATOR, NO.1
17586-47010	8NRFTS..NGX10,50	10/2016 - 02/2018	1
17586-47011	8NRFTS..NGX10,50	03/2018 - 09/2019	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-47050	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17201 - TURBOCHARGER SUB-ASSY
17201-47030	8NRFTS..NGX50	10/2016 - 09/2019	1
17265 - GASKET, TURBOCHARGER
17265-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17271 - INSULATOR, TURBO, NO.1
17271-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17272 - INSULATOR, TURBO, NO.2
17272-47010	8NRFTS..NGX10,50	10/2016 - 09/2019	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-47020	8NRFTS..NGX50	10/2016 - 09/2019	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47160	8NRFTS..NGX50..RUS 114=464	10/2016 - 09/2019	1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-47020	8NRFTS..NGX50	10/2016 - 09/2019	1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-47010	8NRFTS..NGX50..RUS	10/2016 - 09/2019	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-47020	8NRFTS..NGX50	10/2016 - 09/2019	1
Common parts
90105-W0033
90116-10175
90119-10988
90119-W0002
90119-W0026
90126-06029
90126-10033
90179-10070
91551-80616
91551-80625
91671-80614
91671-80825
91671-80835
91672-81025
Linked diagrams
1201
1603
1703
1708
2211
8404

NGX50L-AHXEXX (2016)

(1610-1805)8NRFTS..NGX50 ; (1805- )8NRFTS..NGX50..RUS
