NGX50L-AHXEXW (2019)

Toyota C-Hr

Production Sep 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )

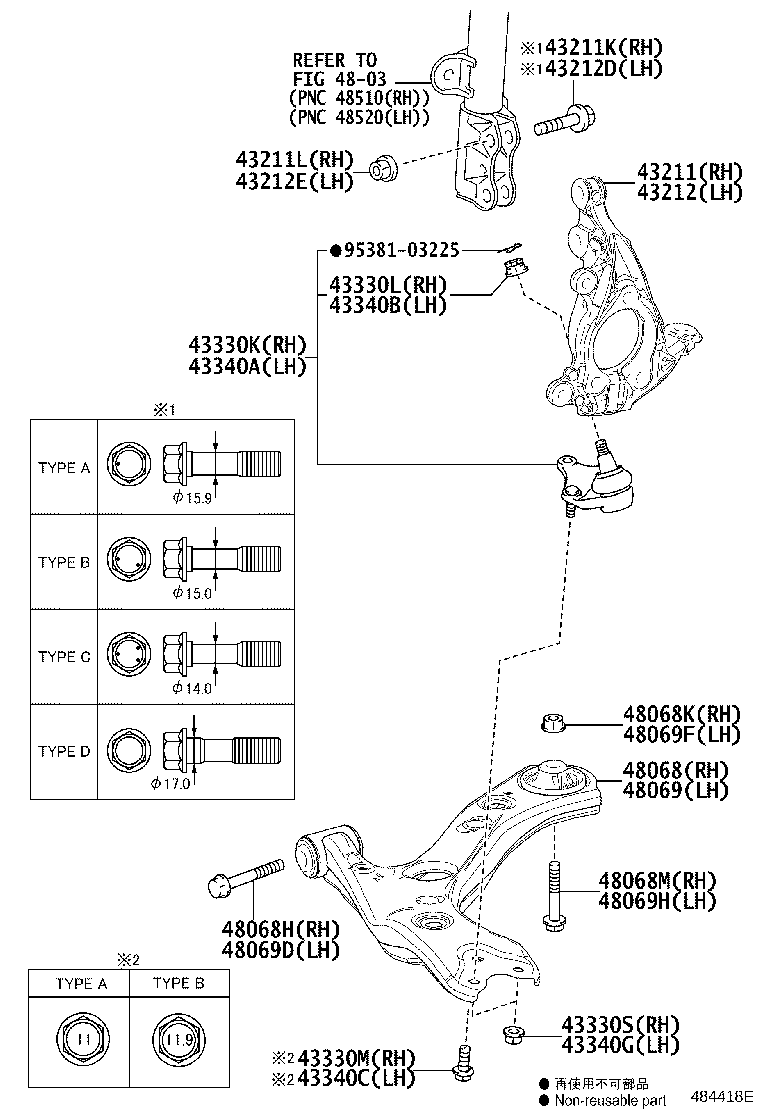

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-F4010

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17011

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=14,TYPE C:REFER ILLUST.

 1
90105-17009

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=15.9,TYPE A:REFER ILLUST.

 1
90105-17010

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=15,TYPE B:REFER ILLUST.

 1
90105-W0070

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=17,TYPE D:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

MAXH10,NGX10,50,ZGX10,ZYX1#

 2
43212 - KNUCKLE, STEERING, LH
43212-F4010

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=15,TYPE B:REFER ILLUST.

 1
90105-W0070

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=17,TYPE D:REFER ILLUST.

 2
90105-17011

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=14,TYPE C:REFER ILLUST.

 1
90105-17009

MAXH10,NGX10,50,ZGX10,ZYX1#

OD=15.9,TYPE A:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

MAXH10,NGX10,50,ZGX10,ZYX1#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09631

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346

MAXH10,NGX10,50,ZGX10,ZYX1#

TYPE A:REFER ILLUST.

 1
90105-12407

MAXH10,NGX10,50,ZGX10,ZYX1#

TYPE B:REFER ILLUST.

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

MAXH10,NGX10,50,ZGX10,ZYX1#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09631

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12407

MAXH10,NGX10,50,ZGX10,ZYX1#

TYPE B:REFER ILLUST.

 1
90105-12346

MAXH10,NGX10,50,ZGX10,ZYX1#

TYPE A:REFER ILLUST.

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

MAXH10,NGX10,50,ZGX10,ZYX1#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-10130

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16091

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-W0045

MAXH10,NGX10,50,ZGX10,ZYX1#

(L)

 1
90179-14068

MAXH10,NGX10,50,ZGX10,ZYX1#

(J)

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-W0279

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-10110

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16091

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90179-14068

MAXH10,NGX10,50,ZGX10,ZYX1#

(J)

 1
90178-W0045

MAXH10,NGX10,50,ZGX10,ZYX1#

(L)

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-W0279

MAXH10,NGX10,50,ZGX10,ZYX1#

 1
Common parts
95381-03225
Linked diagrams
4803
