NGX50L-AHXEXW (2019)
Toyota C-Hr
Production
Sep 2019
-
Sep 9999
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

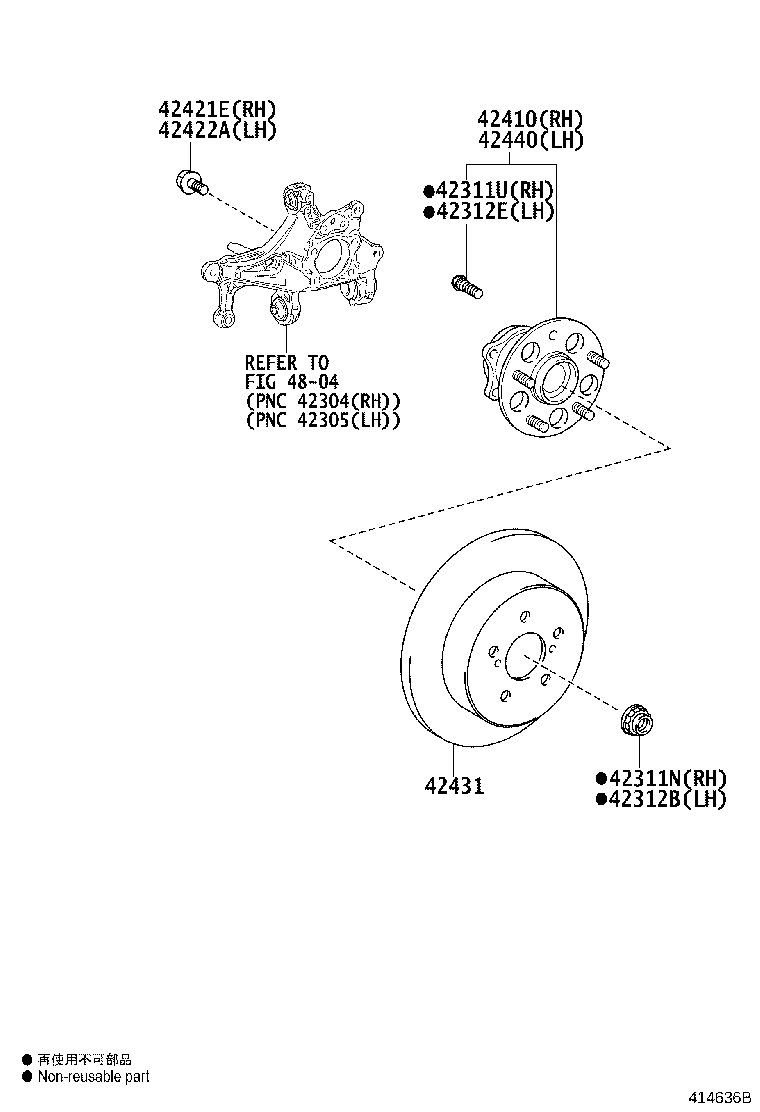

ILLUST NO. 1 OF 2(1610- )NGX50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
NGX50 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02082 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
NGX50 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02082 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR |
5 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-F4010 |
NGX50 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-W0164 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR (L) |
4 | ||
| 90105-12350 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR (J) |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12350 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR (J) |
4 | ||
| 90105-W0164 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR (L) |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-F4020 |
NGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-F4010 |
NGX50 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||

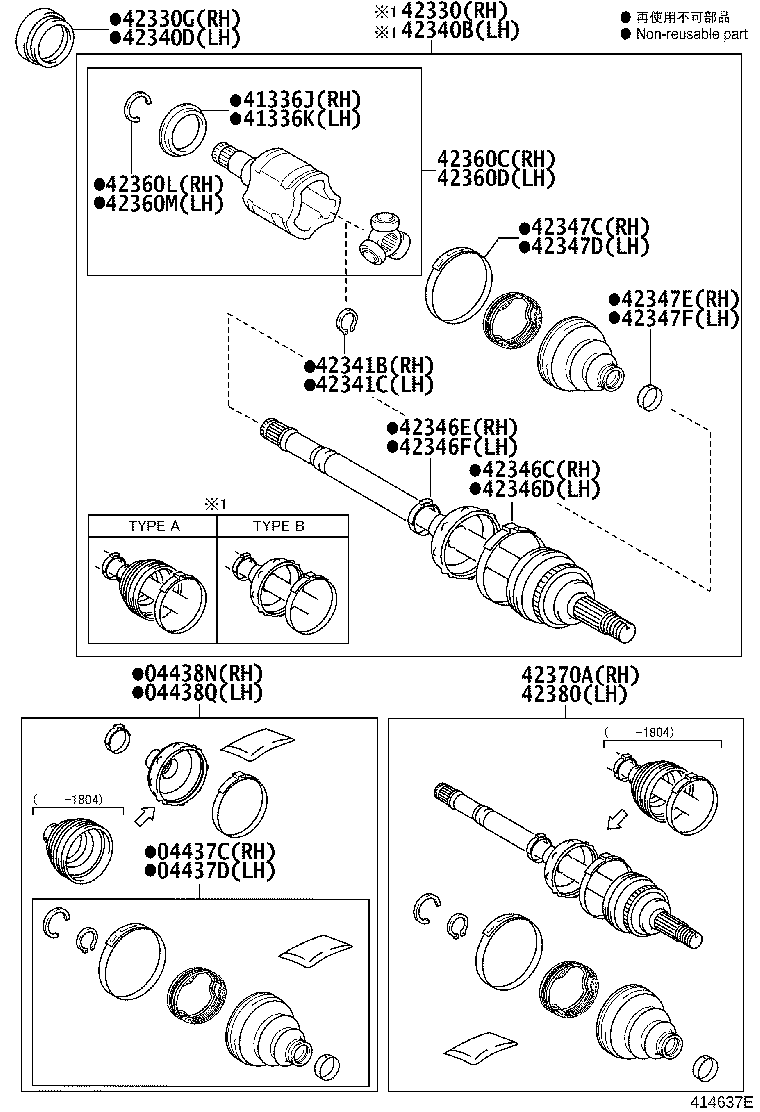

ILLUST NO. 2 OF 2(1610- )NGX50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-F4010 |
NGX50 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-F4010 |
NGX50 |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-F4011 |
NGX50 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-F4011 |
NGX50 |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-F4030 |
NGX50 |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-F4030 |
NGX50 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-F4010 |
NGX50 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-37004 |
NGX50 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-F4010 |
NGX50 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-37004 |
NGX50 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-F4040 |
NGX50 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-F4040 |
NGX50 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-F4080 |
NGX50 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-F4080 |
NGX50 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-F4090 |
NGX50 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-F4090 |
NGX50 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-F4040 |
NGX50 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-F4040 |
NGX50 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-F4070 |
NGX50 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-F4070 |
NGX50 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-F4010 |
NGX50 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-F4010 |
NGX50 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 43425-F4030 |
NGX50 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 43425-F4030 |
NGX50 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-F9011 |
NGX50 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-F9021 |
NGX50 |
1 | ||
