NGX10L-AHFGXX (2019)
Toyota C-Hr
Production
Sep 2019
-
Sep 9999
Engine
8NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

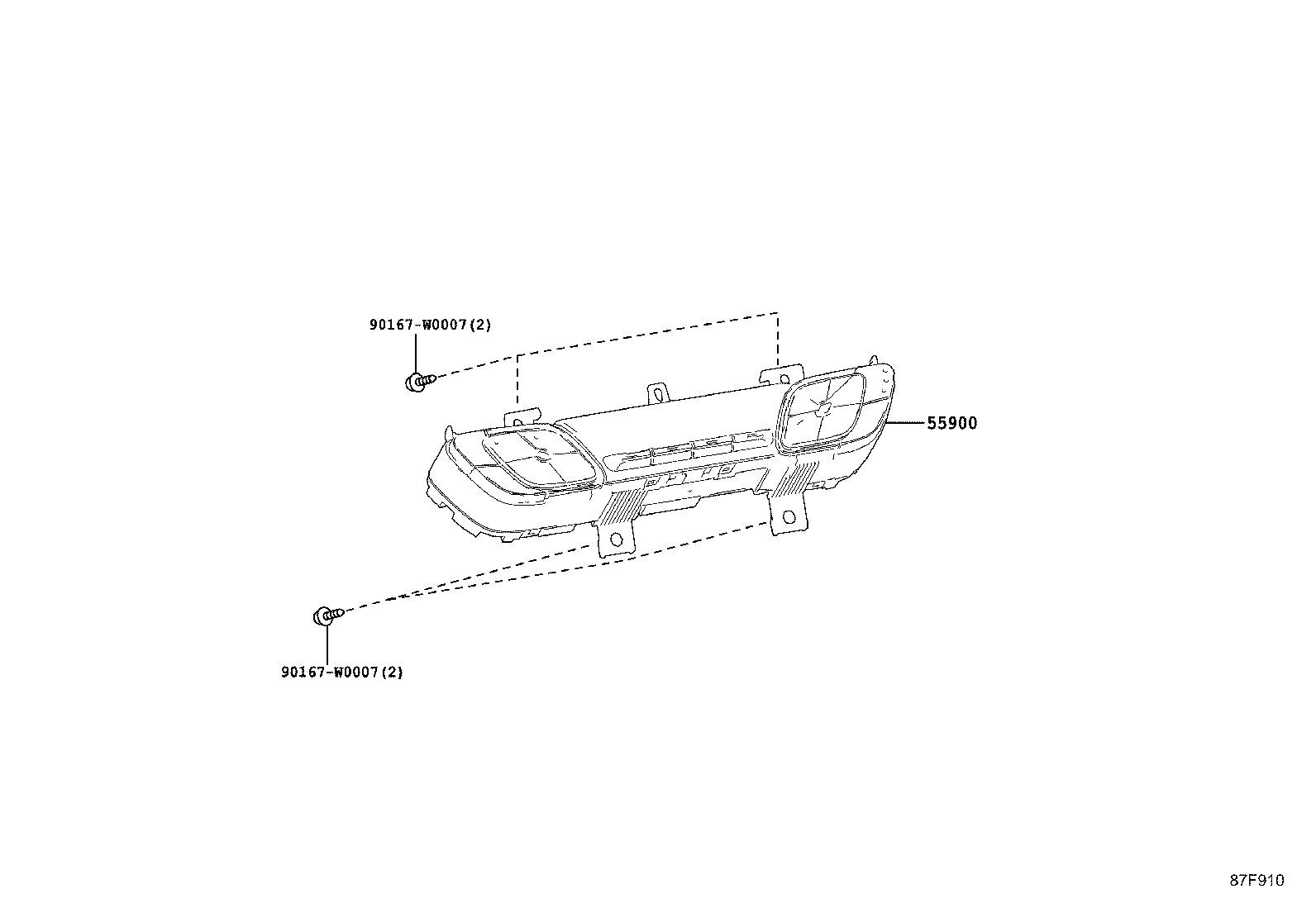

ILLUST NO. 1 OF 3(1610- )
Click highlighted areas on diagram
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-F4380 |
NGX10..(E,G,K)..RUS |
1 | ||
| 55900-F4380 |
NGX10..N..RUS SEAT HEATER-WITH |
1 | ||
| 55900-F4390 |
NGX10..N..RUS |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||

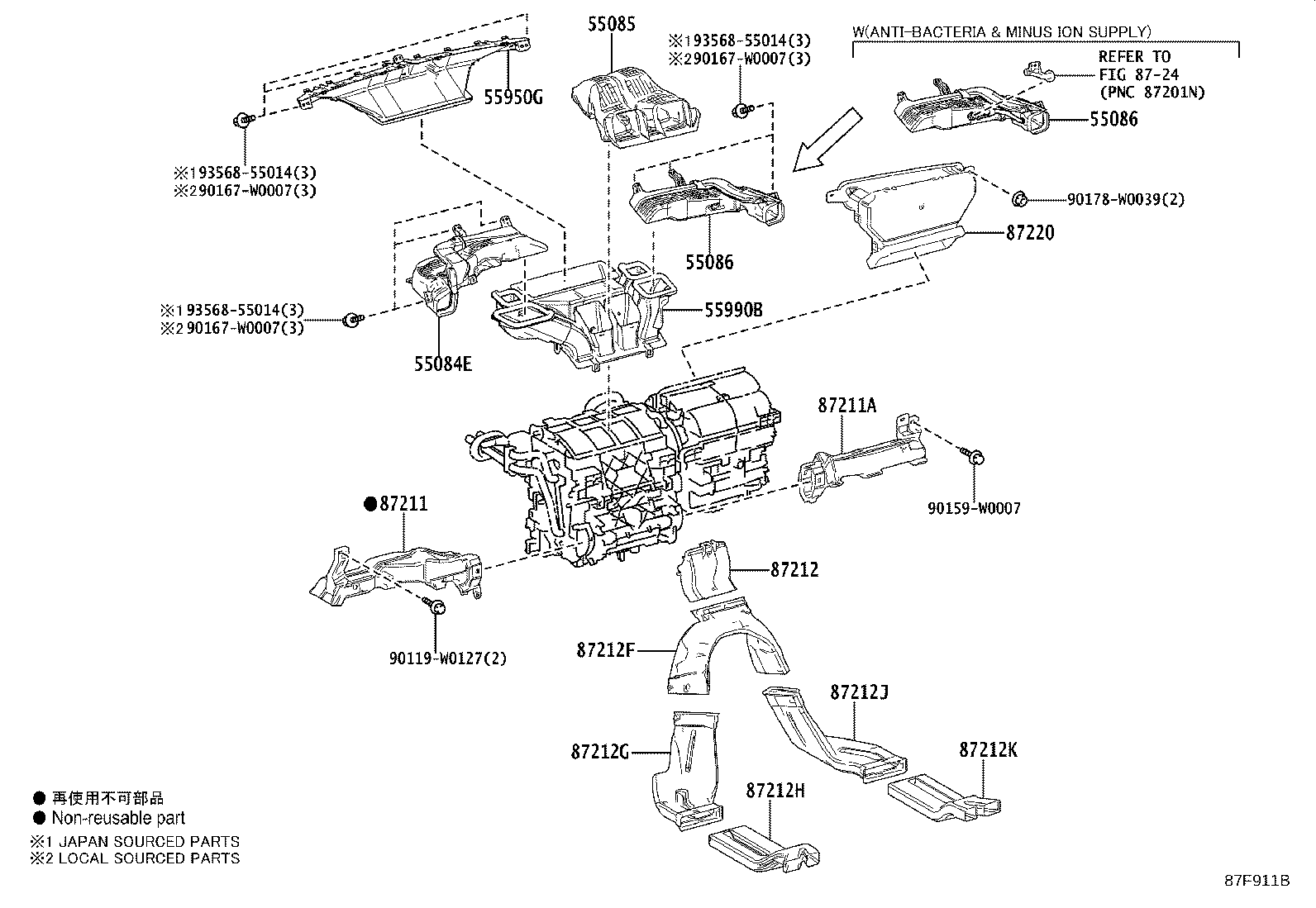

ILLUST NO. 2 OF 3(1610- )LHD
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-F4010 |
NGX10..RUS |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-F4010 |
NGX10..RUS |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-F4120 |
NGX10..(G,K,N)..RUS |
1 | ||
| 55086-F4130 |
NGX10..G..RUS ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-F4120 |
NGX10..(G,K,N)..RUS |
1 | ||
| 55086-F4130 |
NGX10..G..RUS ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-F4010 |
NGX10..RUS |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-F4010 |
NGX10..RUS |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-F4010 |
NGX10..RUS |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-F4020 |
NGX10..RUS |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87413-F4011 |
NGX10..RUS |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-F4010 |
NGX10..RUS |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-F4010 |
NGX10..RUS |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-F4010 |
NGX10..RUS |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-F4010 |
NGX10..RUS |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-F4010 |
NGX10..RUS |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-F4060 |
NGX10..RUS |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90159-W0007 | ||||
| 90167-W0007 | ||||
| 90178-W0039 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

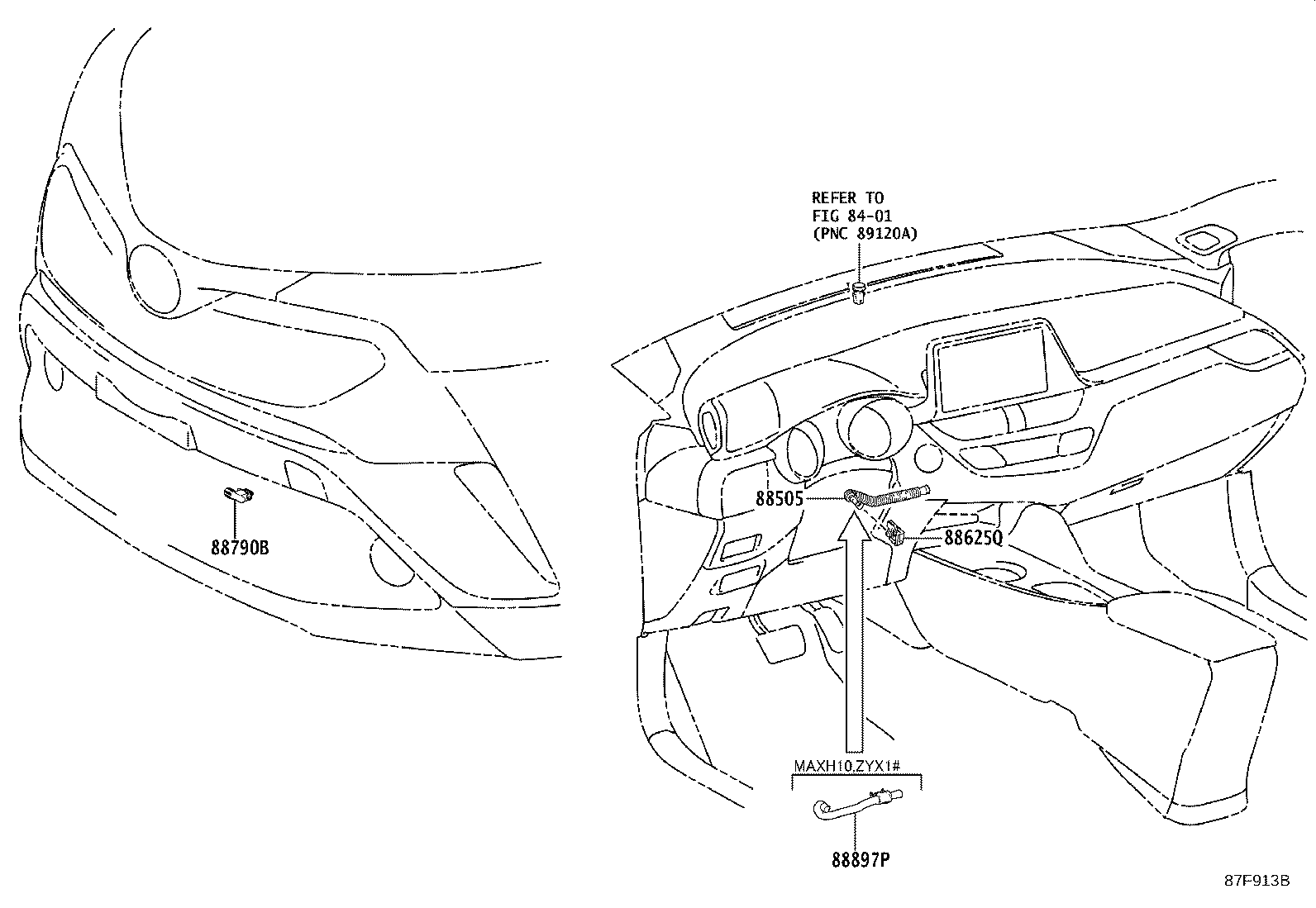

ILLUST NO. 3 OF 3(1610- )LHD
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-F4010 |
NGX10..RUS |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NGX10..RUS |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
NGX10..RUS |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
