MAXH10L-AHXKBW (2019)

Toyota C-Hr

Production Sep 2019 - Sep 9999
Engine M20AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1909- )MAXH10..LHD

Click highlighted areas on diagram

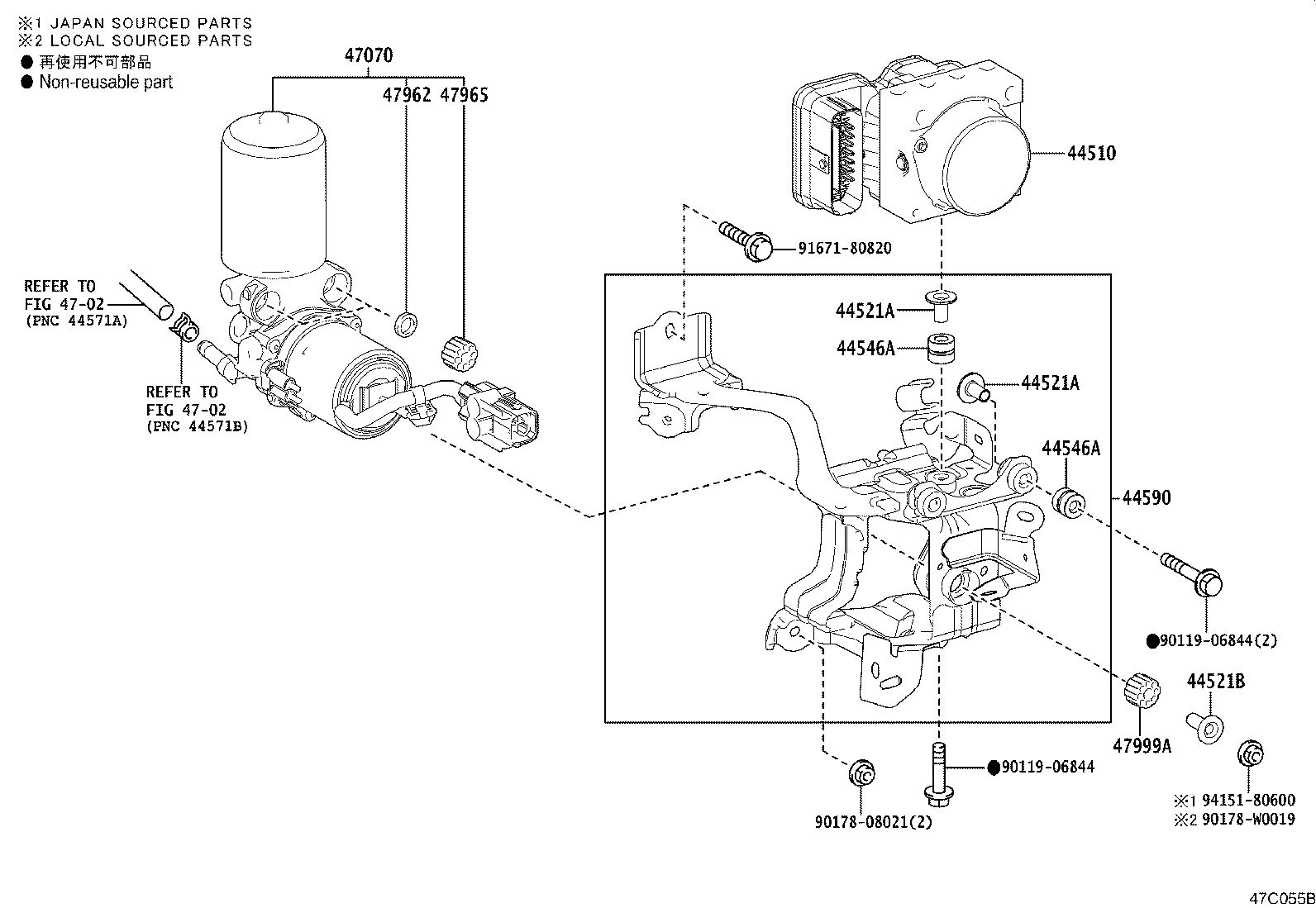

BRAKE ACTUATOR & BOOSTER PUMP

diagram 44510 44521A 44521A 44521B 44546A 44546A 44590 4702 4702 47070 47962 47965 47999A 9011906844 9011906844 9017808021 90178W0019 9167180820 9415180600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-10010

MAXH10,ZYX1#

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D020

MAXH10,ZYX1#

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D020

MAXH10,ZYX1#

 3
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-47010

MAXH10,ZYX1#

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

MAXH10,ZYX1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12120

MAXH10,ZYX1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02500

MAXH10..LHD

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-12040

MAXH10..LHD

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

MAXH10,ZYX1#

 2
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

MAXH10,ZYX1#

 2
47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-30010

MAXH10,ZYX1#

 1
Common parts
90119-06844
90178-08021
90178-W0019
91671-80820
94151-80600
Linked diagrams
4702
