F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )GCC,GEN,MXC,SA ; (1801- )STD..PHL; (1801- )4AT..MID..PHL

Click highlighted areas on diagram

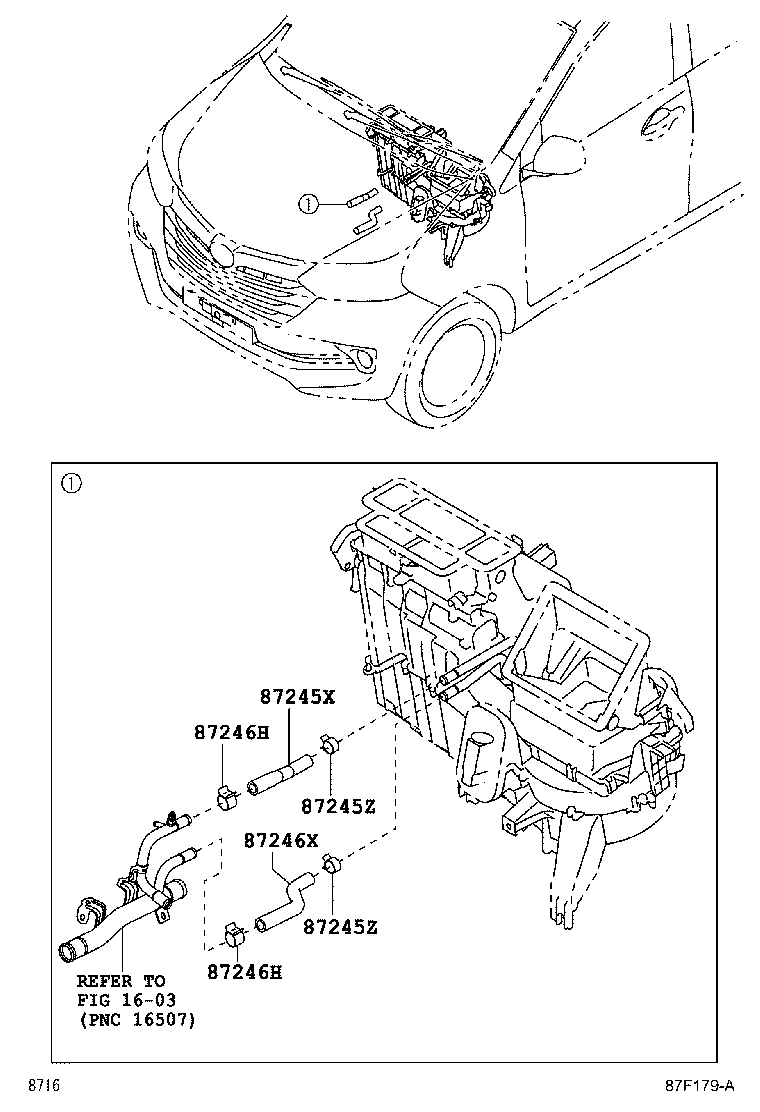

diagram 1603 87245X 87245Z 87245Z 87246H 87246H 87246X
Part # Description Qty Price
87245X - HOSE, HEATER WATER
87245-BZ190

F65#..GCC,GEN,MXC,SA

 1
87245-BZ190

F65#..GCC,GEN,MXC,SA

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

F65#..GCC,GEN,MXC,SA

 2
96138-42501

F65#..GCC,GEN,MXC,SA

 2
96138-42501

F65#..GCC,GEN,MXC,SA

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

F65#..GCC,GEN,MXC,SA

 2
96138-42501

F65#..GCC,GEN,MXC,SA

 2
96138-42501

F65#..GCC,GEN,MXC,SA

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
88718-97209

F65#..GCC,GEN,MXC,SA

 2
88718-97209

F65#..GCC,GEN,MXC,SA

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
88718-97209

F65#..GCC,GEN,MXC,SA

 2
88718-97209

F65#..GCC,GEN,MXC,SA

 2
87246X - HOSE, HEATER WATER
87246-BZ130

F65#..GCC,GEN,MXC,SA

 1
87246-BZ130

F65#..GCC,GEN,MXC,SA

 1
