Toyota Avanza F654 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
US
AVANZA
F654RM-GMMFN (2015)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999

Engine 2NRVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1111-1904)MA,SA,TH ; (1111-1904)F653..LO..GEN

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-BZ140	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	08/2015 - 04/2019	1
55086-BZ140	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55950-BZ110	F65#..GCC,GEN,MXC,SA	08/2015 - 04/2019	1
55950-BZ110	F65#..GCC,GEN,MXC,SA	04/2019 - 12/2999	1
87220 - DUCT ASSY, AIR
87220-BZ291	F653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)	03/2018 - 04/2019	1
87220-BZ291	F65#..RHD	01/2019 - 12/2999	1
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
Common parts
90041-19175
9004A-11342
9004A-16036

ILLUST NO. 1 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

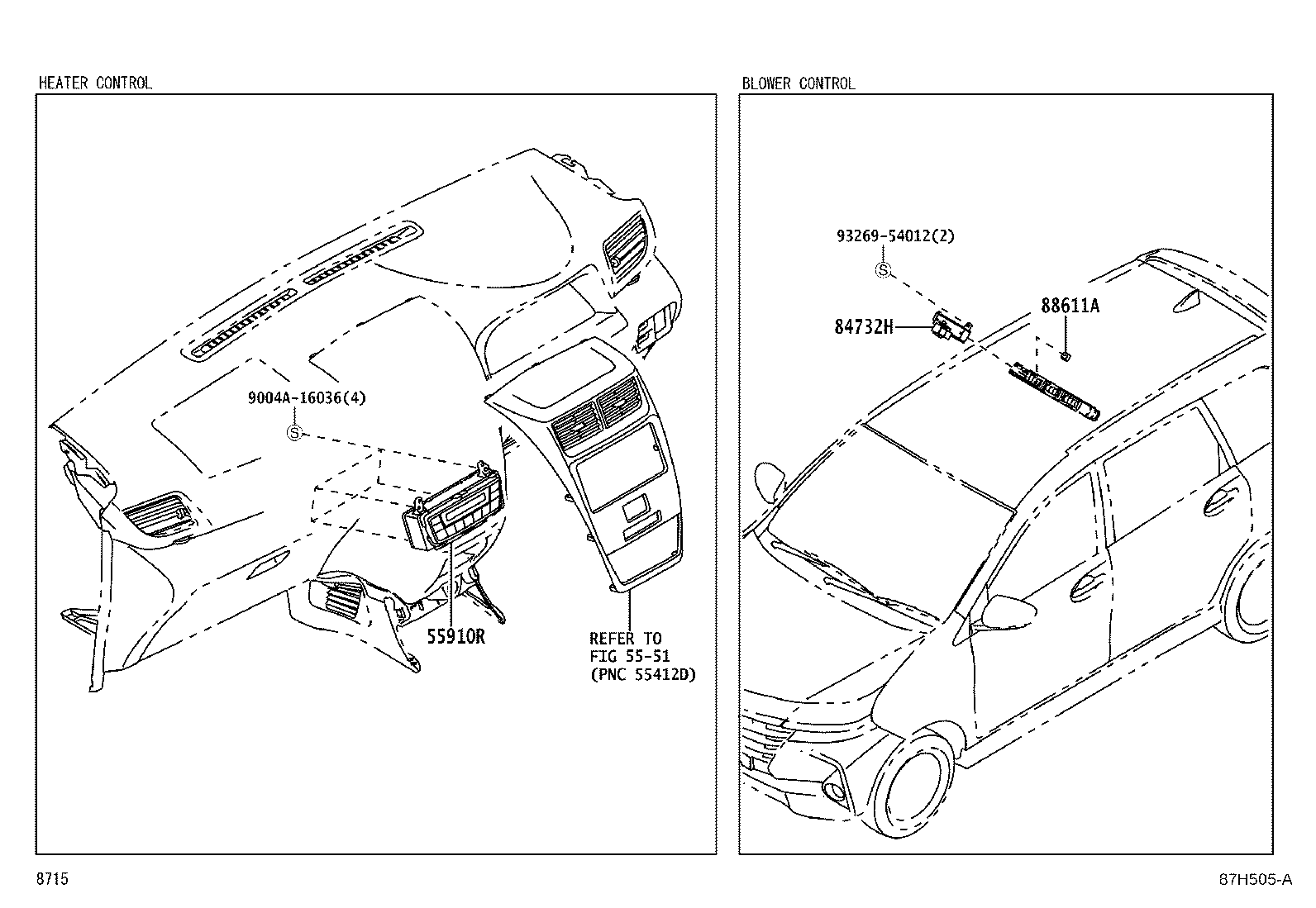

CONTROL PANEL

Part #	Description	Period	Qty
55910R - CONTROL ASSY, HEATER
55910-BZ660	F653..LO..GEN;F65#..(MID,STD)..(GCC,GEN,MXC,SA)	04/2019 - 12/2999	1
55910-BZ342C1	F65#..SA BLACK,TRIM1#	08/2015 - 04/2019	1
84732H - SWITCH, HEATER BLOWER
88470-BZ050	F654..MID..(GEN,SA);F65#..GCC,IDN,MA,PHL,TH	01/2019 - 12/2999	1
88611A - KNOB, COOLER CONTROL SWITCH
88611-BZ080B0	F653..STD..PHL;F654..MID..(SA,TH);F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,PHL,TH) LT.GRAY,TRIM1#	01/2019 - 12/2999	1
Common parts
9004A-16036
93269-54012
Linked diagrams
5551

ILLUST NO. 2 OF 2(1901- )IDN ; (1904- )GCC,GEN,MA,MXC,PHL,SA,TH

Click highlighted areas on diagram

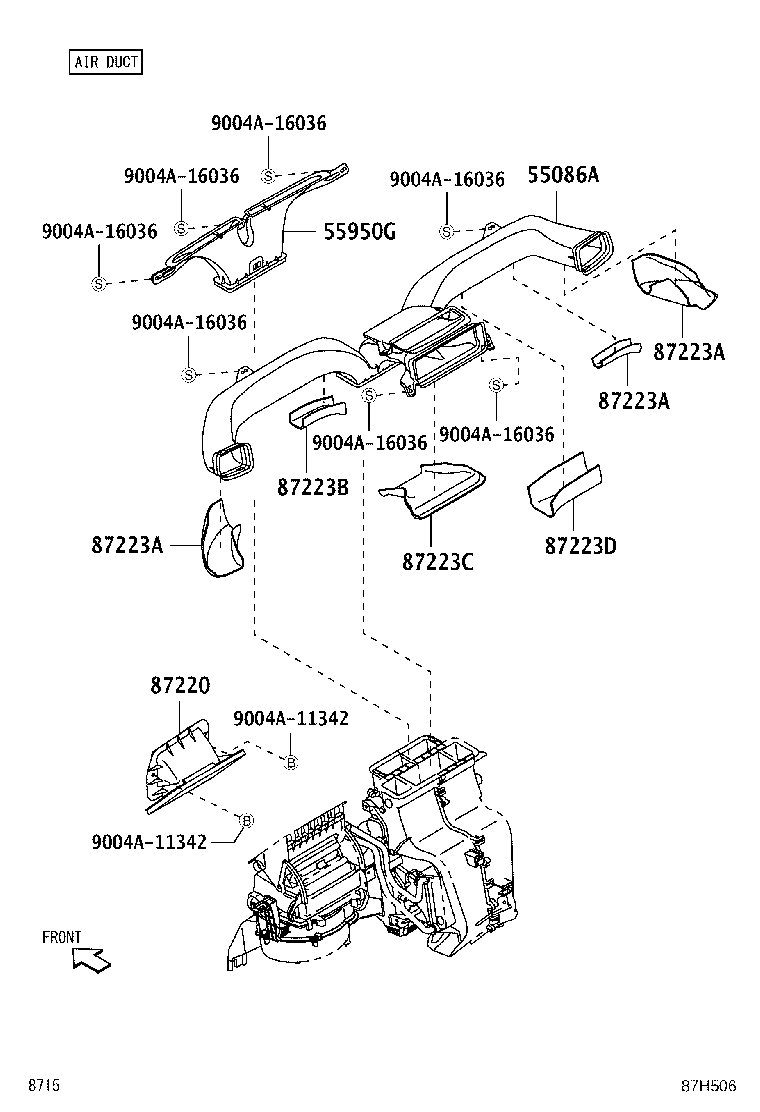

AIR DUCT

Part #	Description	Period	Qty
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-BZ140	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	08/2015 - 04/2019	1
55086-BZ140	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55950-BZ110	F65#..GCC,GEN,MXC,SA	08/2015 - 04/2019	1
55950-BZ110	F65#..GCC,GEN,MXC,SA	04/2019 - 12/2999	1
87220 - DUCT ASSY, AIR
87220-BZ291	F653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)	03/2018 - 04/2019	1
87220-BZ291	F65#..RHD	01/2019 - 12/2999	1
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223A - PAD, AIR DUCT
87223-BZ100	F653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA) NO.1	08/2015 - 04/2019	1
87223-BZ110	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	3
87223B - PAD, AIR DUCT, NO.2
87223-BZ540	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	1
87223C - PAD, AIR DUCT, NO.3
87223-BZ100	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	1
87223D - PAD, AIR DUCT, NO.4
87223-BZ600	F65#..GCC,GEN,MA,MXC,PHL,SA,TH	04/2019 - 12/2999	1
Common parts
9004A-11342
9004A-16036
