F654RM-GMMFN (2015)
Toyota Avanza
Production
Aug 2015
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(1111-1904)SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ270 |
F65#..SA |
1 | ||
| 87010-BZ550 |
F65#..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-BZ070 |
F65#..SA |
1 | ||
| 87107-BZ070 |
F65#..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ140 |
F65# |
1 | ||
| 87296B - LEVER, HEATER AIR DAMPER CONTROL | ||||
| 87296-BZ080 |
F65#..SA |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ080 |
F65#..SA |
1 | ||
| 88501-BZ250 |
F65#..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ050 |
F65#..GEN,MXC,PHL,SA |
1 | ||
| 88515-BZ050 |
F65#..PHL,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..RHD |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B4010 |
F65#..SA |
1 | ||
| 87103-52121 |
F65#..SA |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 9004C-33001 |
F65#..GCC,SA |
1 | ||
| 88569G - CLAMP | ||||
| 88888-BZ010 |
F65#..GCC,GEN,MXC,SA |
3 | ||
| 88569H - CLAMP | ||||
| 88898-B4030 |
F65#..GCC,GEN,MXC,SA |
1 | ||
| 88898-B4030 |
F65#..GCC,SA |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ570 |
F65#..RHD |
1 | ||
| 88613A - LEVER, COOLER CONTROL, NO.1 | ||||
| 88613-BZ060 |
F65#..SA |
2 | ||
| 88613A - LEVER, COOLER CONTROL, NO.1 | ||||
| 88613-BZ060 |
F65#..SA |
2 | ||
| 88613B - LEVER, COOLER CONTROL, NO.2 | ||||
| 88613-BZ070 |
F65#..SA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ060 |
F65#..RHD |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 81128-B2010 | ||||
| 9004B-72003 | ||||
| 9004C-16004 | ||||

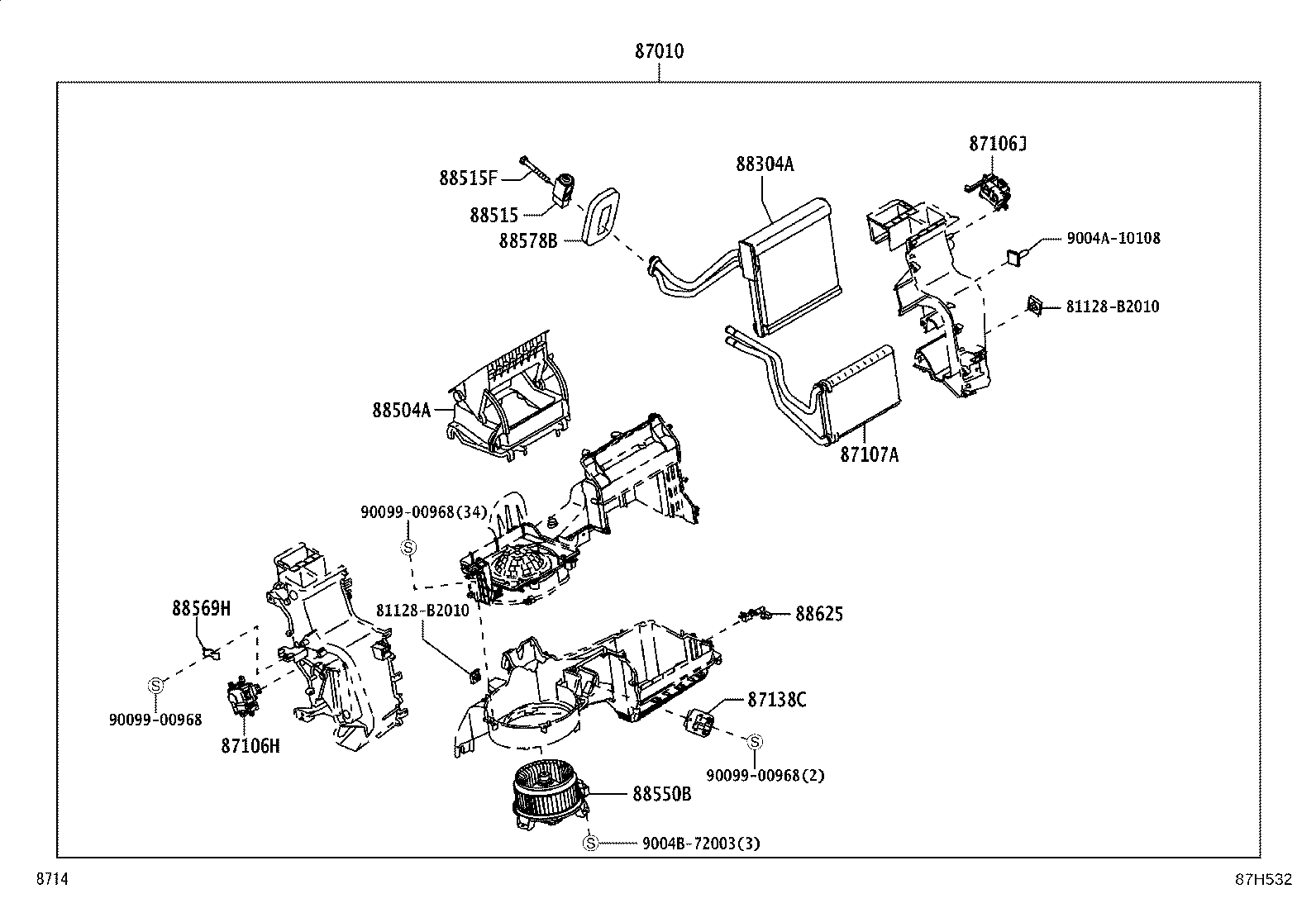

ILLUST NO. 2 OF 3(1904- )SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ270 |
F65#..SA |
1 | ||
| 87010-BZ550 |
F65#..SA |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 88660-BZ030 |
F65#..SA |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 88660-BZ020 |
F65#..GCC,GEN,MXC,SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-BZ070 |
F65#..SA |
1 | ||
| 87107-BZ070 |
F65#..SA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ140 |
F65# |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88304-BZ080 |
F65#..SA |
1 | ||
| 88501-BZ250 |
F65#..SA |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87103-BZ150 |
F65#..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ050 |
F65#..GEN,MXC,PHL,SA |
1 | ||
| 88515-BZ050 |
F65#..PHL,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F65#..RHD |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B4010 |
F65#..SA |
1 | ||
| 87103-52121 |
F65#..SA |
1 | ||
| 88569H - CLAMP | ||||
| 88898-B4030 |
F65#..GCC,GEN,MXC,SA |
1 | ||
| 88898-B4030 |
F65#..GCC,SA |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ570 |
F65#..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ060 |
F65#..RHD |
1 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||
