F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )IDN ; (1904- )MID..SA ; (1904-)STD..PHL ; (1904- )F653..MID..G

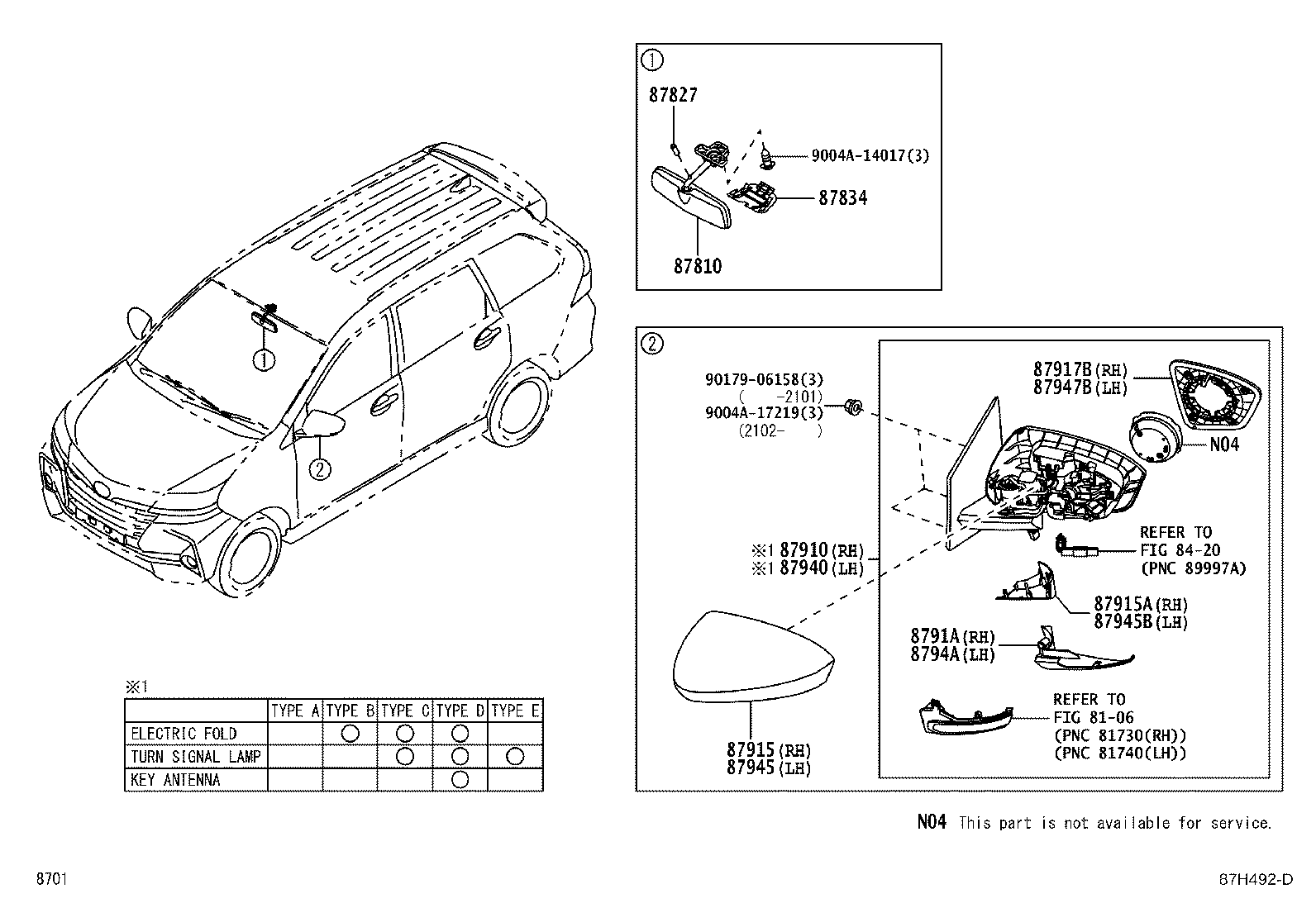

Click highlighted areas on diagram

diagram 8106 8420 87810 87827 87834 87910 87915 87915A 87917B 8791A 87940 87945 87945B 87947B 8794A 9004A14017 9004A17219 9017906158
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-BZ080

F653..GEN,SA;F653..STD..PHL;F654..MID..GCC;F654..GEN,MA,MXC,PHL,SA,TH

 1
87810-BZ080

F653..STD..PHL;F654..MID..GCC;F653..GEN,MA,SA;F654..GEN,MA,MXC,PHL,SA,TH

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-BZ010

F65#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-BZ051B1

F653..SPO;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA,TH)

LT.GRAY,TRIM1#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-BZB20

F654..MID..SA;F653..STD..IDN;F654..4AT..STD..TH

TYPE A

 1
87915 - COVER, OUTER MIRROR, RH
87915-BZ520

F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL)

 1
87915A - COVER, OUTER MIRROR, RH
8791B-BZ020

F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL)

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-BZ180

F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL)

 1
8791A - COVER, OUTER MIRROR, RH NO.2
8791A-BZ020

F653..MID..GEN;F654..LHD..5F..STD;F654..MID..(MXC,SA);F653..STD..(IDN,PHL);F654..4AT..STD..(GCC,TH)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-BZD50

F654..MID..SA;F653..STD..IDN;F654..4AT..STD..TH

TYPE A

 1
87945 - COVER, OUTER MIRROR, LH
87945-BZ530

F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL)

 1
87945B - COVER, OUTER MIRROR, LH
8794B-BZ020

F653..MID..GEN;F654..4AT..STD..TH;F653..(MID,SPO,STD)..(IDN,PHL);F654..MID..(GCC,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL)

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-BZ180

F653..MID..GEN;F654..4AT..STD..TH;F654..MID..(IDN,MXC,PHL,SA,TH);F653..(MID,SPO,STD)..(IDN,PHL);F654..(SPO,STD)..(GEN,IDN,MA,PHL)

 1
8794A - COVER, OUTER MIRROR, LH NO.2
8794A-BZ020

F653..MID..GEN;F654..LHD..5F..STD;F654..MID..(MXC,SA);F653..STD..(IDN,PHL);F654..4AT..STD..(GCC,TH)

 1
Common parts
9004A-14017
9004A-17219
90179-06158
Linked diagrams
8106
8420
