F654RM-GMMFN (2015)

Toyota Avanza

Production Aug 2015 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )F653..MID..IDN ; (1901- )F654..4AT..IDN ; (1904- )4AT..MXC ; (1904

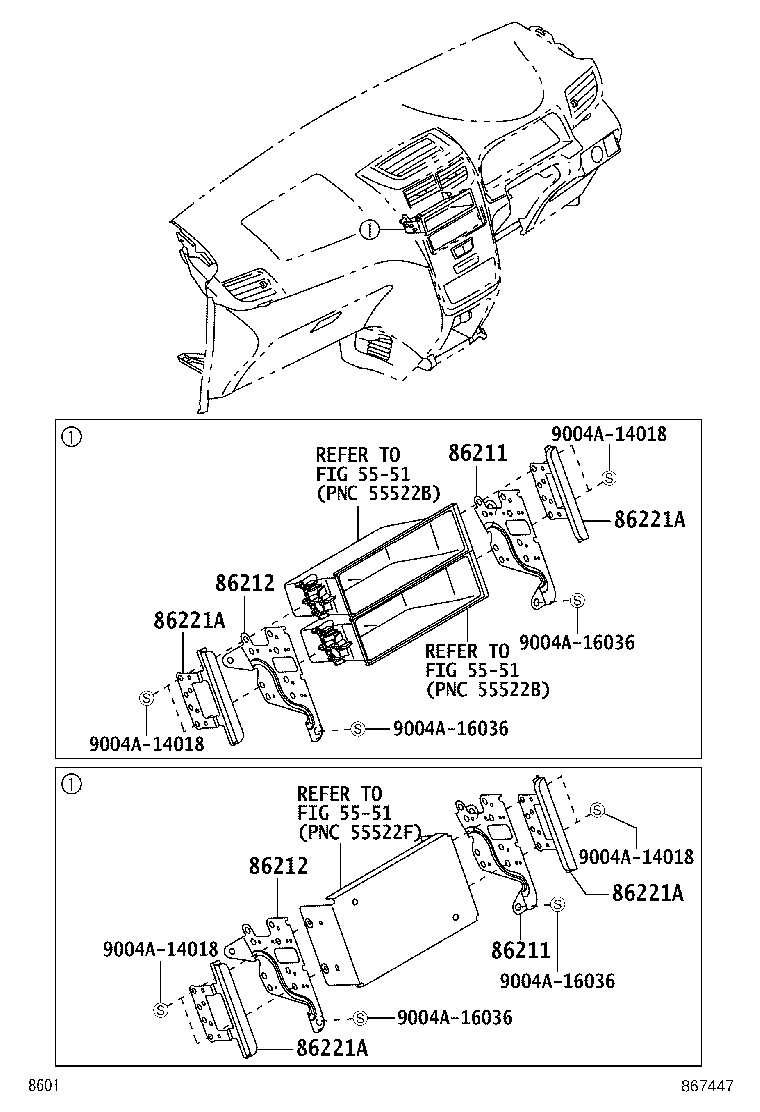

Click highlighted areas on diagram

diagram 5551 86120 86180 86190C 86203 86211 86211 86212 86212 86221A 86221A 9004A14018 9004A14018 9004A14018 9004A14018 9004A14018 9004A14018 9004A16036 9004A16036 9004A16036 9004A16036
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-BZ190

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86180 - TUNER ASSY, STEREO COMPONENT
86180-BZ440B0

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

PANASONIC,SILVER

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-BZ030

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86203 - WIRE, RADIO
86203-B0030

F654..MID..SA

 1
86211 - BRACKET, RADIO, NO.1
86211-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86211-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86211 - BRACKET, RADIO, NO.1
86211-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86211-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
Common parts
9004A-14018
9004A-16036
Linked diagrams
5551

(1901- )IDN ; (1904- )F653..SA ; (1904-)F653..4AT..PHL ; (1904- )LO,MI

Click highlighted areas on diagram

diagram 5551 5551 5551 86211 86211 86212 86212 86221A 86221A 86221A 86221A 9004A14018 9004A14018 9004A14018 9004A14018 9004A16036 9004A16036 9004A16036 9004A16036
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86211-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86211 - BRACKET, RADIO, NO.1
86211-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86211-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
86212 - BRACKET, RADIO, NO.2
86212-BZ300

F654..4AT..STD..TH;F653..GEN,IDN,PHL,SA;F654..MID..(GCC,GEN,IDN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,IDN,MA,PHL,SA)

 1
86212-BZ160

F654..STD..GCC;F654..MID..(GCC,GEN,SA)

 1
Common parts
9004A-14018
9004A-16036
Linked diagrams
5551
